Profile Planking

Tolplan N

Tolplan N is designed for applications where a slip resistance classification of R9 is sufficient.

Your contact persons

Its large downward-facing perforations provide excellent drainage and air circulation, making it particularly suitable for façade systems and shelving applications.

Here you'll find the right contact person for Gratings

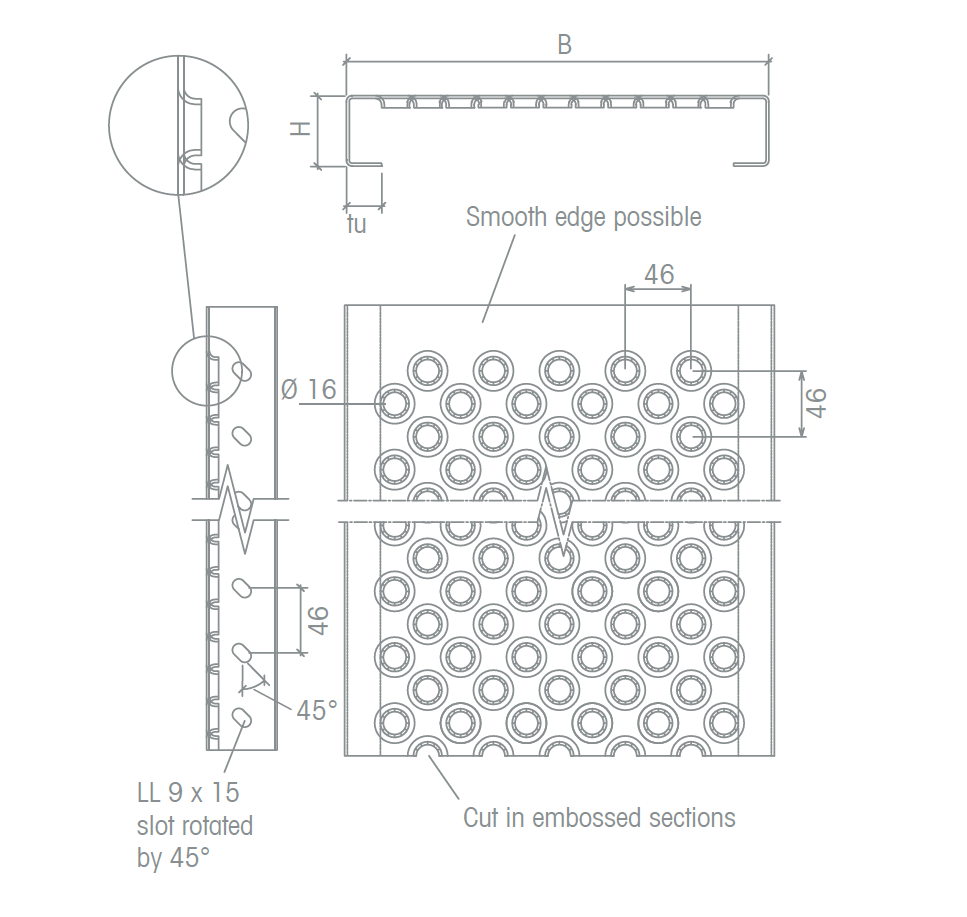

Dimensions

Special sizes or special material on request. Available dimensions according to stock program.

All dimensions in mm.

* Produced in France.

Material	Sheet thickness	Rating
Raw steel / hot-dip galvanized [DD11]	2,0 / 2,5 / 3,0	R9
Sendzimir galvanized steel [DX51]	2,0 / 2,5 / 3,0	R9
Aluminum [AIMg3]	2,5 / 3,0	R9
Stainless steel [AISI 304L]	2,0	R9

Preferred widths	180 / 240 / 300 / 330 / 360 variable
Preferred heights	50 / 75 / 100 / other heights on request
Lengths	max. 6,030 mm
Length divider	46

Matching accessories

Attachments for Tolplan N

MEISER: BPR Screw connection — MEISER - BPR Screw connection

BPR Screw connection

Hexagon bolt M8 x 20 with washers and self-locking nut.

MEISER: BPR Universal clamp — MEISER - BPR Universal clamp

BPR Universal clamp

Cast iron clamp for mounting from below, available in different versions.

MEISER: BPR Cast metal washer with countersunk hole — MEISER - BPR Cast metal washer with countersunk hole

BPR Cast metal washer with countersunk hole

Upper fixing part for Formstep N and Formstep 06, all Stepclair and Airstep molds.

MEISER: BPR Plastic grommet with countersunk hole — MEISER - BPR Plastic grommet with countersunk hole

BPR Plastic grommet with countersunk hole

Mounting top for all Stepclair and Airstep shapes.

MEISER: BPR Fast fixing — MEISER - BPR Fast fixing

BPR Fast fixing

Clamp connection with countersunk head screw M8.

MEISER: BPR Flange — MEISER - BPR Flange

BPR Flange

Clamp connection with cage nut and countersunk head screw M8.

MEISER: BPR Hook fastening — MEISER - BPR Hook fastening

BPR Hook fastening

With countersunk head screw; hook pressed with sleeve.
