Tolpicot N
Gratings: Profile Planking: Tolpicot N

Profile Planking

Tolpicot N

Tolpicot N provides the same benefits as Aderstep N while incorporating additional serration for enhanced slip resistance.

Find a contact person Gratings

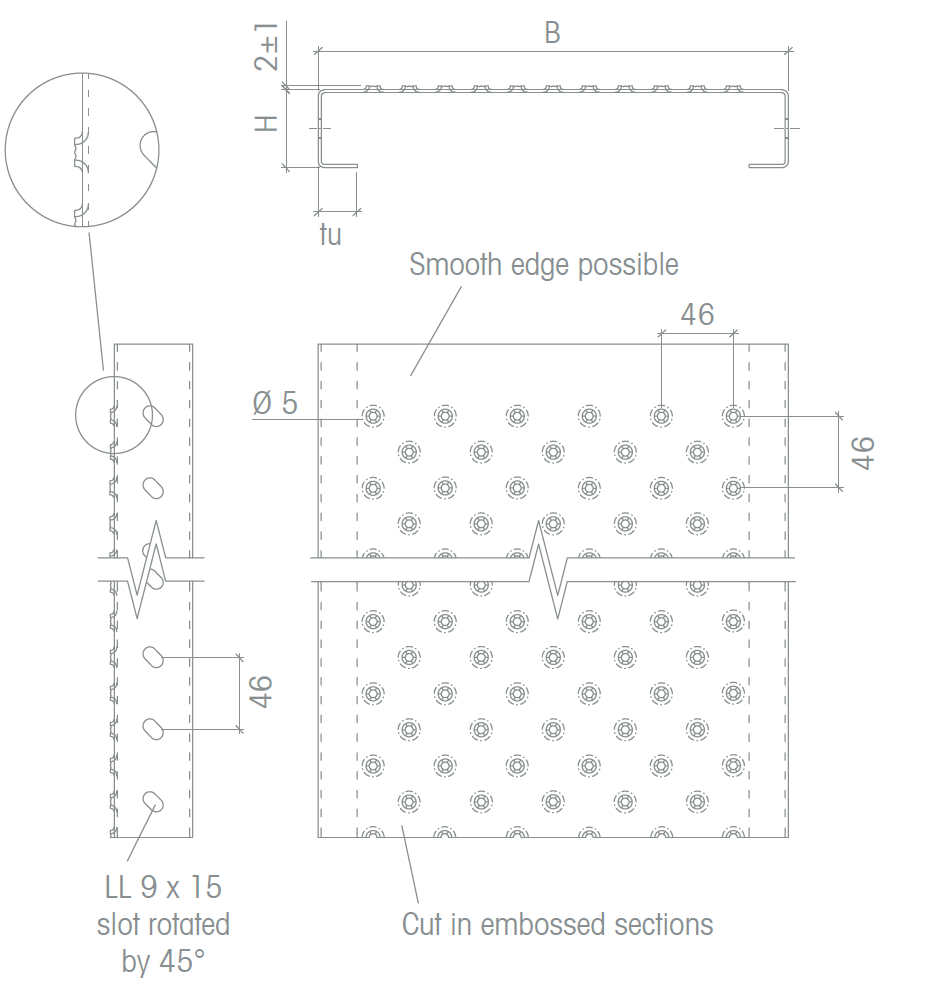

Dimensions

Special sizes or special material on request. Available dimensions according to stock program.

All dimensions in mm.

* Manufactured in France.

MaterialSheet thicknessRating RH
Raw steel / hot-dip galvanized [DD11]2,0 / 2,5 / 3,0R12
Sendzimir galvanized steel [DX51]2,0 / 2,5 / 3,0R12
Aluminum [AIMg3]2,5 / 3,0R12
Stainless steel [AISI 304L]2,0R12
Preferred widths180 / 240 / 300 / 330 / 360 variable
Preferred heights50 / 75 / 100 / other heights on request
Lengthsmax. 6,030 mm
Length divider46

Matching accessories

Attachments for Tolpicot N

Inspiration & Projekte: BPR Screw connection

BPR Screw connection

Hexagon bolt M8 x 20 with washers and self-locking nut.

Inspiration & Projekte: BPR Universal clamp

BPR Universal clamp

Cast iron clamp for mounting from below, available in different versions.
