Profile Planking
Tolgrip N
The large upward-embossed perforations provide Tolgrip N with exceptionally high slip resistance.
Your contact persons GratingsIt is primarily used for industrial walkways and working platforms in indoor environments.

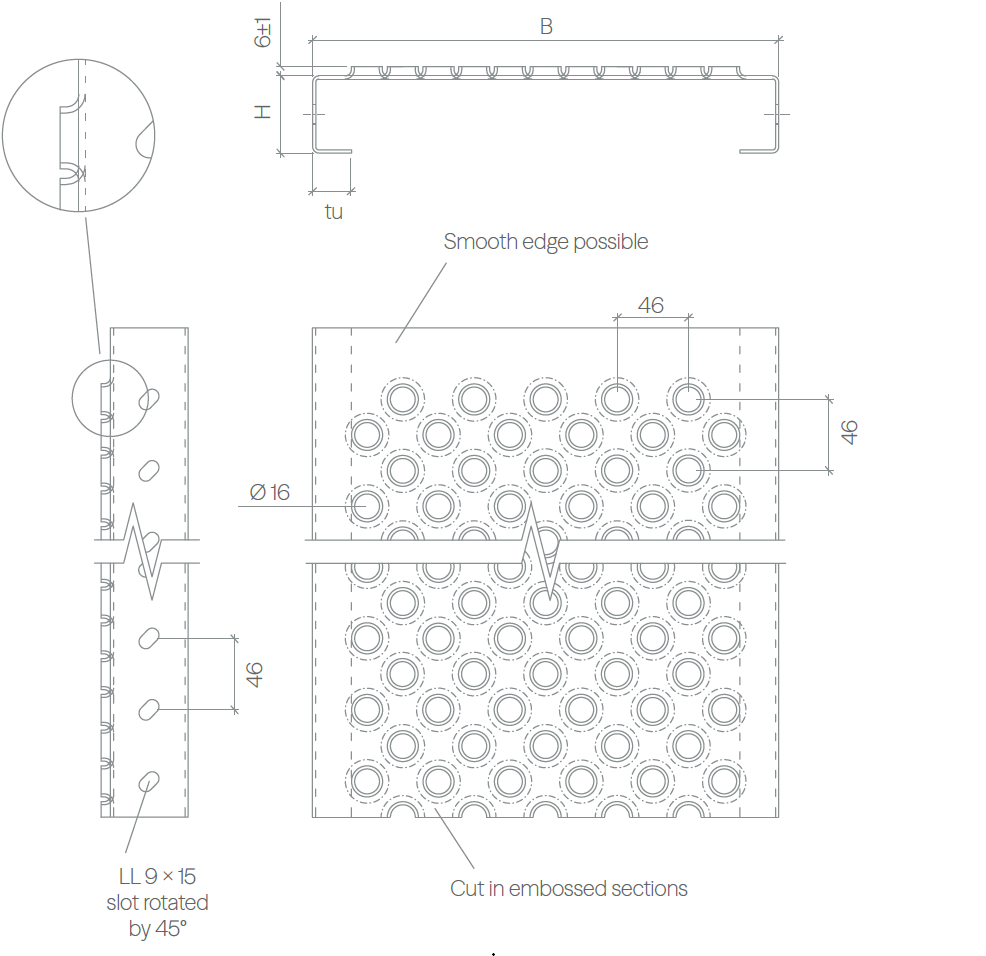

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
* Produced in France.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R13 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R13 |
| Aluminum [AIMg3] | 2,5 / 3,0 | R13 |
| Stainless steel [AISI 304L] | 2,0 | R13 |
| Preferred widths | 180 / 240 / 300 / 330 / 360 / variable | |
| Preferred heights | 50 / 75 / 100 / other heights on request | |
| Lengths | max. 6.002 mm | |
| Length divider | 46 |
Matching accessories
Attachments for Tolgrip N
BPR Universal clamp
Cast iron clamp for mounting from below, available in different versions.
BPR Fast fixing
Clamp connection with countersunk head screw M8.
BPR Flange
Clamp connection with cage nut and countersunk head screw M8.
