Profile Planking

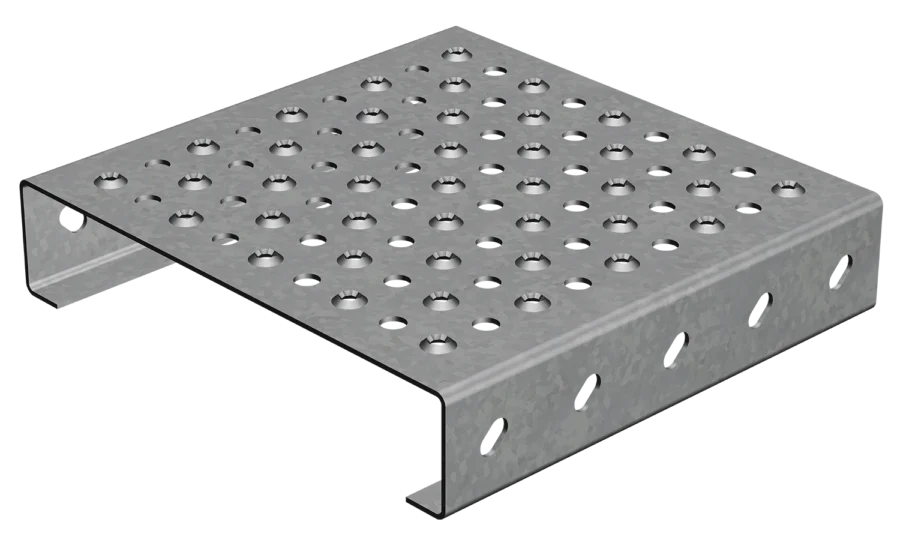

Toldeco 10
Toldeco 10 offers the same functional advantages as Toldeco 8, while the larger 10 mm drainage holes provide even more efficient liquid drainage.
Your contact persons GratingsThe combination of upward-embossed perforations and serration delivers reliable slip resistance, making this profile ideal for indoor and outdoor stairways, landings and walkways.

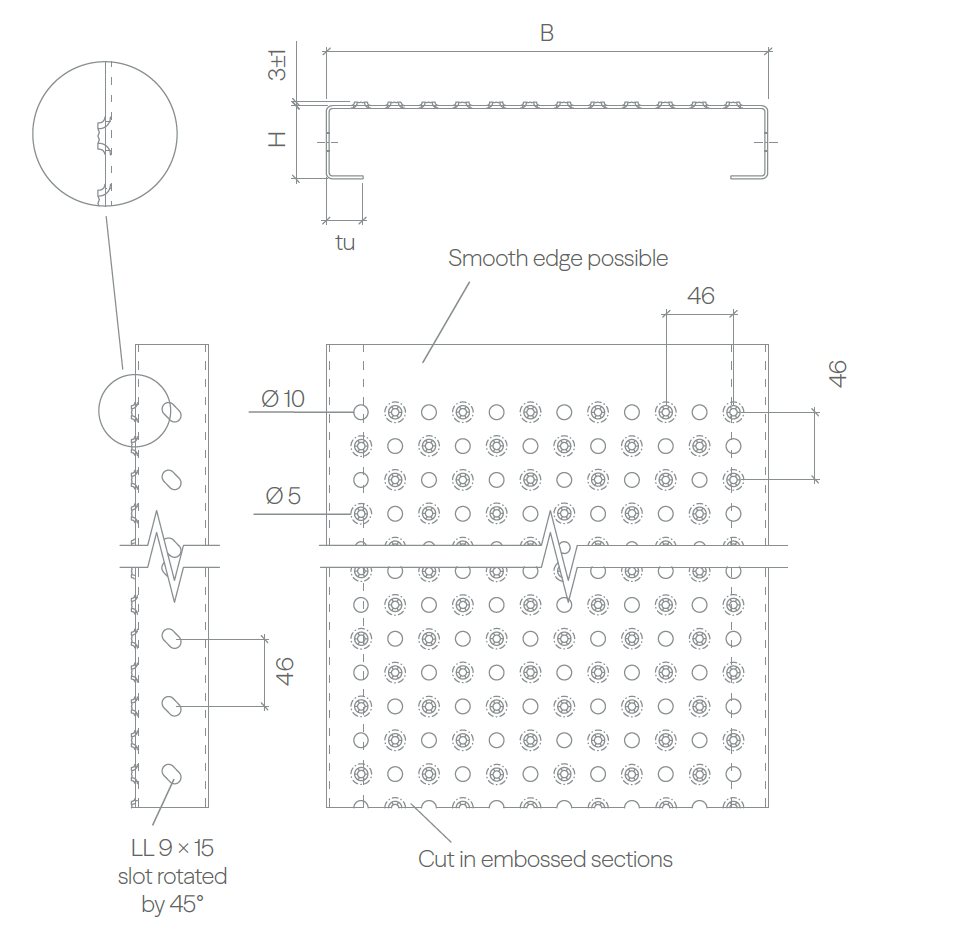

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
* Produced in France.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R11 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R11 |
| Aluminum [AIMg3] | 2,5 / 3,0 | R11 |
| Stainless steel [AISI 304L] | 2,0 | R11 |
| Preferred widths | 180 / 240 / 300 / 330 / 356 variable | |
| Preferred heights | 50 / 75 / 100 / other heights on request | |
| Lengths | max. 6,030 mm | |
| Length divider | 46 |
Matching accessories
Attachments for Toldeco 10
BPR Universal clamp
Cast iron clamp for mounting from below, available in different versions.
BPR Fast fixing
Clamp connection with countersunk head screw M8.
BPR Flange
Clamp connection with cage nut and countersunk head screw M8.
