BPR Setting technology closed surfaces
Including a hole of ∅ 13mm in the profile.
Profile Planking
Tolhuit N
Tolhuit N features small upper perforations and larger lower openings.
Your contact persons GratingsAdditional serration provides reliable slip resistance, making it suitable for stairways, landings and walkways in both indoor and outdoor environments.

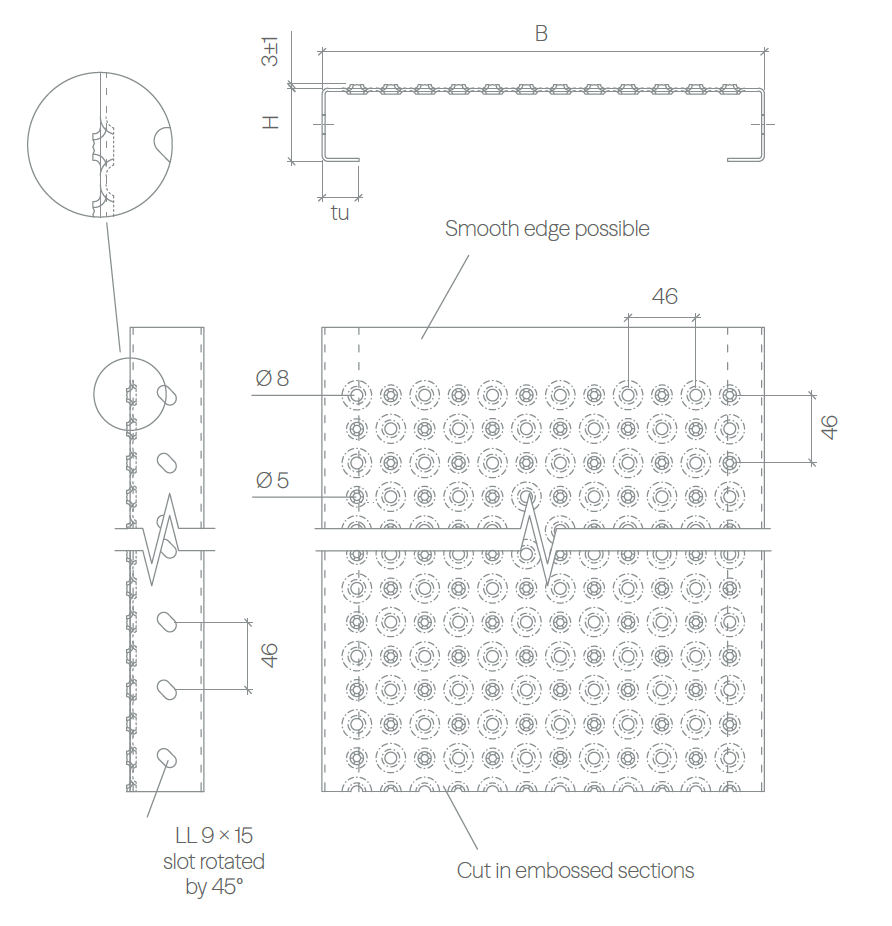

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
*Produced in France.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R12 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R12 |
| Aluminum [AIMg3] | 2,5 / 3,0 | R12 |
| Stainless steel [1.4301] | 2,0 | R12 |
| Preferred widths | 180 / 240 / 300 / 330 / variable | |
| Preferred heights | 40 / 50 / 75 / 100 / other heights on request | |
| Lengths | max. 6,030 mm | |
| Length divider | 46 |
Matching accessories
Attachments for Tolhuit N
BPR Screw connection
Hexagon bolt M8 x 20 with washers and self-locking nut.
BPR Fast fixing
Clamp connection with countersunk head screw M8.
BPR Flange
Clamp connection with cage nut and countersunk head screw M8.
