Profile Planking

Tolmixte N

Tolmixte N offers the same performance characteristics as Stepclair N, with the added benefit of serrated upward-facing perforations for enhanced slip resistance.

Your contact persons

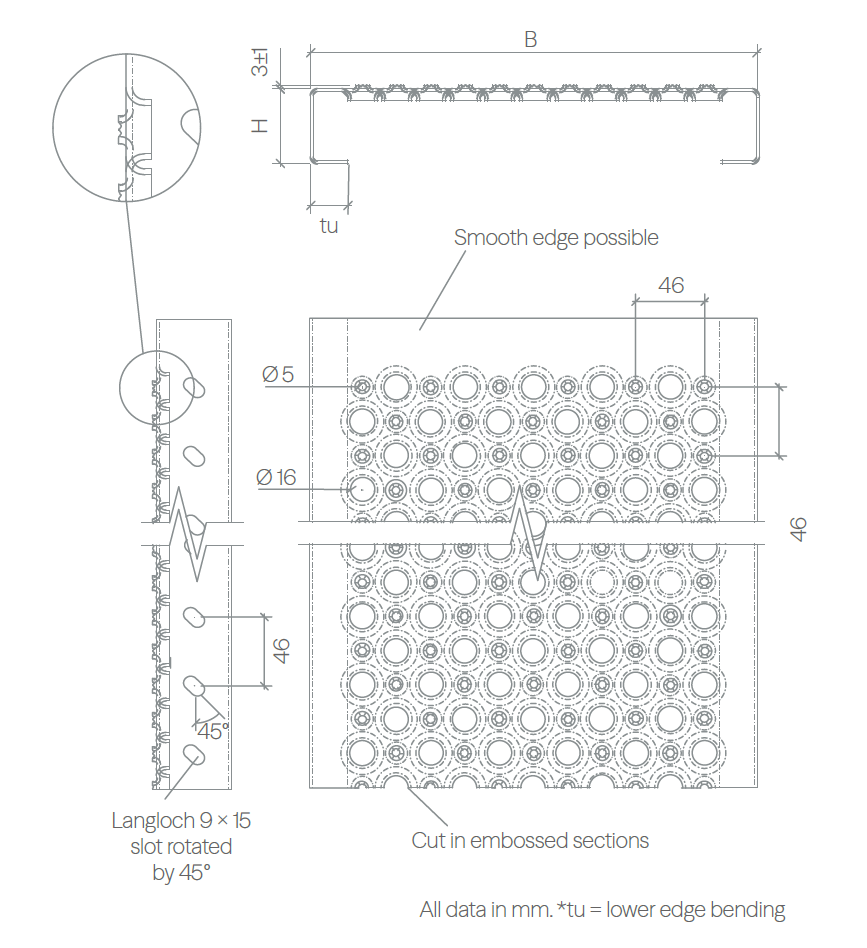

Dimensions

*Manufactured in France

Material	Sheet thickness	Rating RH
Raw steel / hot-dip galvanized [DD11]	2,0 / 2,5 / 3,0	R12
Sendzimir galvanized steel [DX51]	2,0 / 2,5 / 3,0	R12
Aluminum [AIMg3]	2,5 / 3,0	R12
Stainless steel [1.4301]	2,0

Preferred widths	182 / 240 / 298 / 330
Preferred heights	40 / 50 / 75 / 100 / other heights on request
Lengths	max. 6,030 mm
Length divider	46

Matching accessories

Attachments for Tolmixte N

MEISER: BPR Screw connection — MEISER - BPR Screw connection

BPR Screw connection

Hexagon bolt M8 x 20 with washers and self-locking nut.

MEISER: BPR Universal clamp — MEISER - BPR Universal clamp

BPR Universal clamp

Cast iron clamp for mounting from below, available in different versions.

MEISER: BPR Cast metal washer with countersunk hole — MEISER - BPR Cast metal washer with countersunk hole

BPR Cast metal washer with countersunk hole

Upper fixing part for Formstep N and Formstep 06, all Stepclair and Airstep molds.

MEISER: BPR Plastic grommet with countersunk hole — MEISER - BPR Plastic grommet with countersunk hole

BPR Plastic grommet with countersunk hole

Mounting top for all Stepclair and Airstep shapes.

MEISER: BPR Hook fastening — MEISER - BPR Hook fastening

BPR Hook fastening

With countersunk head screw; hook pressed with sleeve.

MEISER: BPR Fast fixing — MEISER - BPR Fast fixing

BPR Fast fixing

Clamp connection with countersunk head screw M8.

MEISER: BPR Flange — MEISER - BPR Flange

BPR Flange

Clamp connection with cage nut and countersunk head screw M8.
