BPR Screw connection
Hexagon bolt M8 x 20 with washers and self-locking nut.
Profile Planking

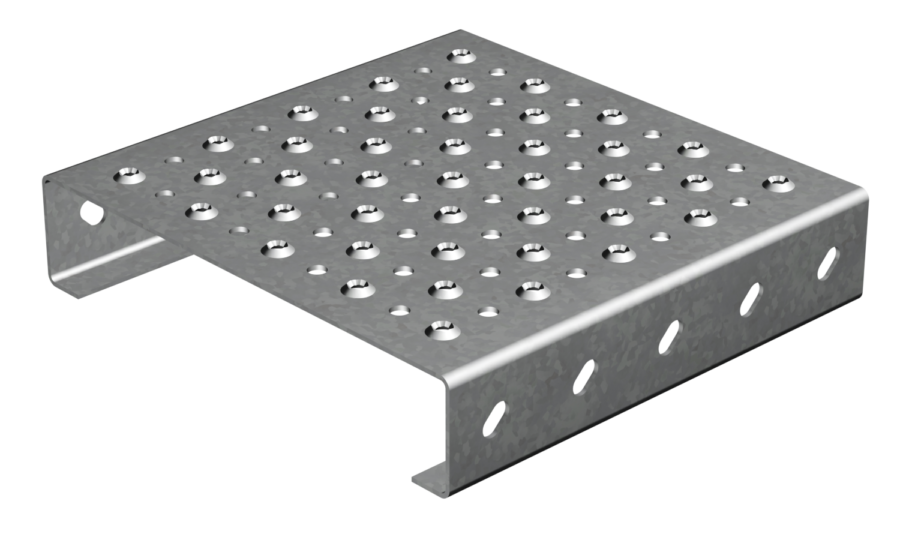

Toldeco 8
Toldeco 8 features small, upward-embossed perforations with additional serration to provide excellent slip resistance.
Your contact persons GratingsAdditional 8 mm drainage holes allow liquids to drain efficiently, making the profile suitable for stairways, landings and walkways in both indoor and outdoor applications.

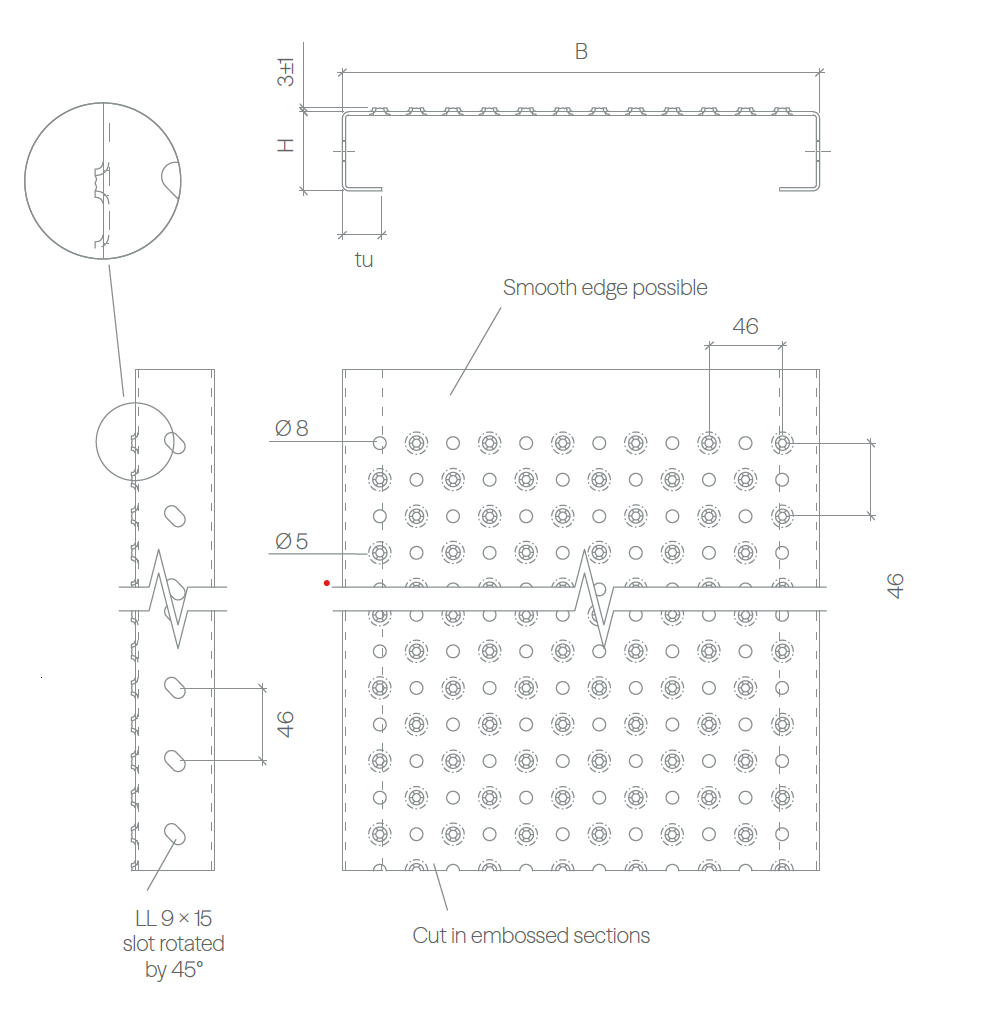

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
* Produced in France
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R11 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R11 |
| Aluminum [AIMg3] | 2,0 / 3,0 | R11 |
| Stainless steel [AISI 304L] | 2,0 | R11 |
| Preferred widths | 180 / 240 / 300 / 330 / 356 variable | |
| Preferred heights | 50 / 75 / 100 / other heights on request | |
| Lengths | max. 6,030 mm | |
| Length divider | 46 |
Matching accessories
Attachments for Toldeco 8
BPR Universal clamp
Cast iron clamp for mounting from below, available in different versions.
BPR Fast fixing
Clamp connection with countersunk head screw M8.
BPR Flange
Clamp connection with cage nut and countersunk head screw M8.
