Profile Planking
Toltop N
Toltop N combines reliable slip resistance with a nearly closed surface that prevents small objects from falling through.
Your contact persons GratingsIt provides safe and comfortable access for elevated working areas and is particularly suitable for industrial and public indoor applications.

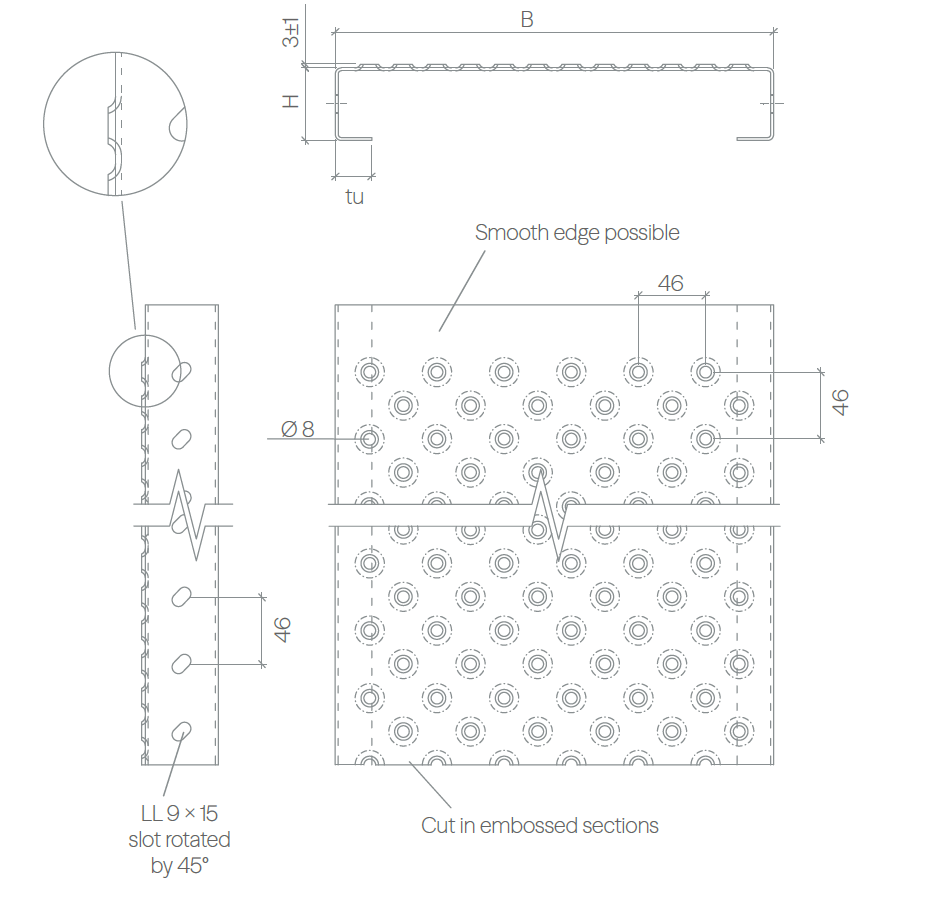

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | - |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | - |
| Aluminum [AIMg3] | 2,5 / 3,0 | - |
| Stainless steel [AISI 304L] | 2,0 | - |
| Preferred widths | 180 / 240 / 300 | |
| Preferred heights | 50 / 75 / 100 / other heights on request | |
| Lengths | max. 4.002 mm | |
| Length divider | 46 |
