Formstep O7
Formstep O7 combines two different perforation patterns to maximise functionality.
Your contact persons GratingsLarge upward-embossed perforations provide excellent slip resistance, while smaller punched openings allow liquids to drain away and dust to fall through.
This combination makes Formstep O7 suitable for both indoor and outdoor applications, including stairways, landings and walkways.

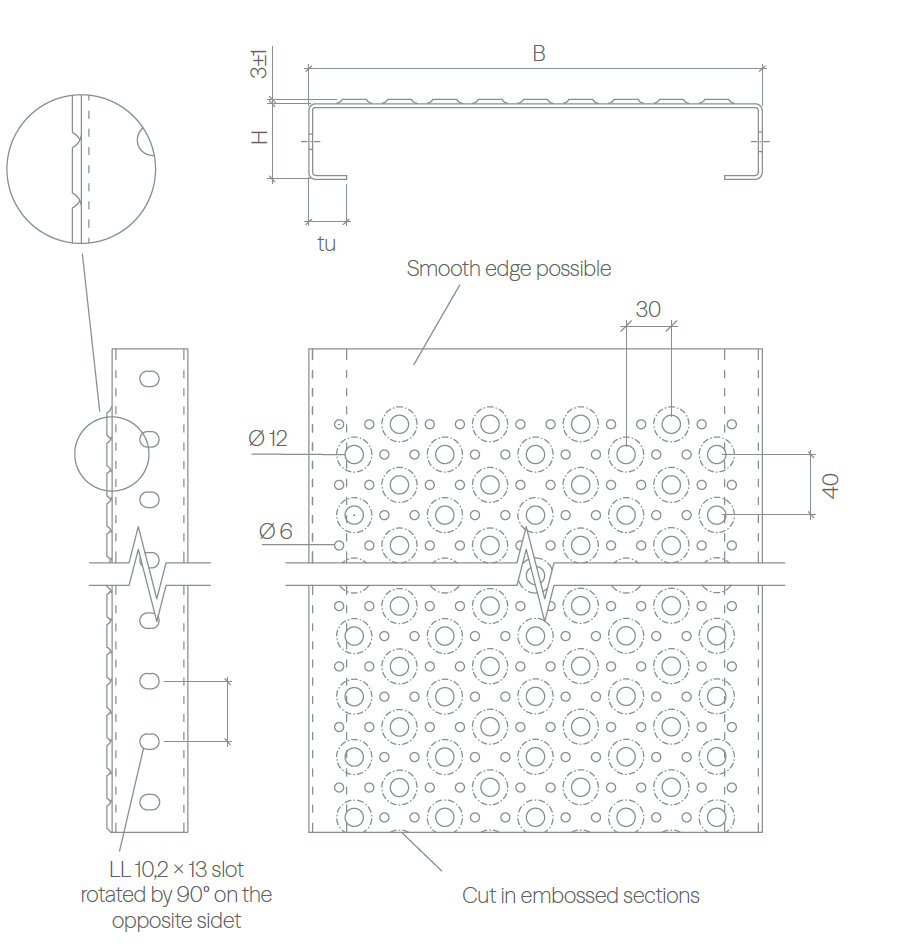

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
| Material | Sheet thickness | Rating |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | RH13 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | RH13 |
| Aluminum [AIMg3] | 2,5 / 3,0 | - |
| Stainless steel [1.4301] | 2,0 | RH13 |
| Preferred widths | 120 / 180 / 240 / 300 / 360 variable | |
| Preferred heights | 40 / 50 / 75 / 100 / other heights on request | |
| Lengths | max. 6,000 mm | |
| Length divider | 40 |
Matching accessories
Attachments for Formstep O7
BPR Universal clamp
Cast iron clamp for mounting from below, available in different versions.
BPR Fast fixing
Clamp connection with countersunk head screw M8.
BPR Flange
Clamp connection with cage nut and countersunk head screw M8.
