Profile Planking
Formstep O6
Formstep O6 features a smooth surface combined with excellent light transmission.
Your contact persons GratingsIt is particularly suitable for warehouse shelving applications where trolleys must move smoothly. Dust can pass through the perforations while natural ventilation is maintained. Rubber inserts can also be incorporated where required.

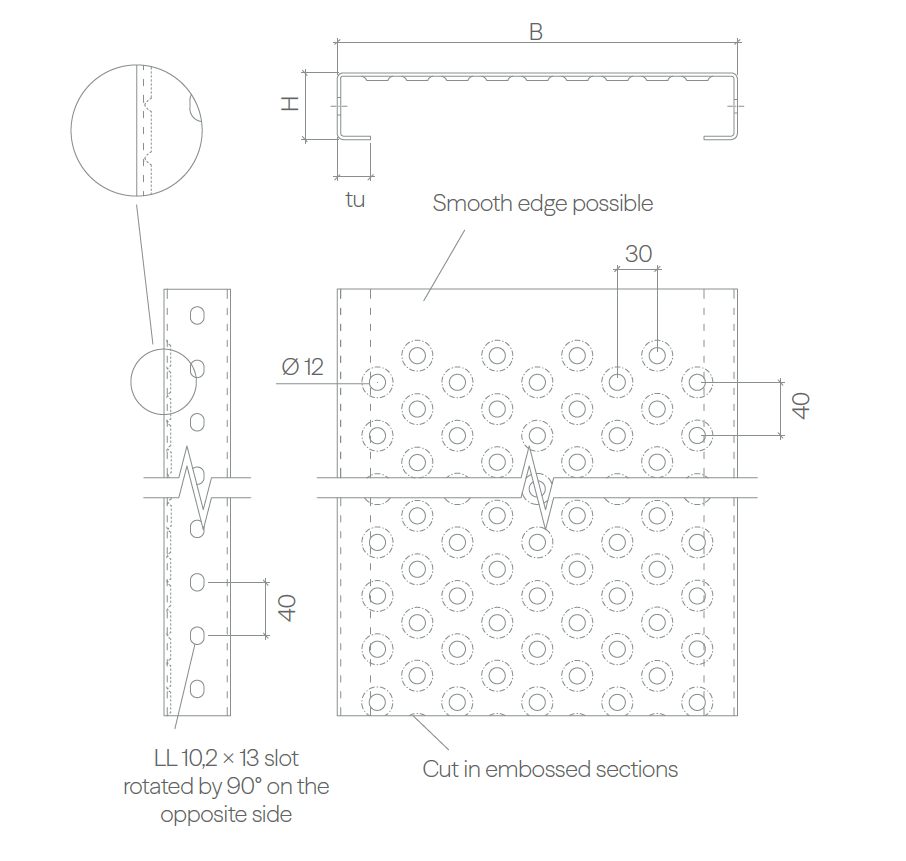

Dimensions
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | - |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | - |
| Aluminum [AIMg3] | 2,5 / 3,0 | - |
| Stainless steel [1.4301] | 2,0 | - |
| Preferred widths | 120 / 180 / 240 / 300 / 360 variable | |
| Preferred heights | 40 / 50 / 75 / 100 other heights on request | |
| Lengths | max. 6,000 mm | |
| Length divider | 40 |
Matching accessories
Attachments for Formstep O6
BPR Universal clamp
Cast iron clamp for mounting from below, available in different versions.
BPR Fast fixing
Clamp connection with countersunk head screw M8.
