Airstep N
Airstep N features an attractive circular perforation pattern that makes it particularly suitable for architectural applications such as façade cladding and solar shading systems.
Your contact persons GratingsIt is also ideal for shelving systems where efficient air circulation and light transmission are required while maintaining a comparatively smooth walking surface.

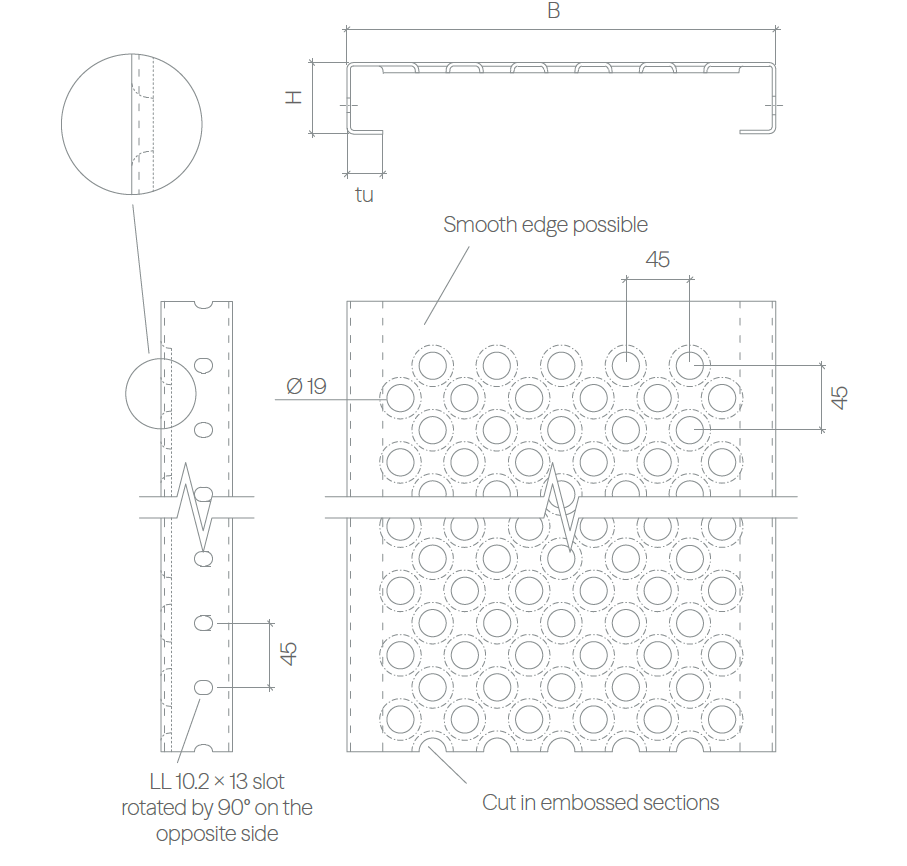

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | - |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | - |
| Aluminum [AIMg3] | 2,5 / 3,0 | - |
| Stainless steel [1.4301] | 2,0 | - |
| Preferred widths | 182 / 240 / 298 / 330 / 356 variable | |
| Preferred heights | 40 / 50 / 75 / 100 other heights on request | |
| Lengths | max. 6,030 mm | |
| Length divider | 45 |
Matching accessories
Attachments for Airstep N
BPR Universal clamp
Cast iron clamp for mounting from below, available in different versions.
BPR Cast metal washer with countersunk hole
Upper fixing part for Formstep N and Formstep 06, all Stepclair and Airstep molds.
BPR Plastic grommet with countersunk hole
Mounting top for all Stepclair and Airstep shapes.
BPR Fast fixing
Clamp connection with countersunk head screw M8.
BPR Flange
Clamp connection with cage nut and countersunk head screw M8.
