BPR Setting technology Drainstep RH3 & Stepbloc F
Consists of a setting bolt, T03 rondelle and a countersunk head screw with pressed long nut.
Profile Planking

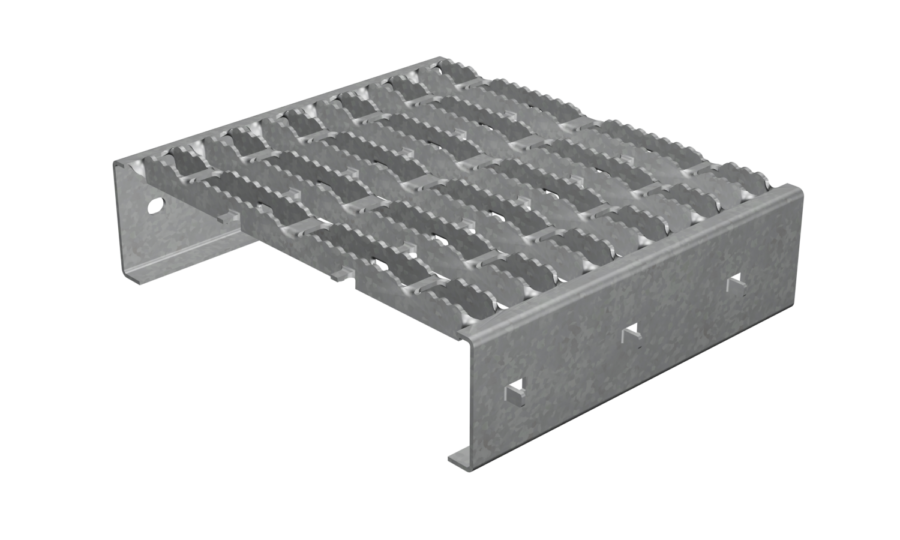

Drainstep RH 3
Developed by MEISER in 2013, Drainstep RH3 represents one of the most advanced profile planking systems within the MEISER product range.
Your contact persons GratingsWith an open area exceeding 70%, it provides outstanding drainage performance while complying with EN ISO 14122-2. It also offers enhanced fall-through protection (20 mm test sphere).
The steeply profiled bearing bars provide exceptional transverse rigidity, making Drainstep RH3 an ideal solution for demanding industrial applications.

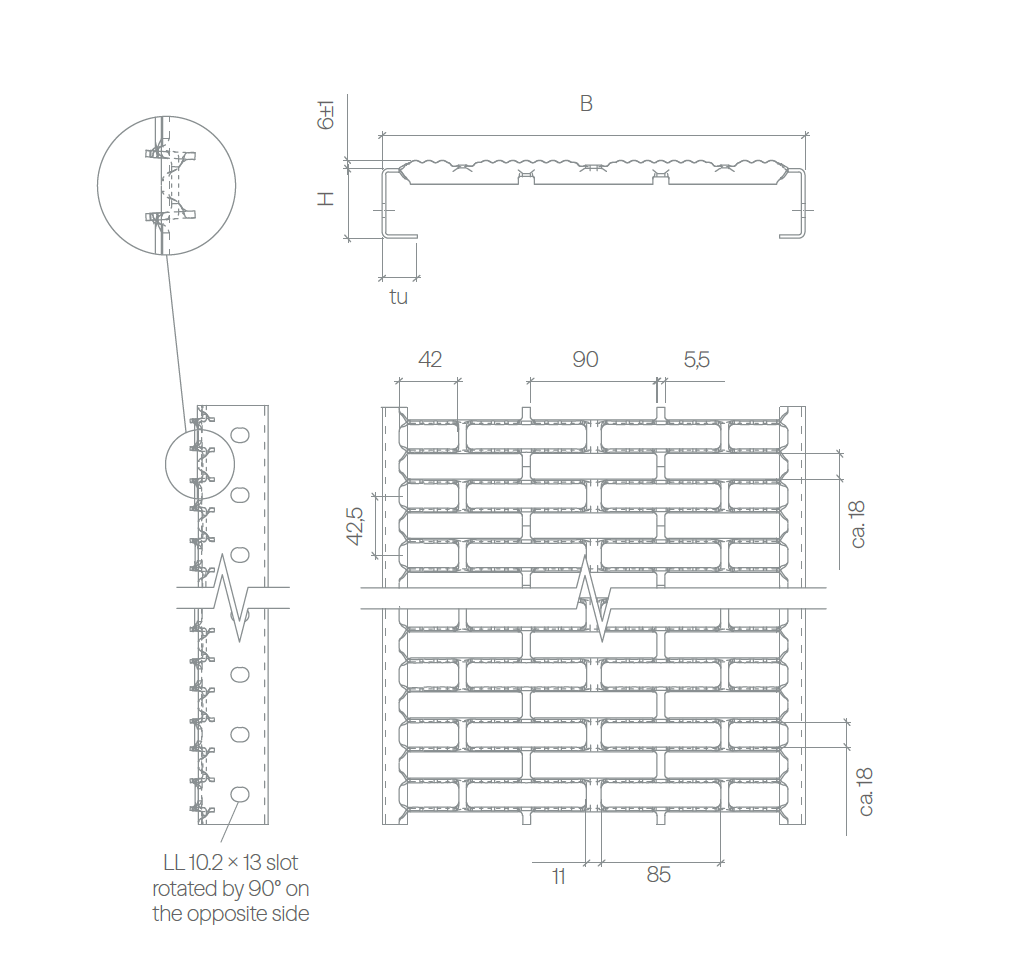

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 | R11 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 | R11 |
| Preferred widths | 200 / 300 / 312 / 324 / 333 | |
| Preferred heights | 40 - 150 mm, other heights on request | |
| Lengths | up to max. 8,000 mm | |
| Length divider | 42.5 mm |
Matching accessories
Attachments for Drainstep RH 3
BPR Universal clamp
Cast iron clamp for mounting from below, available in different versions.
BPR Rondelle T03
Cast upper part for all Stepbloc and Drainstep molds with countersunk hole for countersunk head screws (DIN 7991).
