Profile Planking
Stepbloc D
The pronounced serrated profile provides excellent structural rigidity together with a high level of slip resistance, particularly in environments where grease or oil is present.
Your contact persons GratingsThanks to its outstanding drainage properties, Stepbloc D is ideally suited for applications in industry, agriculture, vehicle manufacturing and general construction.

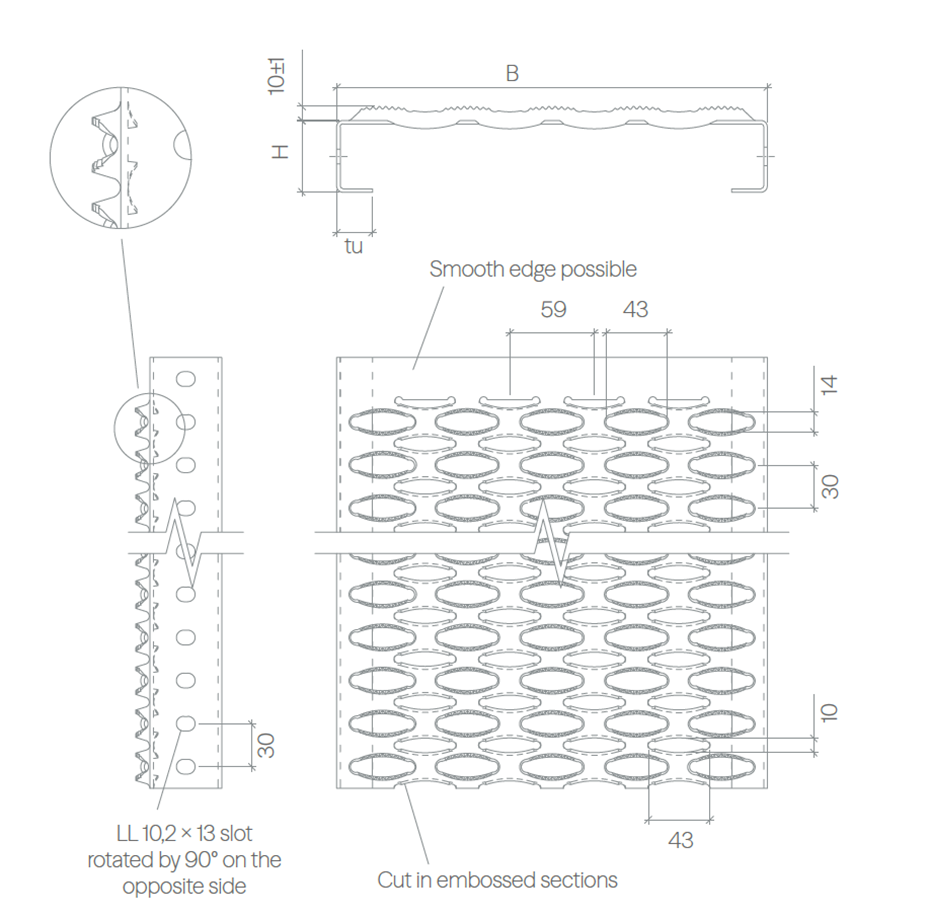

Dimensions
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R13 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R13 |
| Aluminum [AlMg3] | 2,5 / 3,0 | R13 |
| Stainless steel [1.4301] | 2,0 | - |
| Preferred widths | 120 / 180 / 240 / 300 / 360 / 420 / 480 |
| Preferred heights | 40/ 50/ 75/ 100 / other heights on request |
| Lengths | up to max. 8,000 mm |
| Length divider | 30 |
Matching accessories
Attachments for Stepbloc D
BPR Universal clamp
Cast iron clamp for mounting from below, available in different versions.
BPR Rondelle T03
Cast upper part for all Stepbloc and Drainstep molds with countersunk hole for countersunk head screws (DIN 7991).
BPR Fast fixing
Clamp connection with countersunk head screw M8.
BPR Plastic olive
For all Stepbloc molds with countersunk hole for countersunk head screws (DIN 7991).
