Profile Planking
Stephuit 01
Although the embossed surface of Stephuit O1 has no sharp edges, it still provides reliable slip resistance.
Your contact persons GratingsIts versatile design makes it suitable for a wide range of industrial, public and private applications.

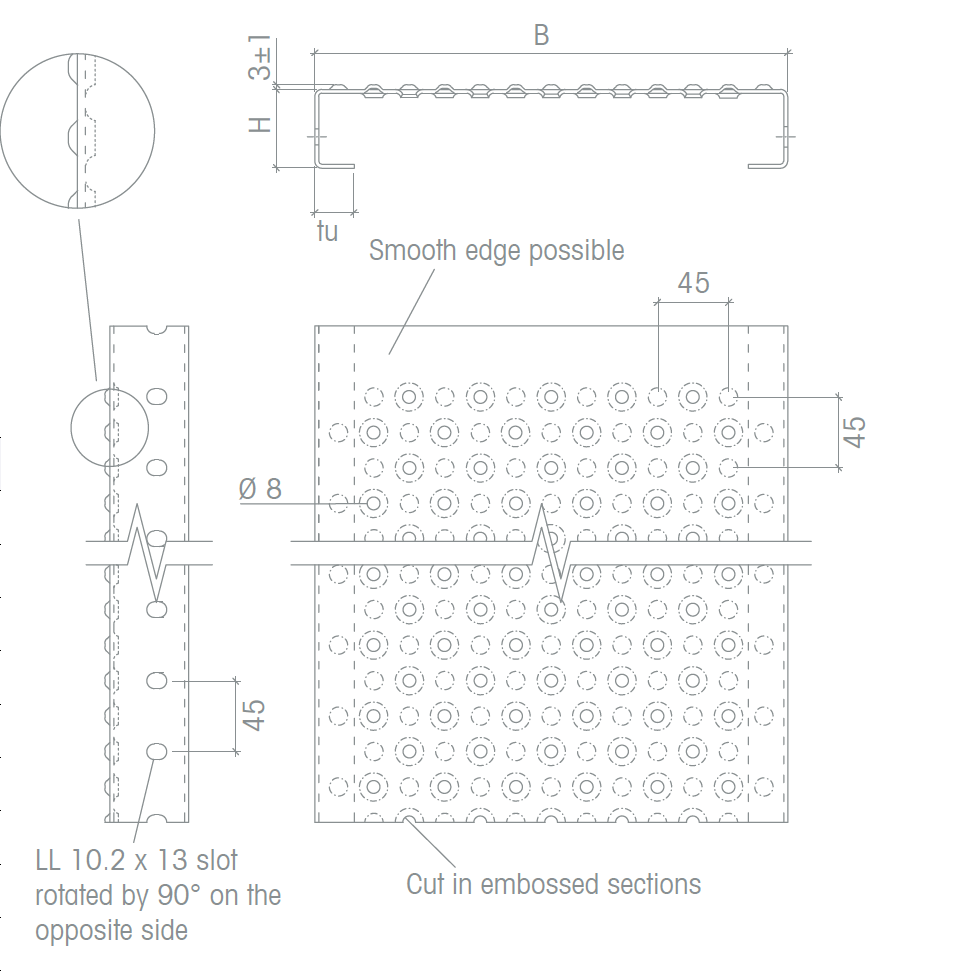

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R10 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R10 |
| Aluminum [AIMg3] | 2,5 / 3,0 | - |
| Stainless steel [1.4301] | 2,0 | - |
| Preferred widths | 182 / 240 / 298 / 330 / 356 variable | |
| Preferred heights | 40 / 50 / 75 / 100 other heights on request | |
| Lengths | max. 6,030 mm | |
| Length divider | 45 |
Matching accessories
Attachments for Stephuit 01
BPR Universal clamp
Cast iron clamp for mounting from below, available in different versions.
BPR Fast fixing
Clamp connection with countersunk head screw M8.
BPR Flange
Clamp connection with cage nut and countersunk head screw M8.
