BPR Setting technology closed surfaces
Including a hole of ∅ 13mm in the profile.
Profile Planking
Aderstep G1
Despite its closed surface, Aderstep G1 provides excellent slip resistance through its fine linear embossing.
Your contact persons GratingsIts refined appearance makes it equally suitable for industrial facilities, public buildings, private projects and demanding architectural applications.

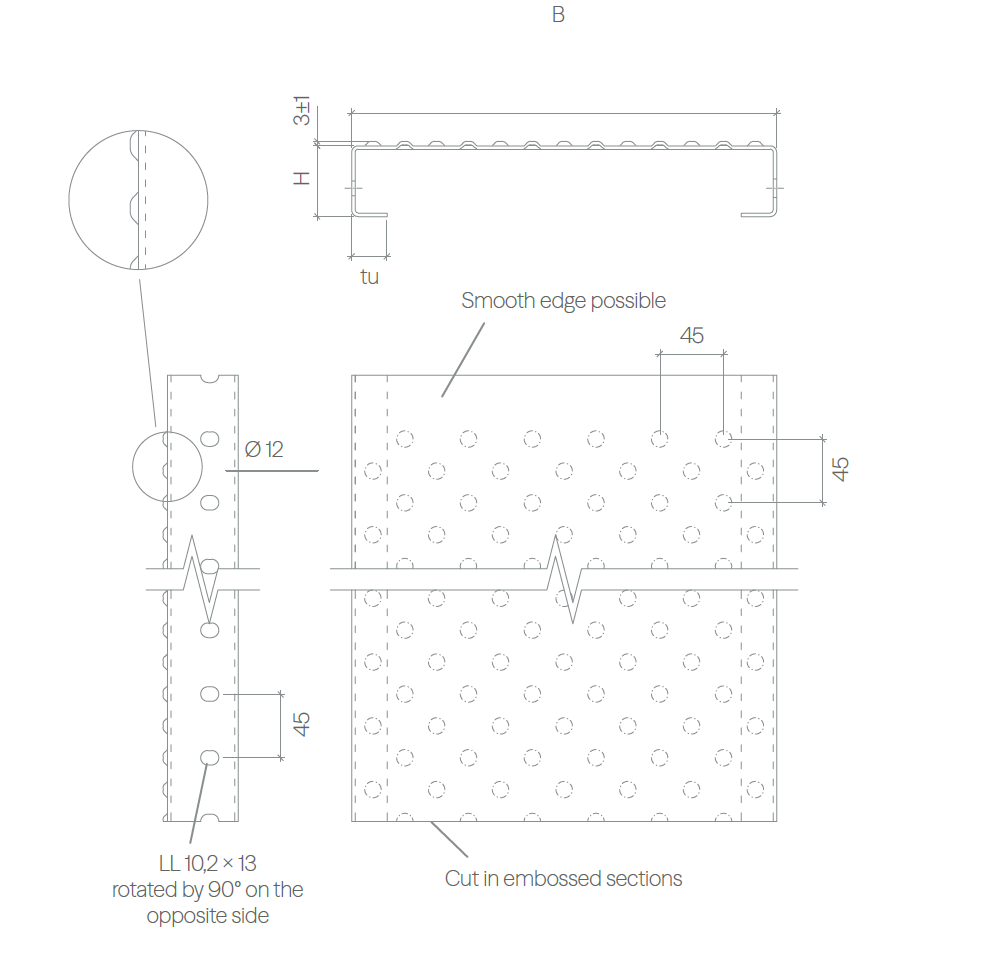

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R10 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R10 |
| Aluminum [AIMg3] | 2,5 / 3,0 | - |
| Stainless steel [1.4301] | 2,0 | - |
| Preferred widths | 182 / 240 / 298 / 330 variable | |
| Preferred heights | 40 / 50 / 75 / 100 / other heights on request | |
| Lengths | max. 8,000 mm | |
| Length divider | 45 |
Matching accessories
Attachments for Aderstep G1
BPR Universal clamp
Cast iron clamp for mounting from below, available in different versions.
