BPR Setting technology closed surfaces

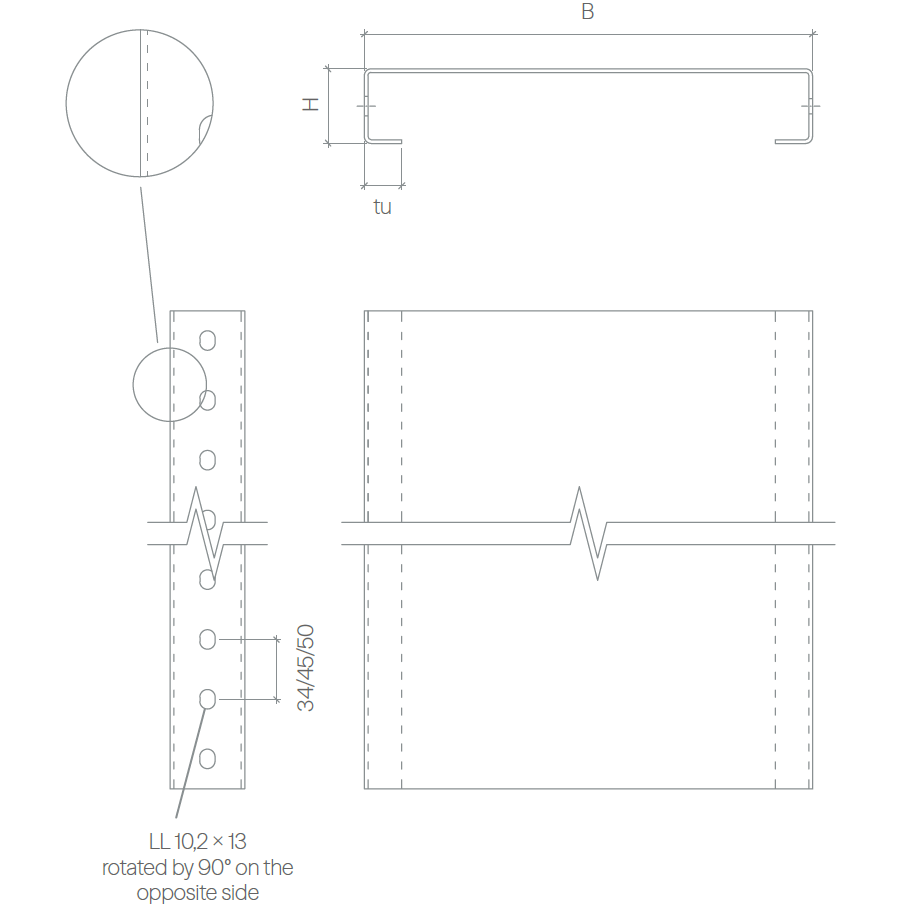

Including a hole of ∅ 13mm in the profile.
Profile Planking
Smooth Sheet
This version is designed for shelving systems and other applications requiring a smooth, fully closed surface.
Your contact persons GratingsAdditional applications include wall cladding and suspended ceiling systems.
Optional side perforations are available to allow adjacent panels to be securely fastened together during installation.
Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | - |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | - |
| Aluminum [AIMg3] | 2,5 / 3,0 | - |
| Stainless steel [1.4301] | 2,0 | - |
| Preferred widths | 120-360 variable | |
| Preferred heights | 40 / 50 / 75 / 100 / other heights on request | |
| Lengths | max. 8,000 mm | |
| Length divider | variable |
Matching accessories
Attachments for Smooth Sheet
BPR Universal clamp
Cast iron clamp for mounting from below, available in different versions.
