Profile Planking

Steplarm G

With a surface structure comparable to a chequer plate, Steplarm G offers an attractive alternative with significantly higher load-bearing capacity over larger spans.

Your contact persons

Its closed design makes it particularly suitable for pedestrian areas in public buildings as well as commercial and industrial applications.

Here you'll find the right contact person for Gratings

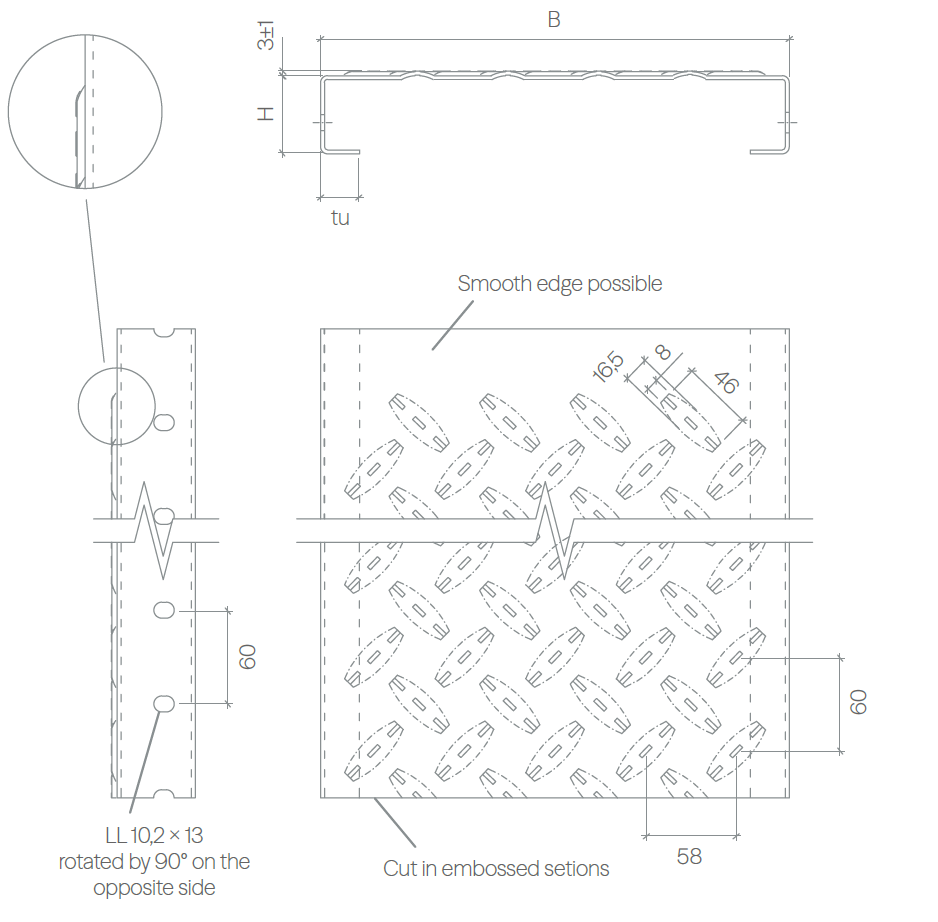

Dimensions

Special sizes or special material on request. Available dimensions according to stock program.

All dimensions in mm.

Material	Sheet thickness	Rating RH
Raw steel / hot-dip galvanized [DD11]	2,0 / 2,5 / 3,0	R10
Sendzimir galvanized steel [DX51]	2,0 / 2,5 / 3,0	R10
Aluminum [AIMg3]	2,5 / 3,0	-
Stainless steel [1.4301]	2,0	-

Preferred widths	200 / 240 / 270 / 298 variable
Preferred heights	50 / 75 / 100 / other heights on request
Lengths	max. 8,000 mm
Length divider	60
