Profile Planking

Tolplus N

The pronounced serrated profile gives Tolplus N excellent structural stability and outstanding slip resistance.

Your contact persons

Like the Stepbloc range, it is ideally suited for catwalks, platforms and safety stairways. The steep profile geometry ensures rapid drainage, making Tolplus N particularly suitable for outdoor installations.

Here you'll find the right contact person for Gratings

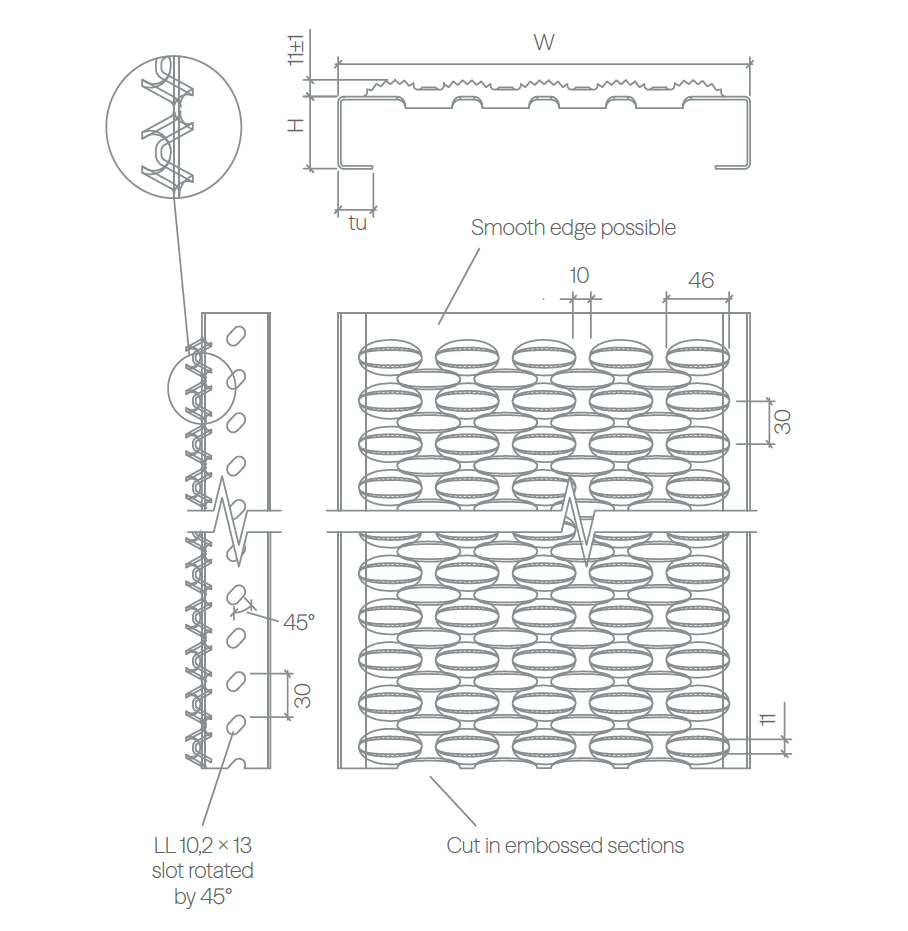

Dimensions

Special sizes or special material on request. Available dimensions according to stock program.

All dimensions in mm.

*Produced in France.

Material	Sheet thickness	Rating RH
Raw steel / hot-dip galvanized [DD11]	2,0 / 2,5 / 3,0	R12
Sendzimir galvanized steel [DX51]	2,0 / 2,5 / 3,0	R12
Aluminum [AIMg3]	2,5 / 3,0	R12
Stainless steel [AISI 304L]	2,0	R12

Preferred widths	124 / 182 / 240 / 298 / 330 / 356 / 414 / 475
Preferred heights	40 / 50 / 75 / 100 / other heights on request
Lengths	max. 6,030 mm
Length divider	30

Matching accessories

Attachments for Tolplus N

MEISER: BPR Setting technology Drainstep RH3 & Stepbloc F — MEISER - BPR Setting technology Drainstep RH3 & Stepbloc F

BPR Setting technology Drainstep RH3 & Stepbloc F

Consists of a setting bolt, T03 rondelle and a countersunk head screw with pressed long nut.

MEISER: BPR Universal clamp — MEISER - BPR Universal clamp

BPR Universal clamp

Cast iron clamp for mounting from below, available in different versions.

MEISER: BPR Plastic olive — MEISER - BPR Plastic olive

BPR Plastic olive

For all Stepbloc molds with countersunk hole for countersunk head screws (DIN 7991).

MEISER: BPR Cabel connection — MEISER - BPR Cabel connection

BPR Cabel connection

Various lengths, V2A with plastic coating and sleeves with M8 internal thread.

MEISER: BPR Rondelle T03 — MEISER - BPR Rondelle T03

BPR Rondelle T03

Cast upper part for all Stepbloc and Drainstep molds with countersunk hole for countersunk head screws (DIN 7991).

MEISER: BPR Fast fixing — MEISER - BPR Fast fixing

BPR Fast fixing

Clamp connection with countersunk head screw M8.

MEISER: BPR Flange — MEISER - BPR Flange

BPR Flange

Clamp connection with cage nut and countersunk head screw M8.
