BPR Screw connection
Hexagon bolt M8 x 20 with washers and self-locking nut.
Profile Planking
Tolcreneaux N
Tolcreneaux N provides excellent slip resistance in every direction thanks to its distinctive star-shaped serrated perforations.
Your contact persons GratingsThe embossed drainage holes efficiently channel away liquids, making this profile especially suitable for outdoor environments and applications involving water or other liquids.

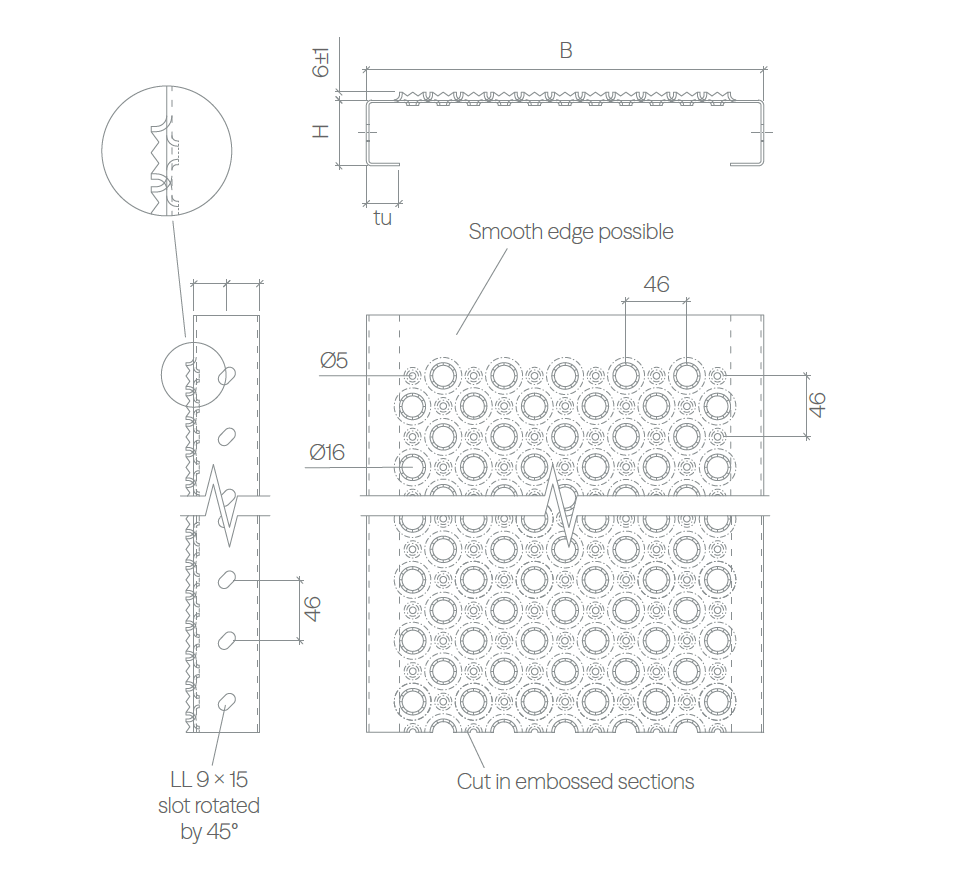

Dimensions
Special sizes and alternative materials are available on request. Standard dimensions are available from stock.
All dimensions in mm.
*Manufactured in France
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 / 3,0 | R12 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 / 3,0 | R12 |
| Aluminum [AIMg3] | 2,5 / 3,0 | R12 |
| Stainless steel [AISI 304L] | 2,0 | R12 |
| Preferred widths | 182 / 240 / 298 / 330 / 356 variable | |
| Preferred heights | 40 / 50 / 75 / 100 / other heights on request | |
| Lengths | max. 6,030 mm | |
| Length divider | 46 |
Matching accessories
Attachments for Tolcreneaux N
BPR Universal clamp
Cast iron clamp for mounting from below, available in different versions.
BPR Fast fixing
Clamp connection with countersunk head screw M8.
BPR Flange
Clamp connection with cage nut and countersunk head screw M8.
