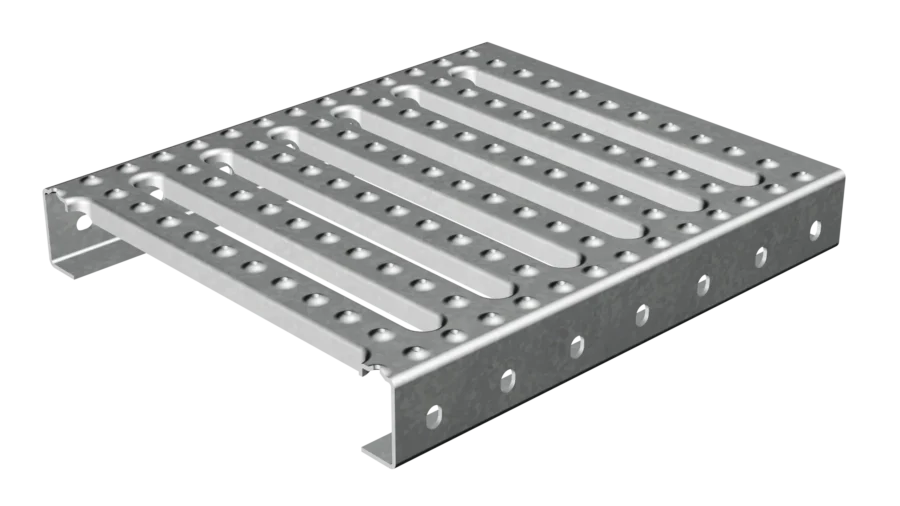

Stepplus N
Stepplus N combines a highly slip-resistant surface with exceptional transverse rigidity, making it suitable for applications subjected to high point loads.
Your contact persons GratingsIts excellent drainage properties make it suitable for industrial environments as well as public and private applications.
In addition to flooring, it is also frequently used as façade cladding and as an architectural design element.

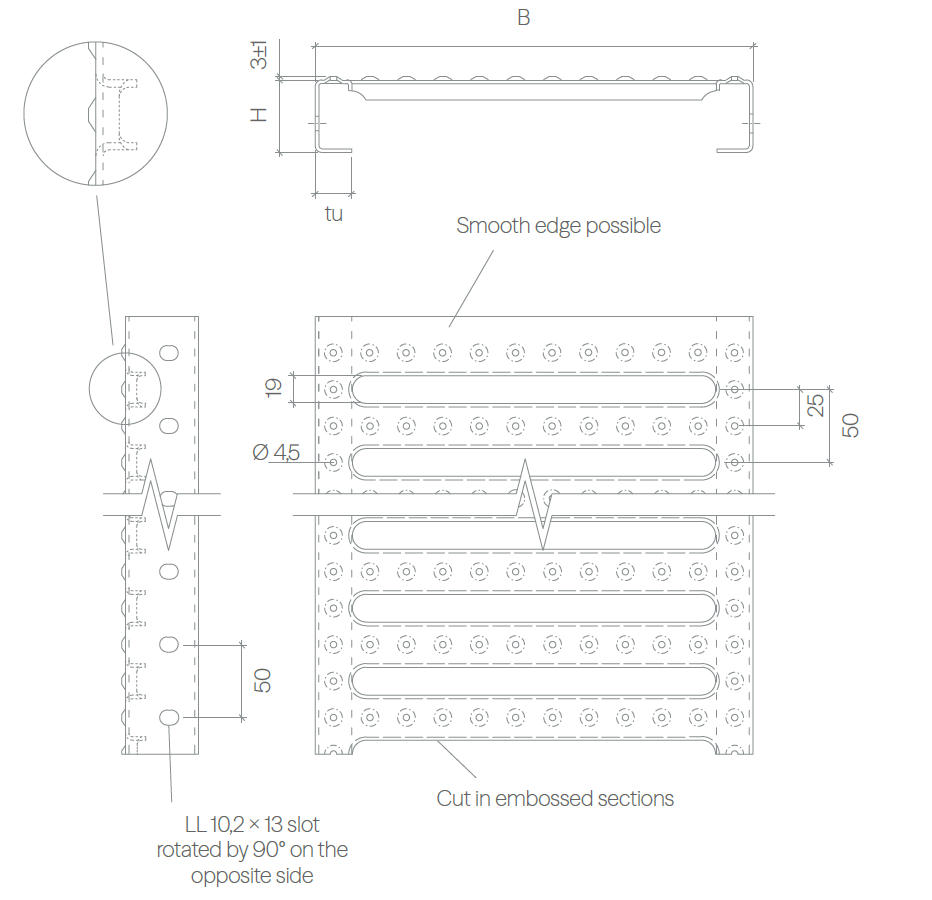

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 | R12 |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 | R12 |
| Aluminum [AIMg3] | - | - |
| Stainless steel [1.4301] | 2,0 | R12 |
| Preferred widths | 125 / 200 / 250 / 300 | |
| Preferred heights | 40 / 50 / 75 / 100 / other heights on request | |
| Lengths | max. 6,000 mm | |
| Length divider | 50 |
Matching accessories
Attachments for Stepplus N
BPR Counter plate
Top for all Stepplus shapes.
BPR Rondelle T03
Cast upper part for all Stepbloc and Drainstep molds with countersunk hole for countersunk head screws (DIN 7991).
BPR Fast fixing
Clamp connection with countersunk head screw M8.
BPR Flange
Clamp connection with cage nut and countersunk head screw M8.
