BPR Setting technology closed surfaces
Including a hole of ∅ 13mm in the profile.
Profile Planking

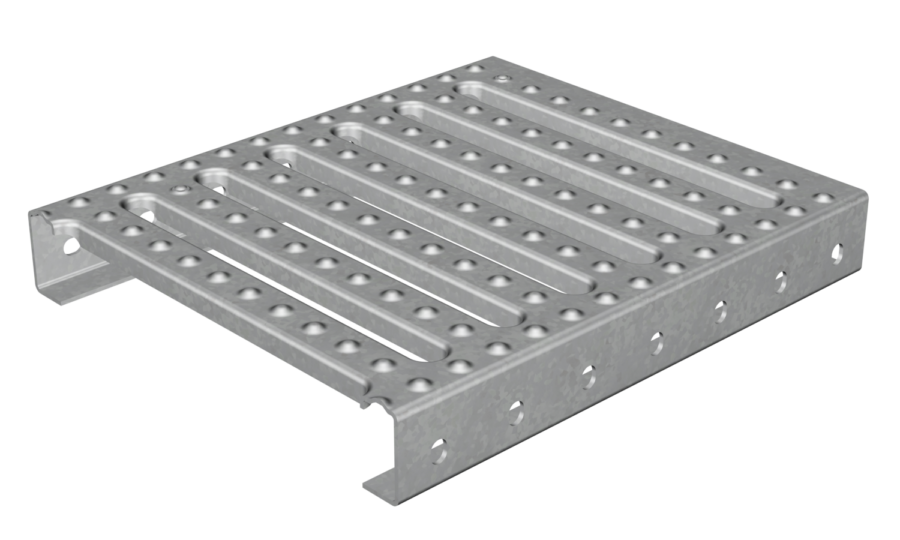

Stepplus 01
Stepplus O1 offers the same outstanding transverse rigidity as Stepplus N while providing reliable slip resistance through its embossed surface.
Your contact persons GratingsUnlike Stepplus N, however, the embossed features are not perforated.
Its excellent drainage properties make it particularly suitable for industrial applications such as grain mills and breweries.

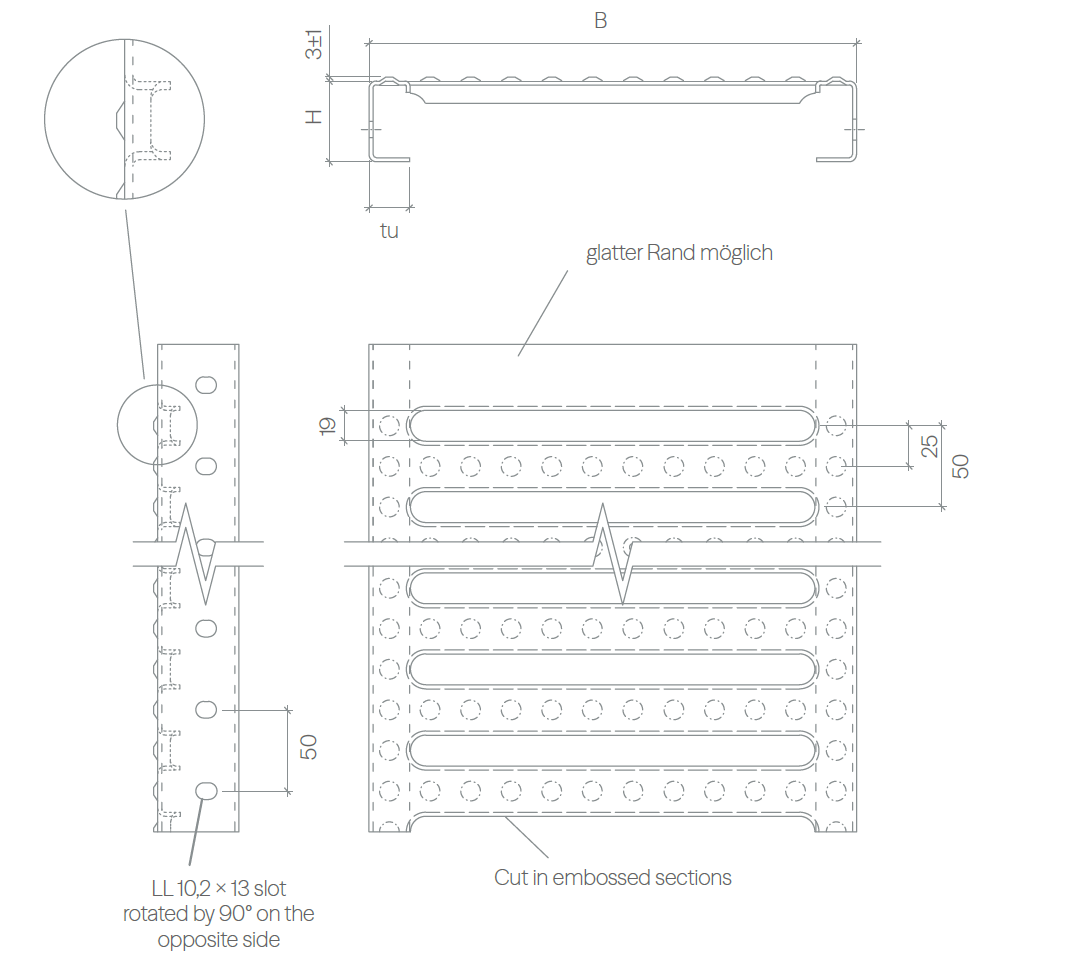

Dimensions
Special sizes or special material on request. Available dimensions according to stock program.
All dimensions in mm.
| Material | Sheet thickness | Rating RH |
|---|---|---|
| Raw steel / hot-dip galvanized [DD11] | 2,0 / 2,5 | - |
| Sendzimir galvanized steel [DX51] | 2,0 / 2,5 | - |
| Aluminum [AIMg3] | - | - |
| Stainless steel [1.4301] | 2,0 | - |
| Preferred widths | 125 / 200 / 250 / 300 | |
| Preferred heights | 40 / 50 / 75 / 100 / other heights on request | |
| Lengths | max. 6,000 mm | |
| Length divider | 50 |
Matching accessories
Attachments for Stepplus 01
BPR Universal clamp
Cast iron clamp for mounting from below, available in different versions.

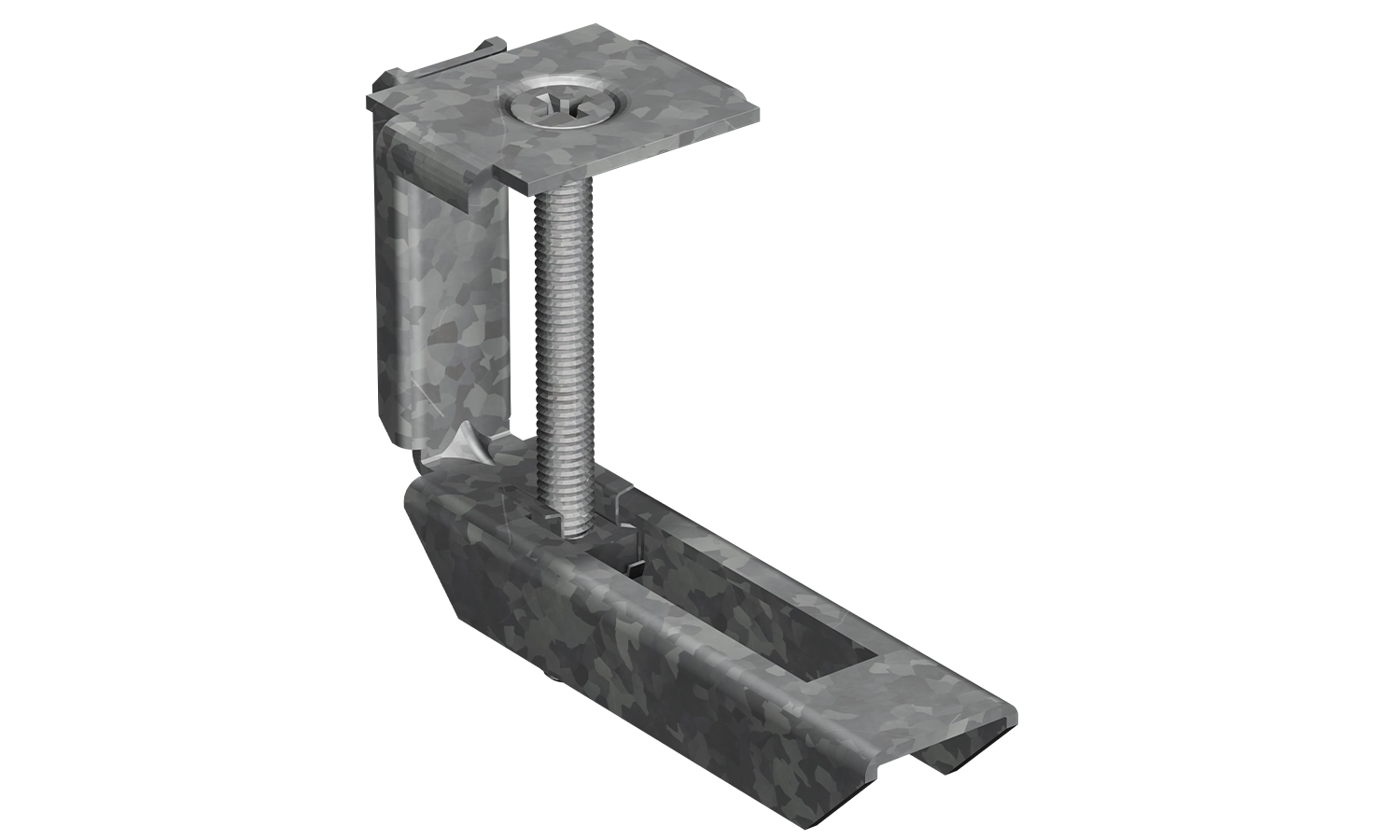

BPR Counter plate
Top for all Stepplus shapes.

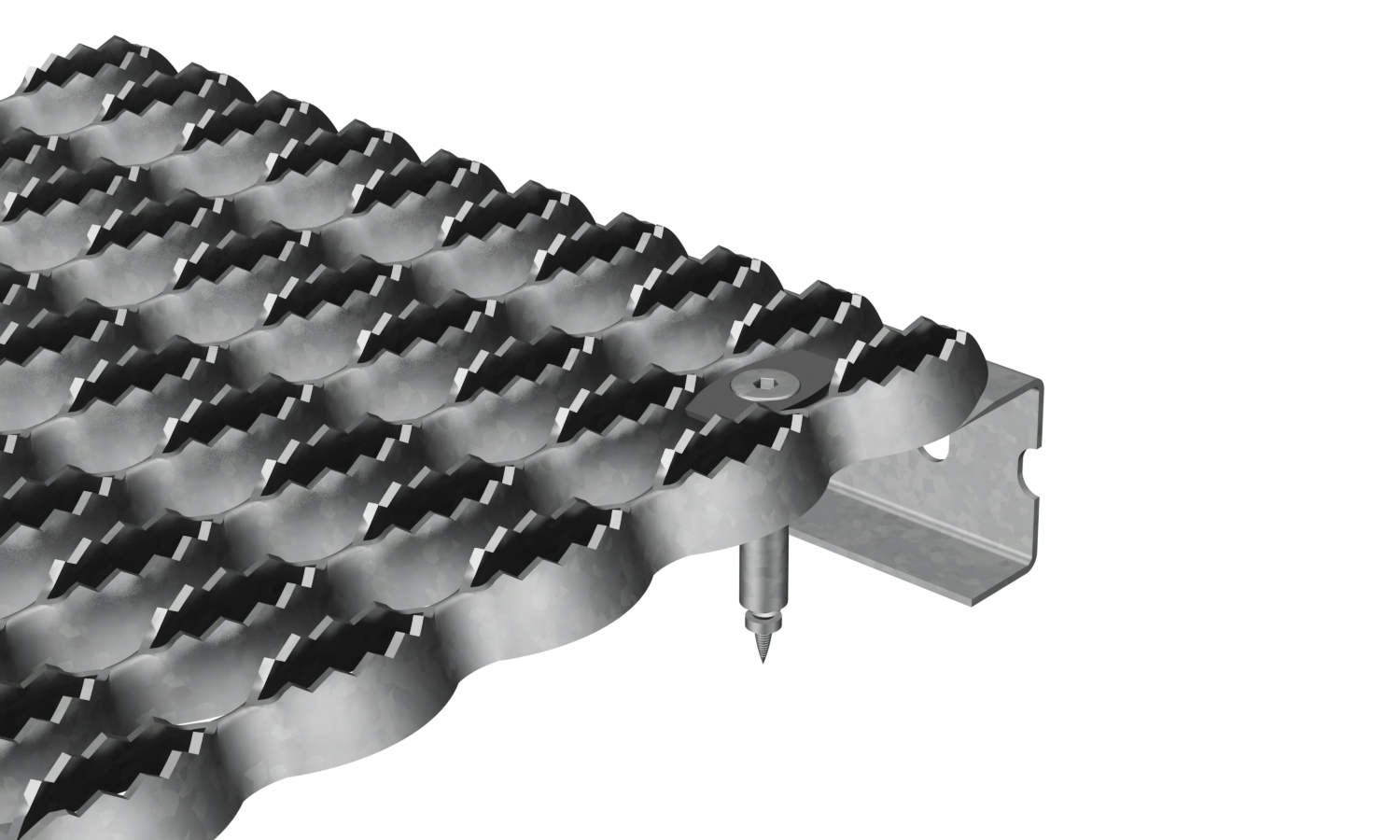

BPR Rondelle T03
Cast upper part for all Stepbloc and Drainstep molds with countersunk hole for countersunk head screws (DIN 7991).
BPR Fast fixing
Clamp connection with countersunk head screw M8.
BPR Flange
Clamp connection with cage nut and countersunk head screw M8.
