Profile Planking

Stephuit N

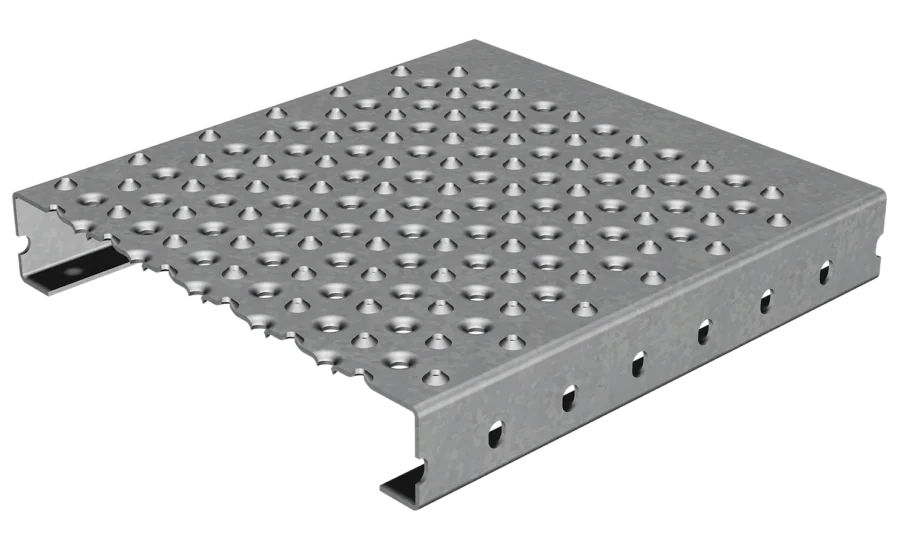

Stephuit N is a versatile profile planking system featuring a textured surface that provides reliable slip resistance.

Your contact persons

Its fine perforation makes it suitable for industrial walkways as well as public-access areas.

Here you'll find the right contact person for Gratings

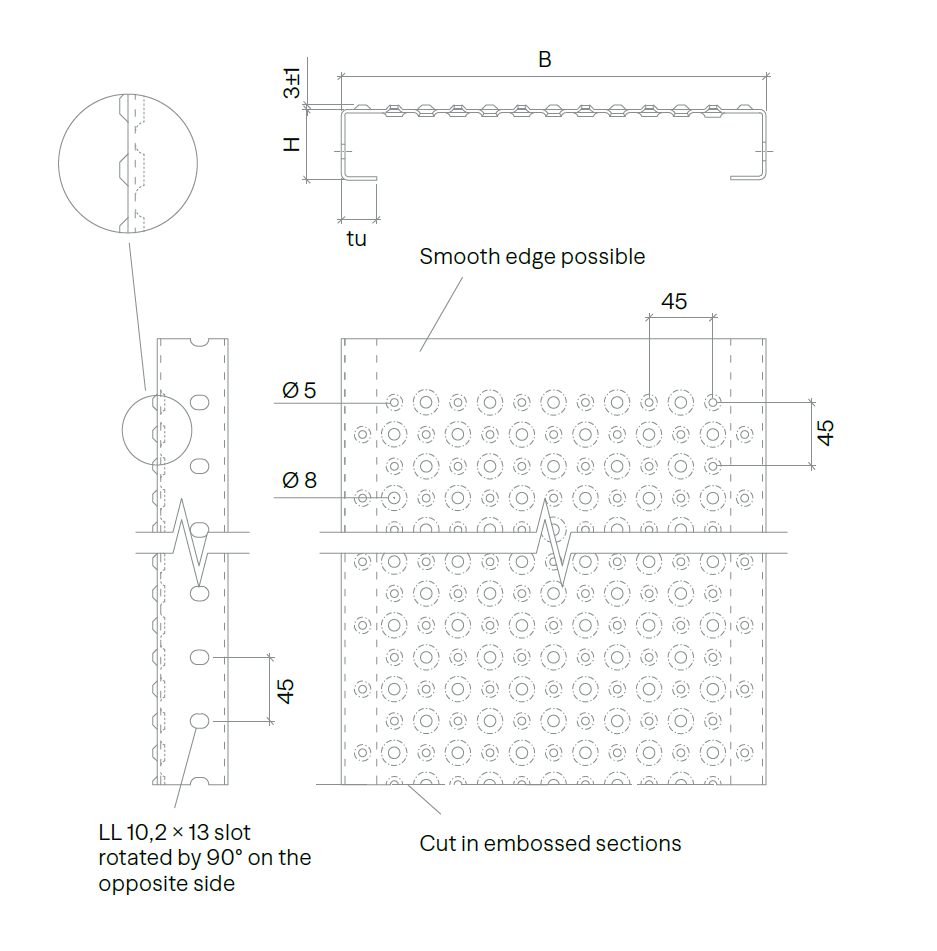

Dimensions

Material	Sheet thickness	Rating RH
Raw steel / hot-dip galvanized [DD11]	2,0 / 2,5 / 3,0	R13
Sendzimir galvanized steel [DX51]	2,0 / 2,5 / 3,0	R13
Aluminum [AIMg3]	2,5 / 3,0	R13
Stainless steel [1.4301]	2,0	-

Preferred widths	182 / 240 / 298 / 356 variable
Preferred heights	40 / 50 / 75 / 100 other heights on request
Lengths	up to max. 6,030 mm
Length divider	45

Matching accessories

Attachments for Stephuit N

MEISER: BPR Support clip — MEISER - BPR Support clip

BPR Support clip

Supporting clamp connection, pre-assembled, with countersunk head screw M8.

MEISER: BPR Universal clamp — MEISER - BPR Universal clamp

BPR Universal clamp

Cast iron clamp for mounting from below, available in different versions.

MEISER: BPR Fast fixing — MEISER - BPR Fast fixing

BPR Fast fixing

Clamp connection with countersunk head screw M8.

MEISER: BPR Flange — MEISER - BPR Flange

BPR Flange

Clamp connection with cage nut and countersunk head screw M8.
