Profile Planking

Formstep N

Small upper perforations combined with larger lower perforations create a highly rigid profile while providing excellent slip resistance.

Your contact persons

Formstep N is particularly suitable for stairways, walkways, machine platforms and scaffold planks, especially in outdoor applications.

Here you'll find the right contact person for Gratings

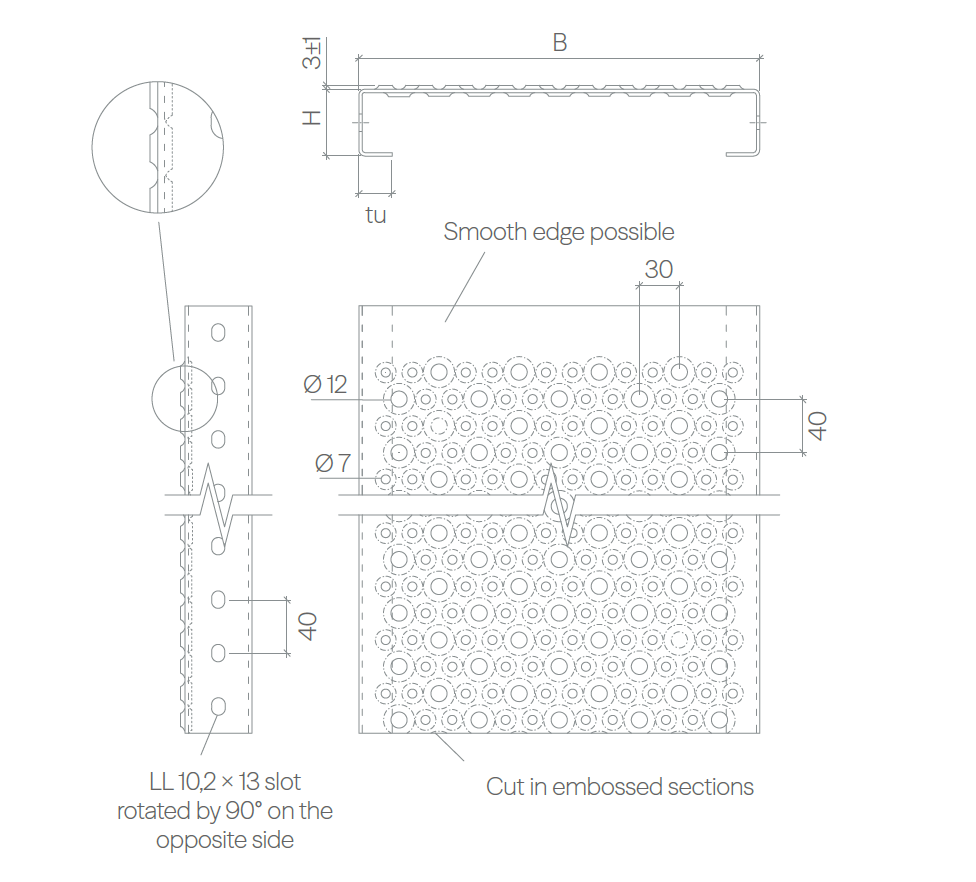

Dimensions

Special sizes or special material on request. Available dimensions according to stock program.

All dimensions in mm.

Material	Sheet thickness	Rating RH
Raw steel / hot-dip galvanized [DD11]	2,0 / 2,5 / 3,0	R12
Sendzimir galvanized steel [DX51]	2,0 / 2,5 / 3,0	R12
Aluminum [AIMg3]	2,5 / 3,0	R12
Stainless steel [1.4301]	2,0	R11

Preferred widths	120 / 180 / 240 / 300 / 360 variable
Preferred heights	40 / 50 / 75 / 100 / other heights on request
Lengths	up to max. 6,000 mm
Length divider	40

Matching accessories

Attachments for Formstep N

BPR Support profile

For connecting the gratings to each other at the front and for supporting the gratings in the middle at the same time.

MEISER: BPR Universal clamp — MEISER - BPR Universal clamp

BPR Universal clamp

Cast iron clamp for mounting from below, available in different versions.

MEISER: BPR Cast metal washer with countersunk hole — MEISER - BPR Cast metal washer with countersunk hole

BPR Cast metal washer with countersunk hole

Upper fixing part for Formstep N and Formstep 06, all Stepclair and Airstep molds.

MEISER: BPR Fast fixing — MEISER - BPR Fast fixing

BPR Fast fixing

Clamp connection with countersunk head screw M8.

MEISER: BPR Flange — MEISER - BPR Flange

BPR Flange

Clamp connection with cage nut and countersunk head screw M8.
