GRP Systems
Moulded GRP Stairtreads
MEISER moulded GRP stairtreads are manufactured with a closed, anti-slip surface and a highly visible black safety nosing as standard. A yellow safety nosing is also available as an option.
Your contact persons GratingsThe contrasting leading edge significantly improves step visibility and enhances user safety.
Please also refer to our information on slip resistance classifications.
There is a range of different surfaces. The surface of the in-stock GRP-stairtreads is corundum-gritted (KB).

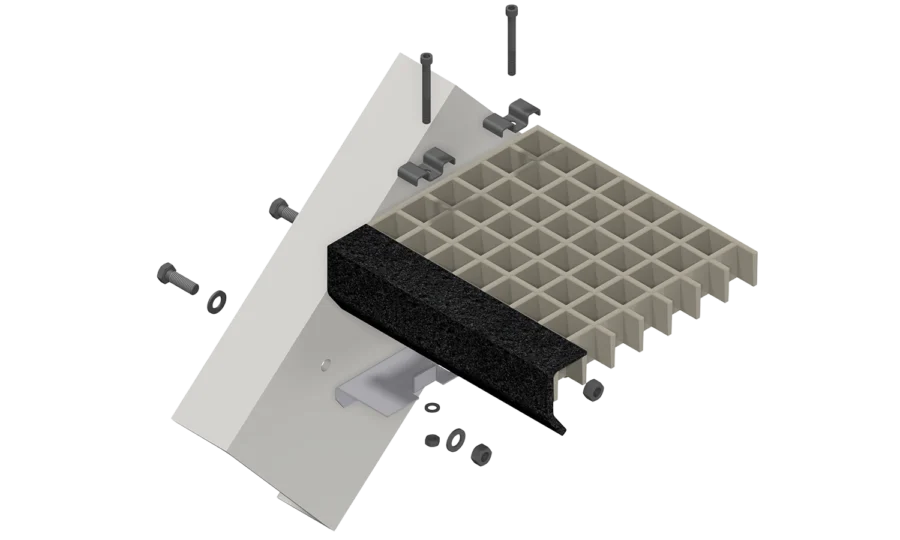

GRP stairtreads with screw-on angle side-plates made of GRP or stainless steel grade 1.4301/AISI304 and 1.4571/AISI316 are available on demand.
| Height H (mm) | Bar thickness bottom (Su)/ top (So) (mm) | Mesh spacing (MT) (mm) | Open mesh (mm) | Nosing type | Weight [kg/ piece] | Stock size (mm)/ surface type |
|---|---|---|---|---|---|---|
| 38 | 5/7 | 38,1 x 38,1 | ~31 x 31 | simple type nosing | 5,5 | 997 x 274 (K) |
| 18,2 | 3321 x 274 (K) | |||||
| 38 | 5/7 | 38,1 x 38,1 | ~31 x 31 | reinforced nosing | 25,0 | 3321 x 282 (K) |
| Height H (mm) | Bar thickness bottom (Su)/ top (So) (mm) | Mesh spacing (MT) (mm) | Open mesh (mm) | Nosing type | Weights [kg/ piece] | Stock size (mm)/ surface type |
|---|---|---|---|---|---|---|
| 38 | 5/7 | 38,1 x 38,1 | ~31 x 31 | simple type nosing | 5,6 | 997 x 274 (KB) |
| 18,5 | 3,321 x 274 (KB) | |||||
| 38 | 5/7 | 38,1 x 38,1 | ~31 x 31 | reinforced nosing | 25,5 | 3,321 x 282 (KB) |
Nosing/Side plates
Nosing

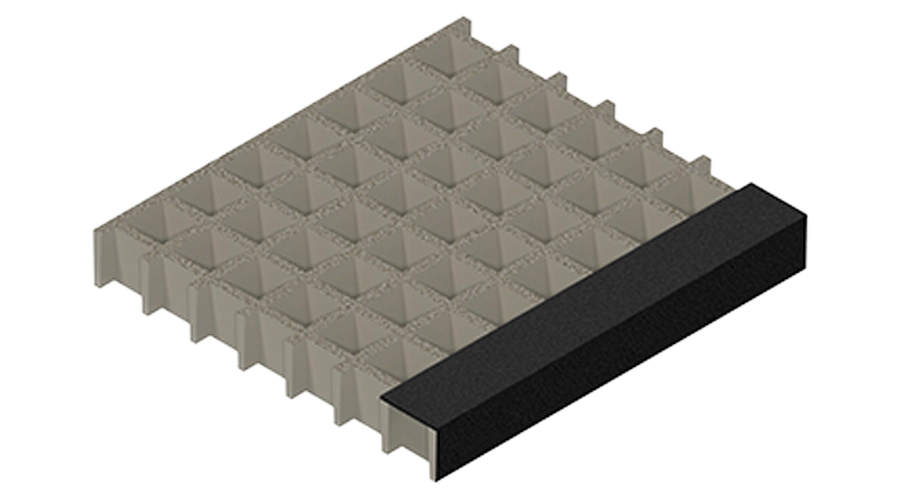

Simple type nosing

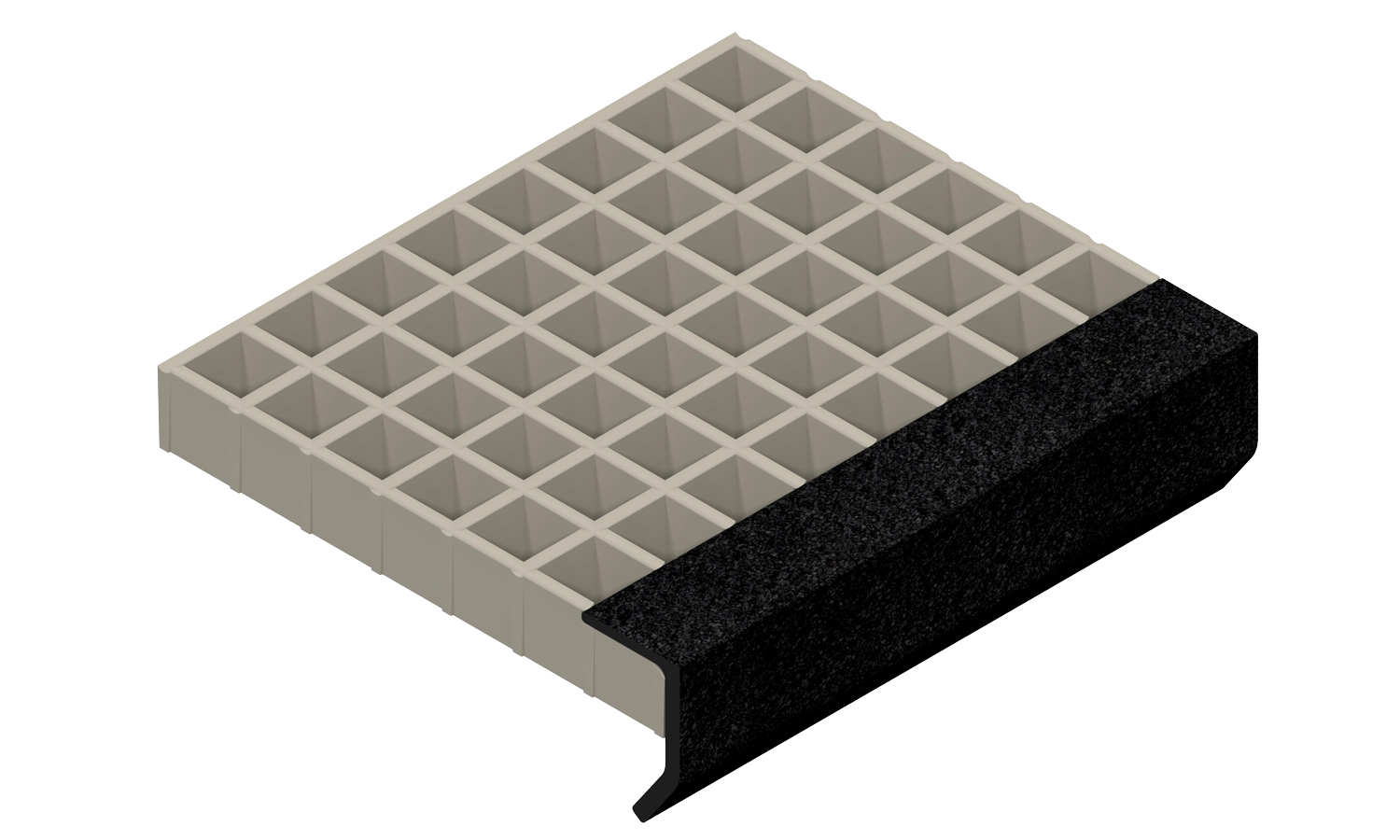

Reinforced nosing

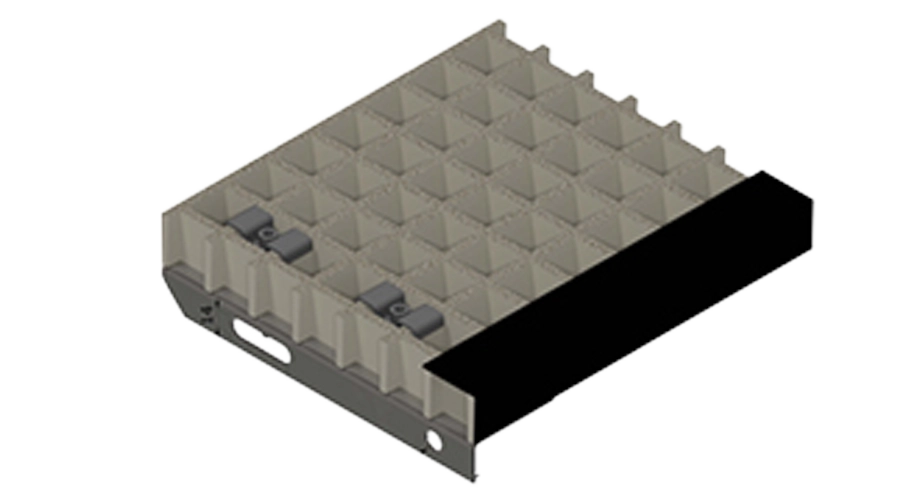

Side plates
Side plates GRP / stainless steel
| Length L [mm] | Hole distance [mm] |
|---|---|
| 237 | 120 |
| 274 | 150 |
| 312 | 180 |
