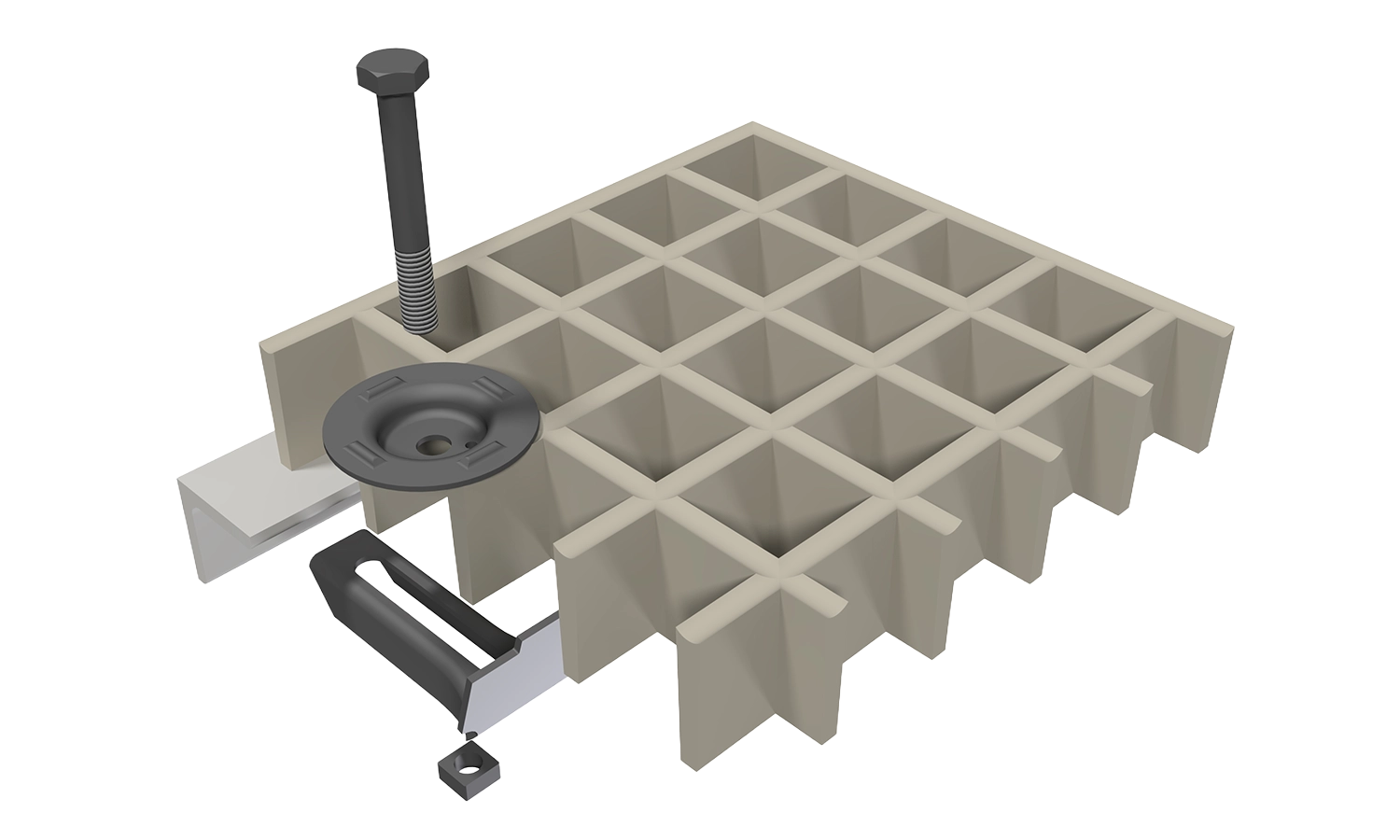

FRP Clamp T M0442
Consisting of deep-drawn upper part of plate, lower part of clamp, hexagon head screw M8 (length as required) and square nut M8
GRP Systems

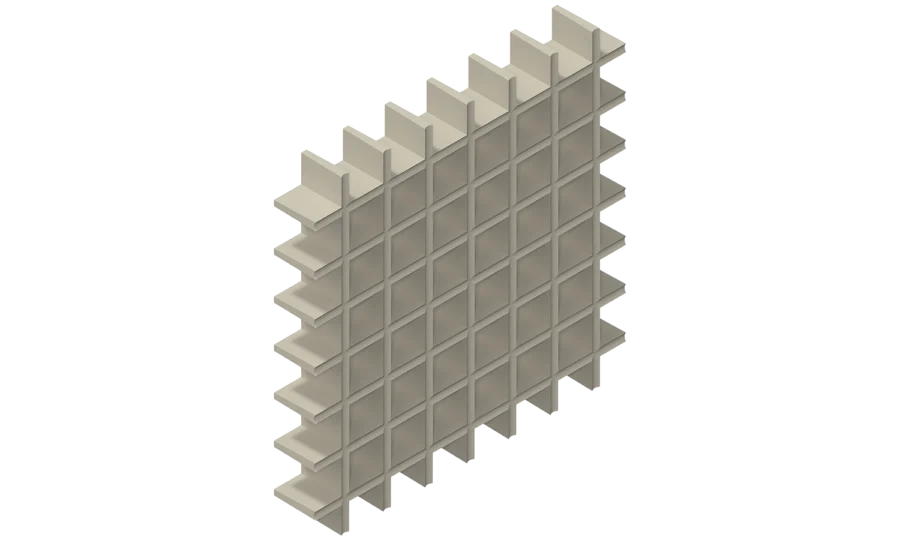

Moulded GRP Grating
The bearing bars of moulded GRP grating run in full height in both directions whereby a steady and high resilience is reached. The percentage of glass in the grating comprises max. 40 % due to technical requirements.
Your contact persons GratingsThe GRP grating are manufactured in a so-called handlayup-procedure with following heat curing in moulds.
Moulded GRP grating are available with different array elements. Please consider the list of available matrix resin systems.
The so-called monolithic lattice structure of moulded GRP grating enables an outstanding resistance to various acids and bases.
Please consider our corrosion resistance chart. There are different surfaces available. Please consider our explanations regarding anti-skid properties.
GRP Resin Matrix Systems
Different resin matrix systems are available to optimise corrosion resistance, temperature performance and fire behaviour for specific applications.
Orthophthalic (OPR)
Polyester resin for mildly corrosive environments.
- Orthophthalic polyester resin
- Flame-retardant
- Halogen-free (non-toxic)
- Self-extinguishing
- HDT (A): 80 °C
Martens heat distortion temperature: 160 °C
Isophthalic (IPR) – Standard
Universal-purpose polyester resin.
- Isophthalic polyester resin
- Flame-retardant
- Halogen-free (non-toxic)
- Self-extinguishing
- HDT (A): 120 °C
- Martens heat distortion temperature: 160 °C
Vinyl Ester (VER)
Vinyl ester resin for maximum chemical resistance
- Vinyl ester resin
- Flame-retardant
- Halogen-free (non-toxic)
- Self-extinguishing
- Heat Deflection Temperature (HDT A): 120 °C
- Martens heat distortion temperature: 180 °C
Vinyl ester resin is the preferred choice where exceptional chemical resistance, enhanced temperature resistance, and superior impact and fatigue strength are required. It is ideally suited for high-performance GRP gratings designed for use in the most demanding industrial environments.
Phenolic Resin (PHR)
Maximum fire protection
- Phenolic resin
- Flame-retardant
- Self-extinguishing
- Extremely low smoke generation
- Heat Deflection Temperature (HDT A): 160 °C
- Martens heat distortion temperature: 180 °C
Phenolic resin offers outstanding fire performance thanks to its exceptional heat resistance, minimal smoke generation and very low toxicity of combustion gases. In the event of a fire, flame propagation is significantly reduced, making it the preferred solution for applications with the highest fire safety requirements.
Matching accessories
Attachments for Moulded GRP Grating

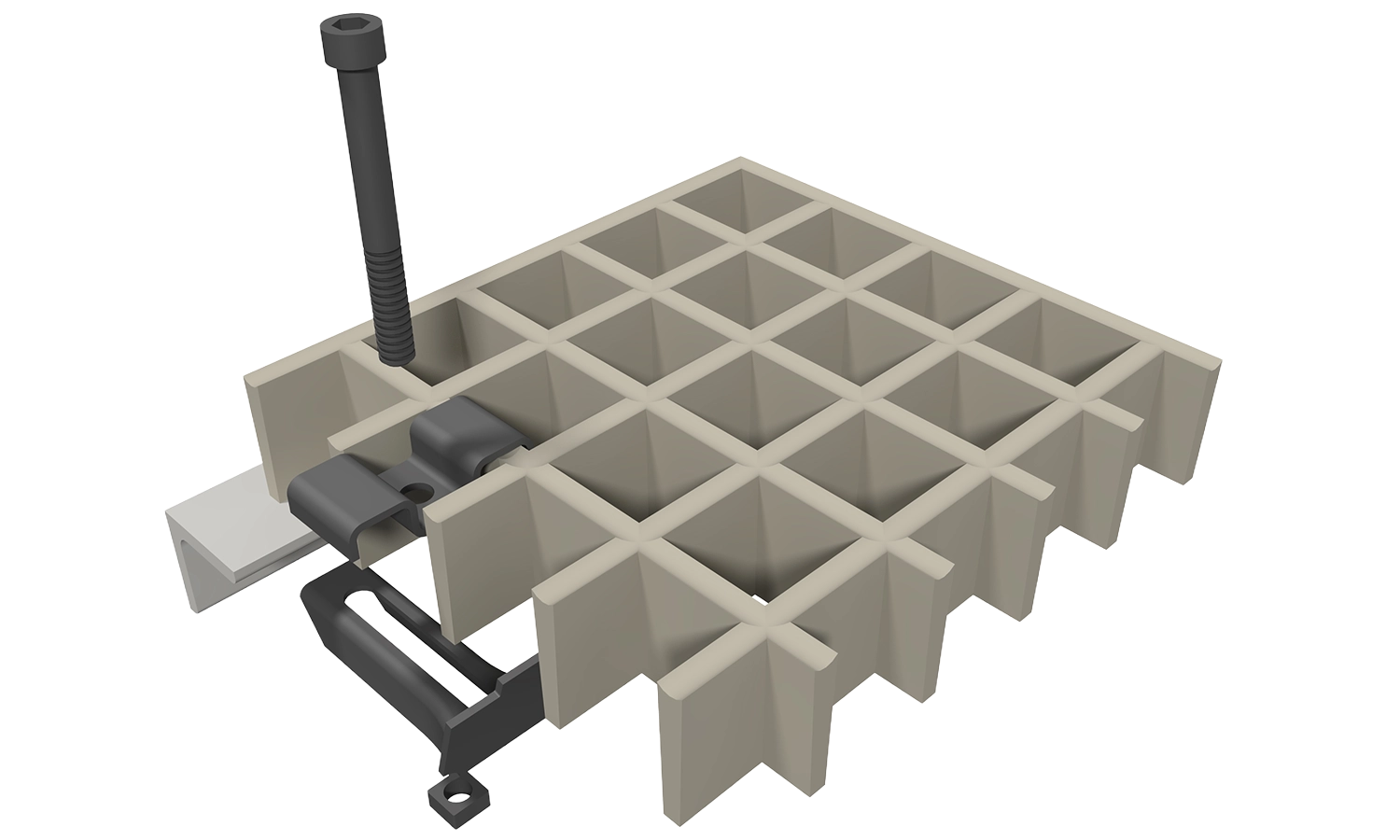

GFK Clamp B M7442
Consisting of deep-drawn upper part of bracket, lower part of clamp, cylinder head screw M8 (length as required) and square nut M8.

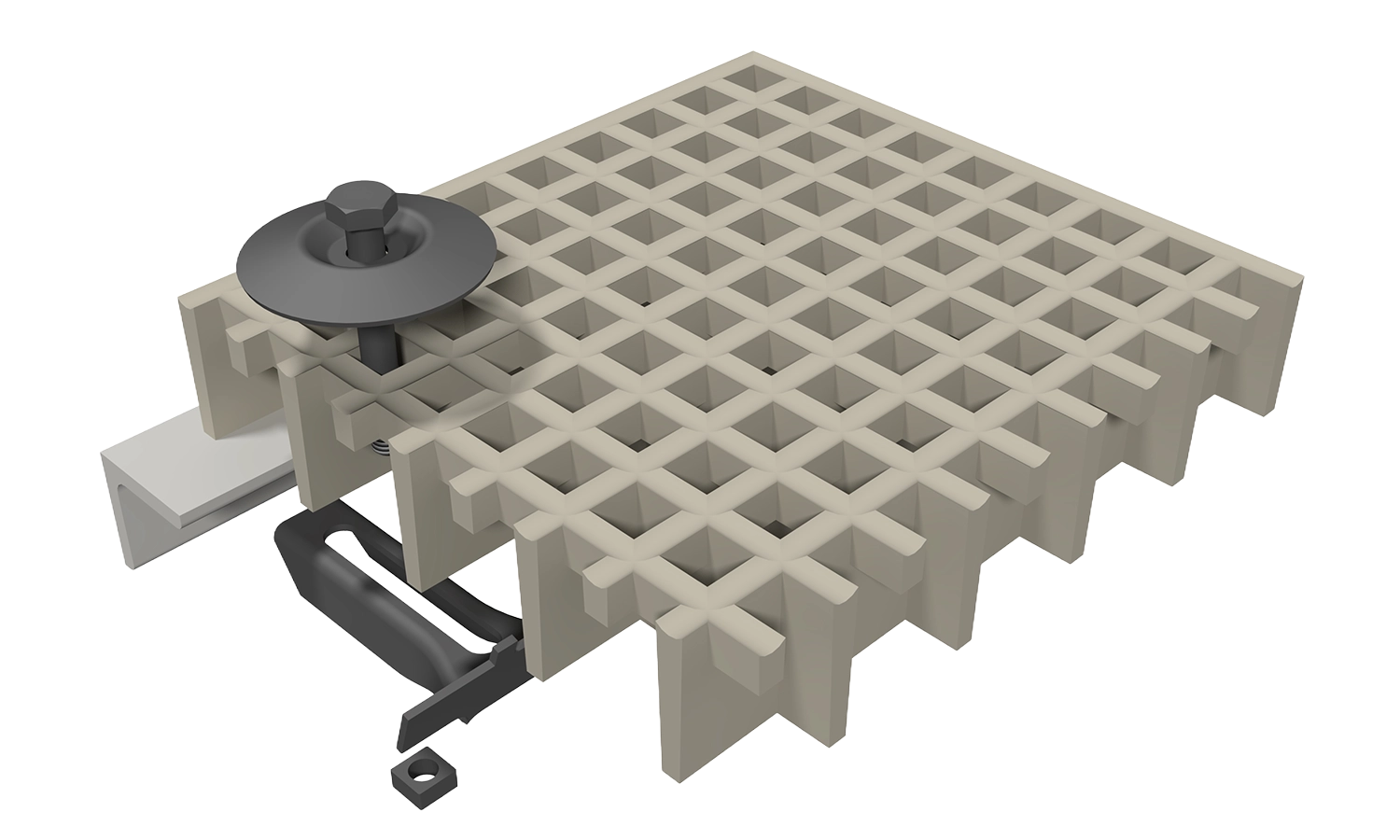

FRP Clamp T M2931s
Consisting of an overlying upper plate section, lower clamp section, hexagon head screw M8 (length as required) and square nut M8.

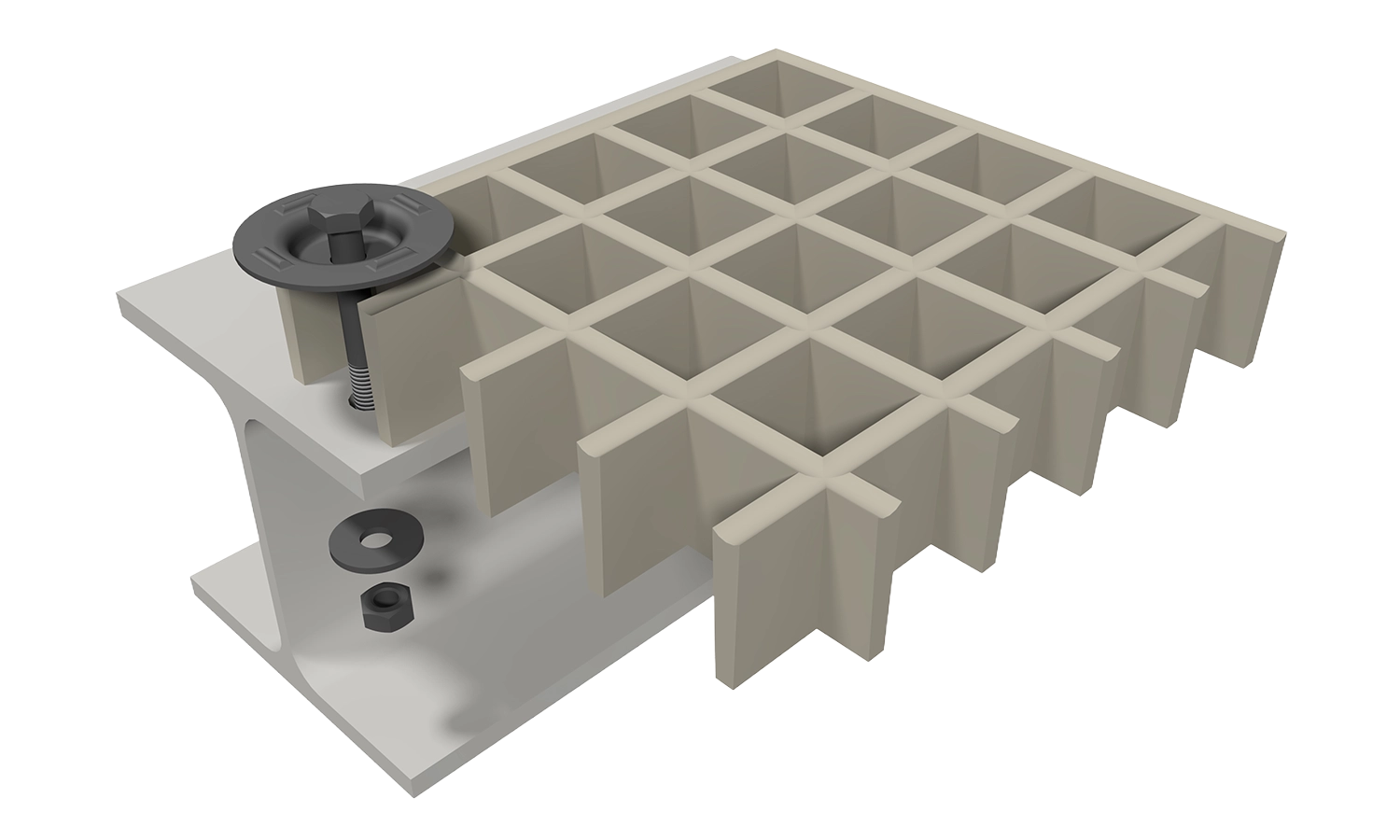

GRP direct screw connection M0400
Consisting of deep-drawn upper part of plate, hexagon head screw M8 (length as required), washer 8.4 mm & self-locking hexagon nut M8.

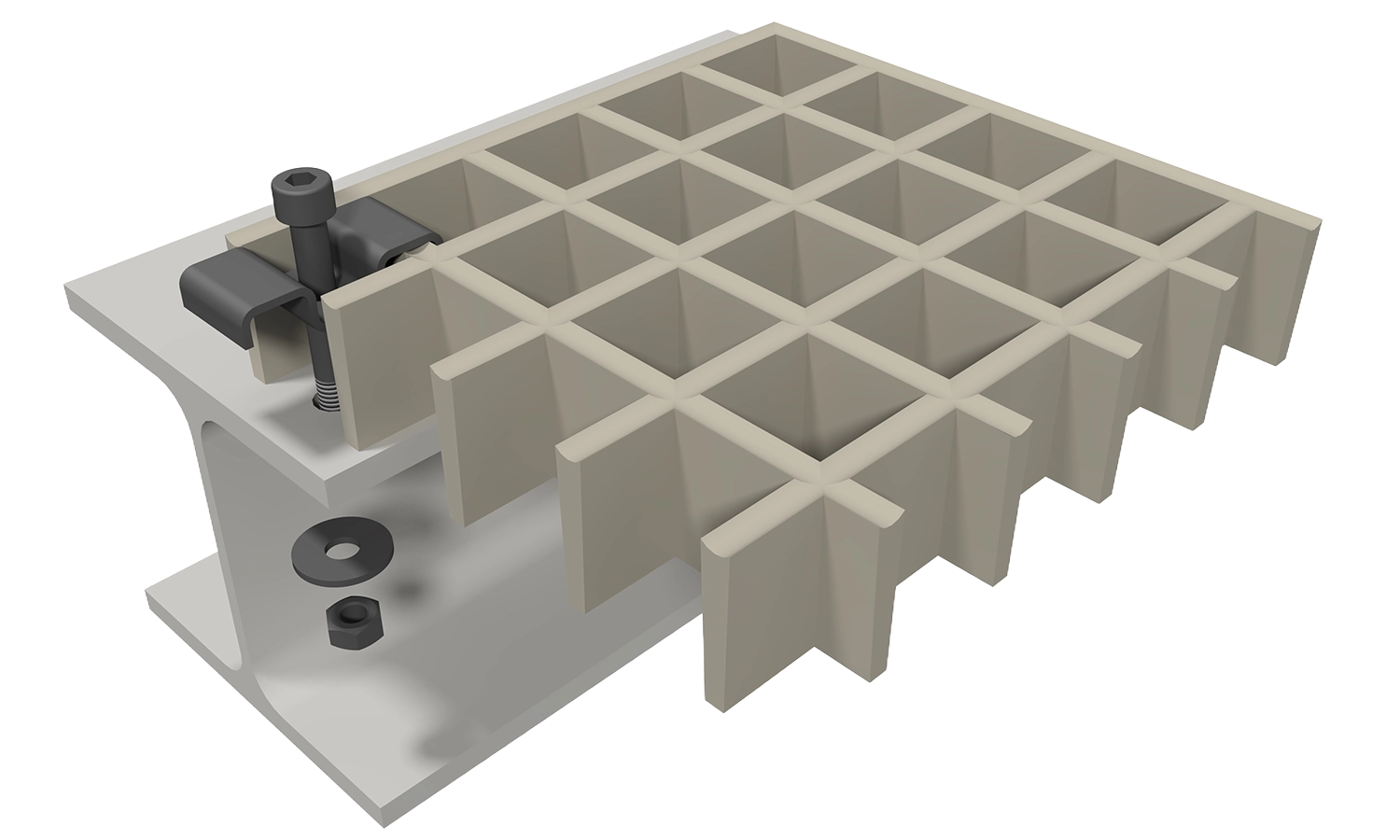

FRP Direct Screw Connection M7400
Consisting of deep-drawn upper part of bracket, cylinder head screw M8 (length as required), washer 8.4 mm & self-locking hexagon nut M8.

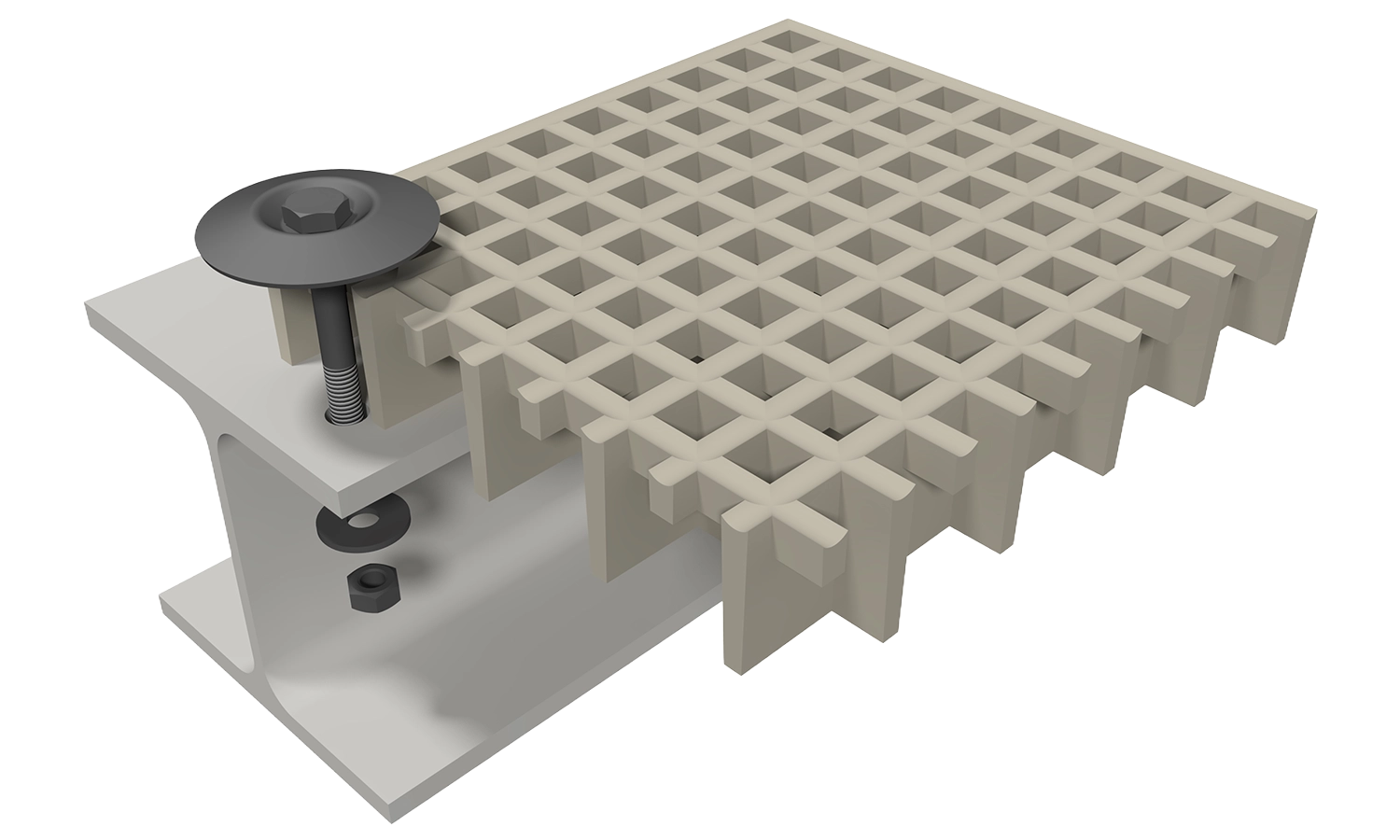

GRP direct screw connection M2900
Consisting of an overlying upper plate part, hexagon head bolt M8 (length as required), washer 8.4 mm & self-locking hexagon nut M8.

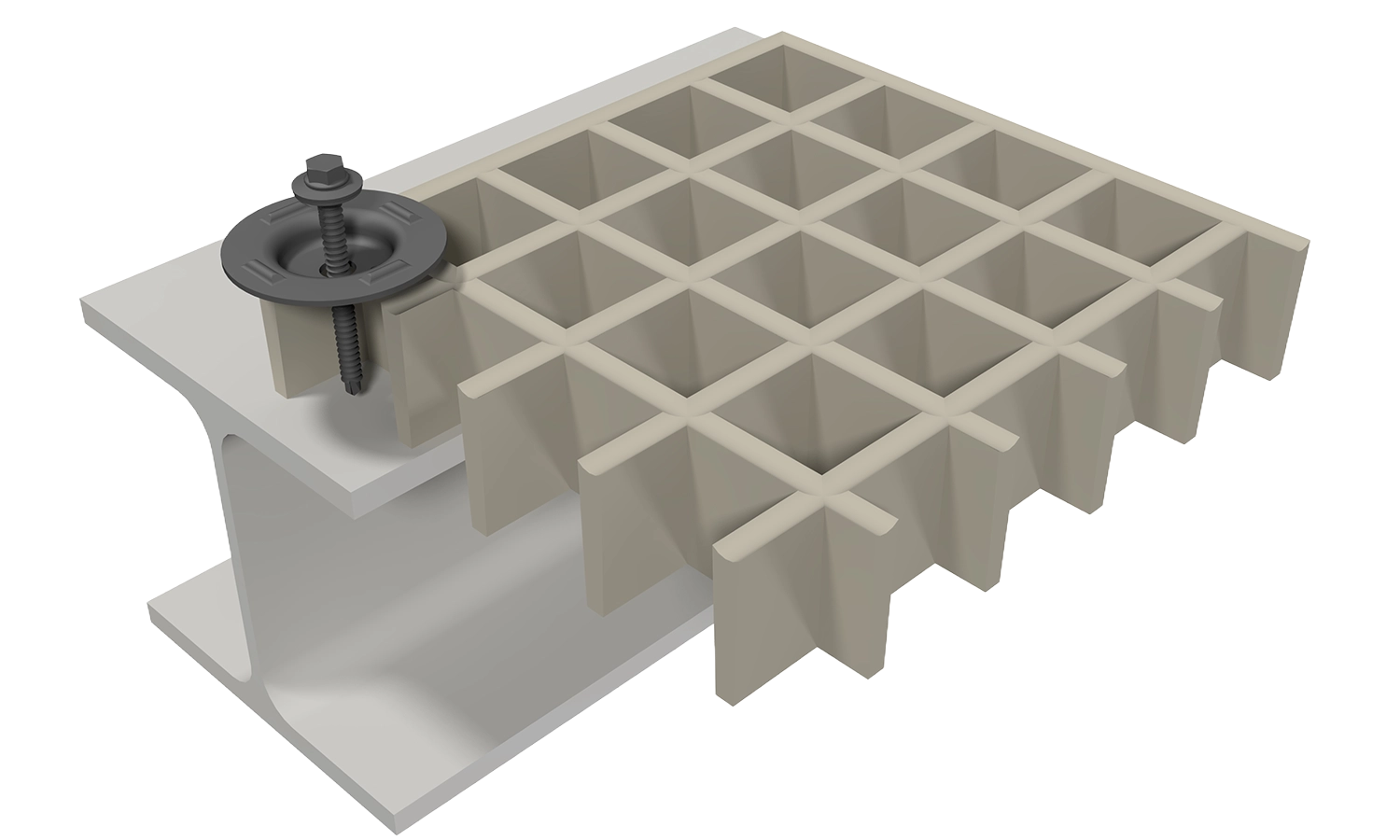

GRP direct screw connection M0400 drill hole
Direct screw connection consisting of deep-drawn upper plate part & drilling screw (design & length as required).

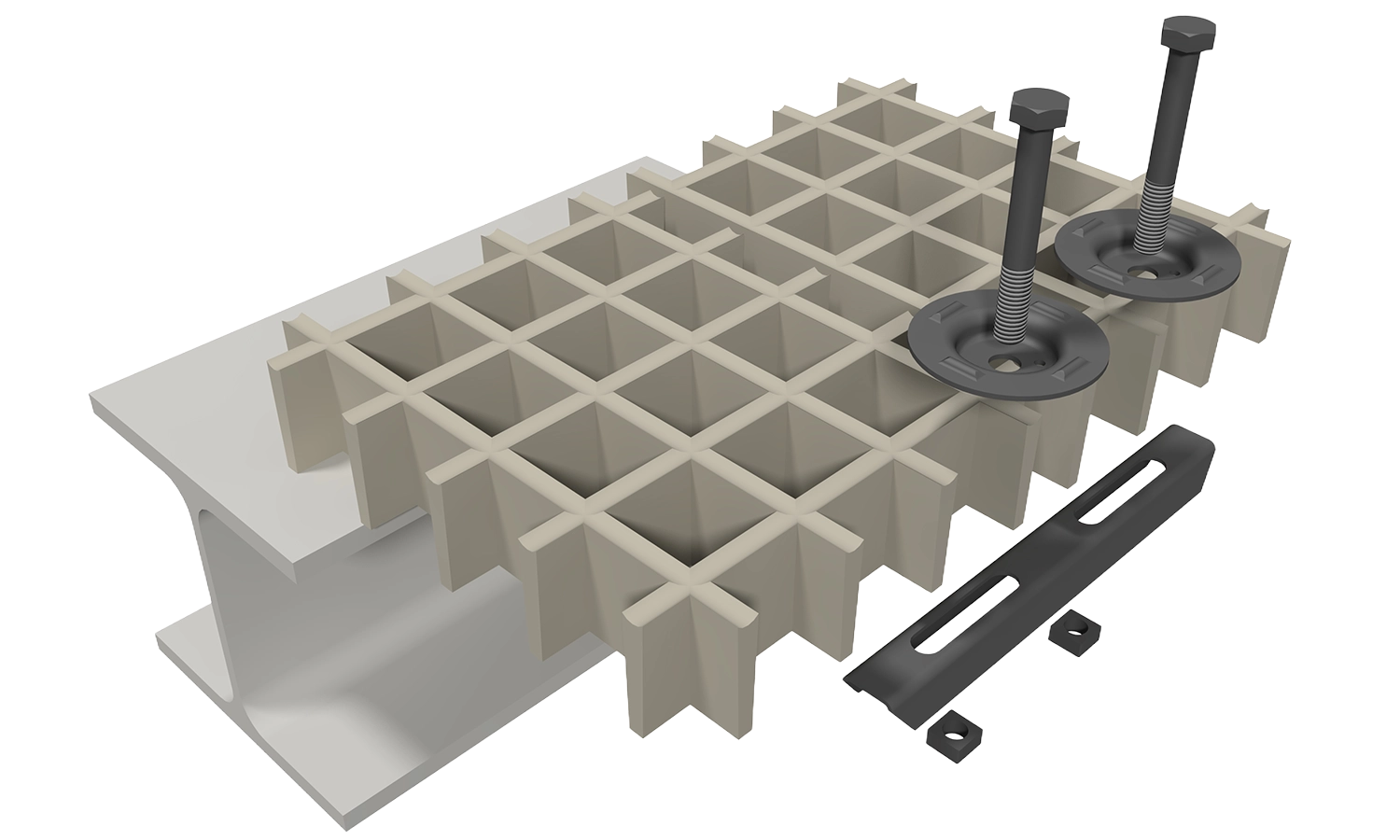

GRP double clamp V M0440
Double clamp V consisting of 2 x deep-drawn upper plate part, lower clamp part, 2 x hexagon head screw M8 (length as required) and 2 x square nut M8.

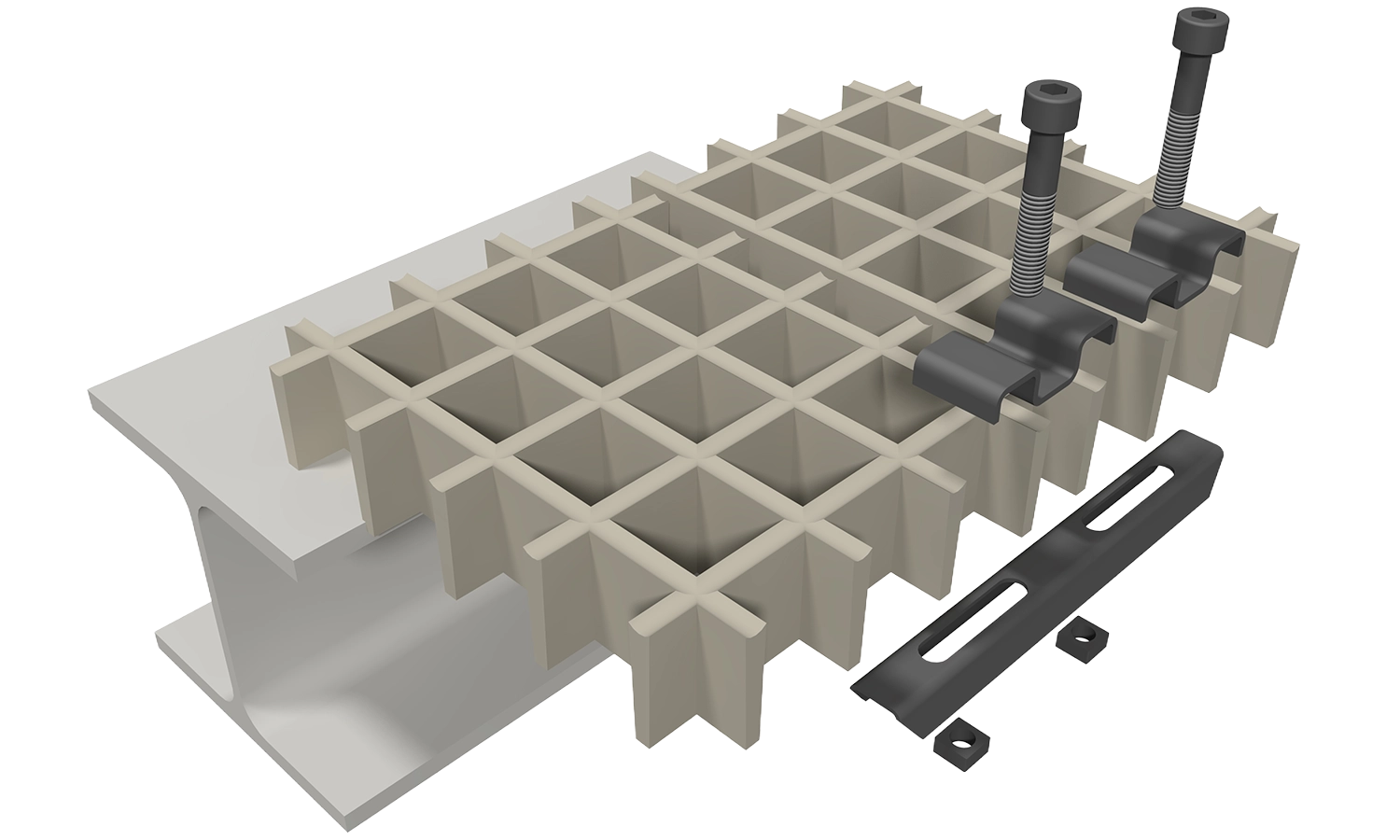

FRP Double Clamp V M7440
Double clamp V consisting of 2 x deep-drawn upper clamp parts, lower clamp part, 2 x hexagon head screws M8 (length as required) and 2 x square nuts M8.

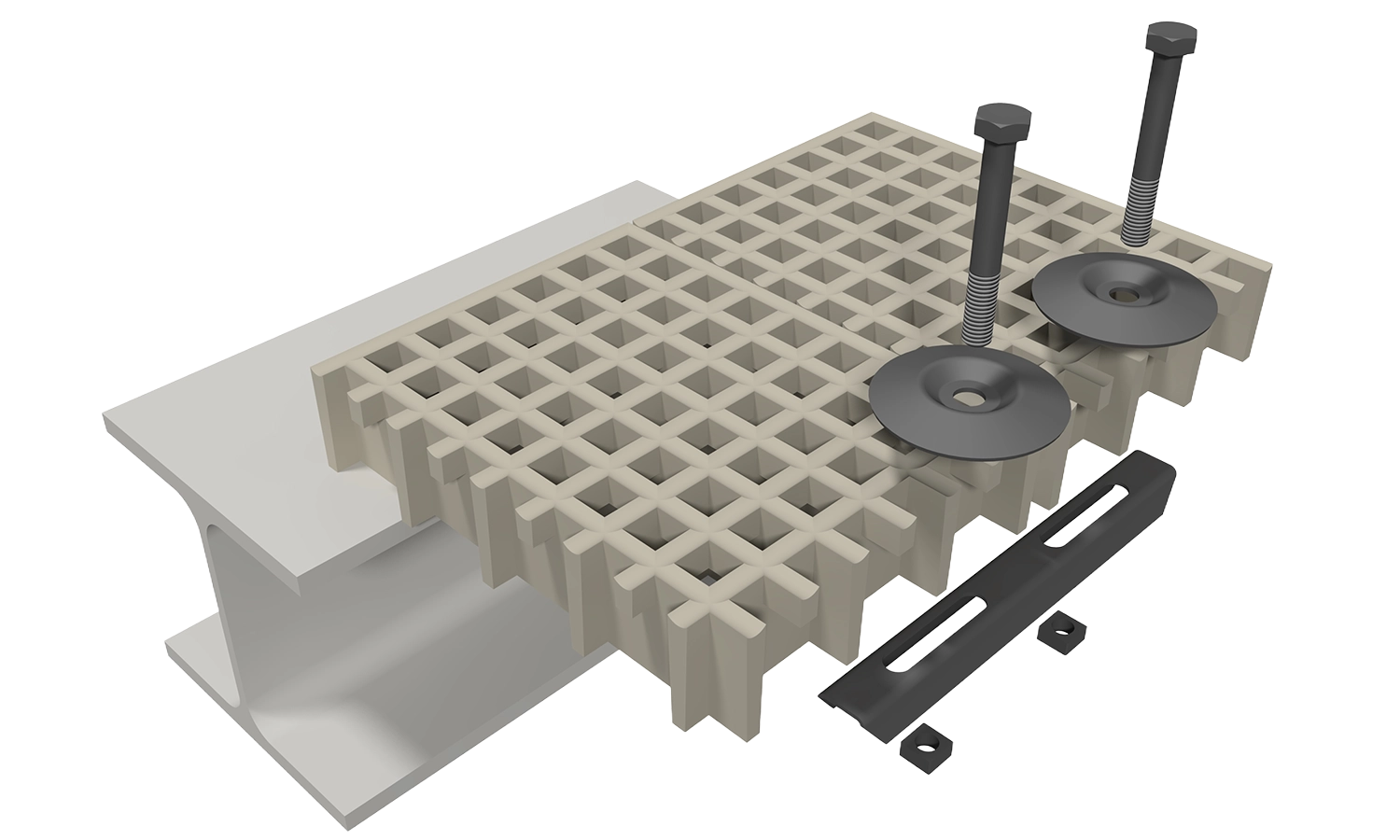

GRP double clamp V M2940
Double clamp V consisting of 2 x overlying upper plate part, lower clamp part, 2 x hexagon head screw M8 (length as required) and 2 x square nut M8.

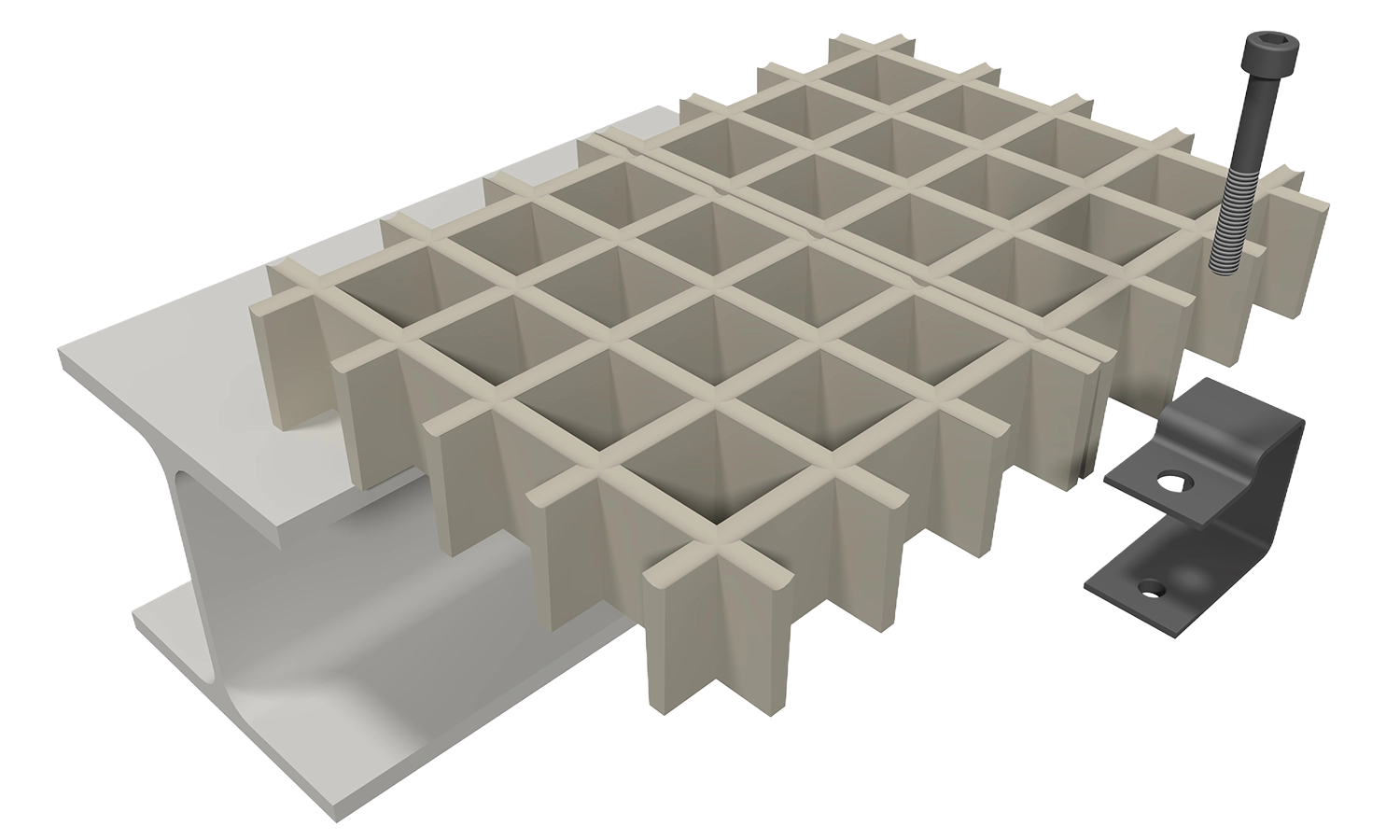

GRP grate joint connector
Consisting of C-clamp and cylinder head screw M8.

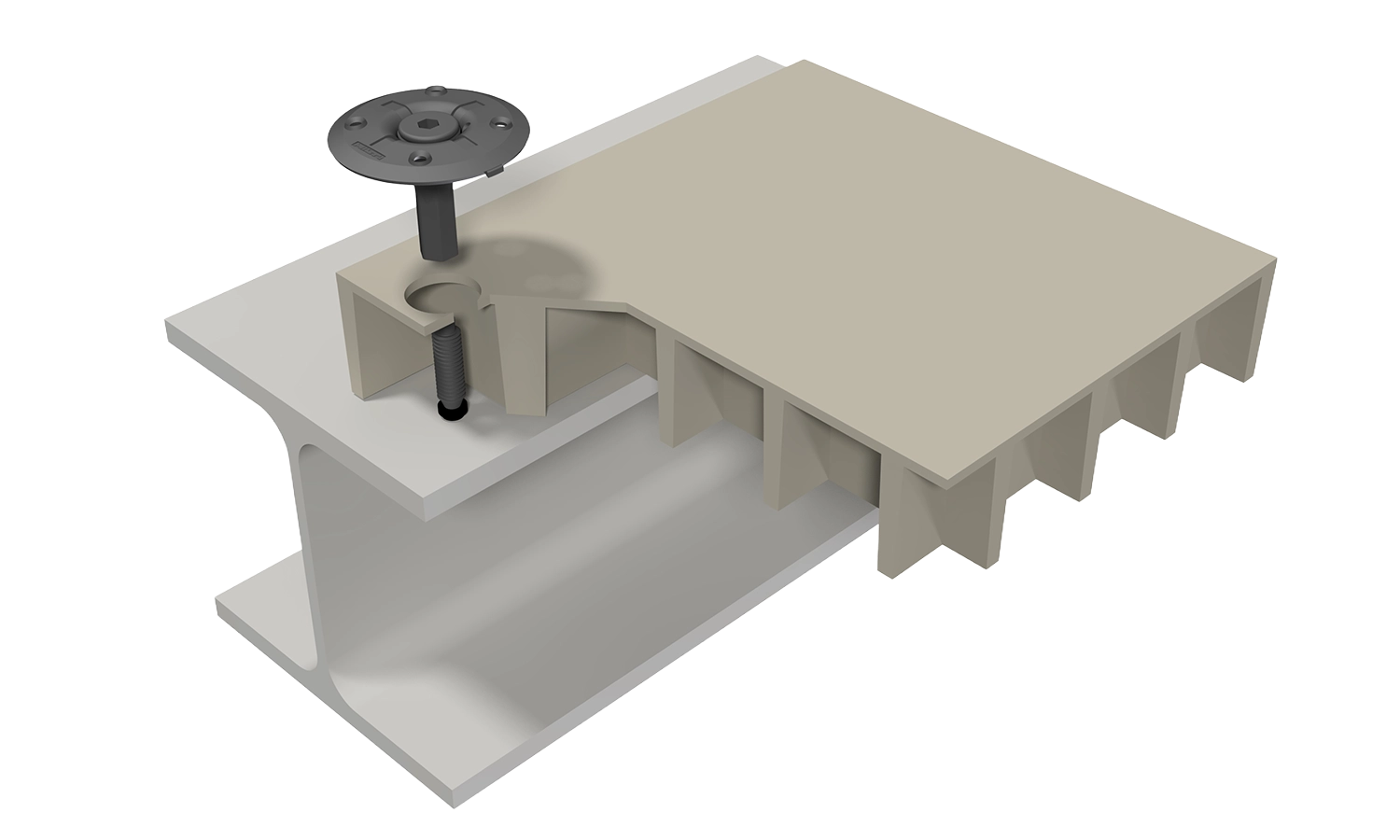

GRP set bolt fastening
Fixing bolt fastening consisting of retaining flange (length as required) and threaded nail.
