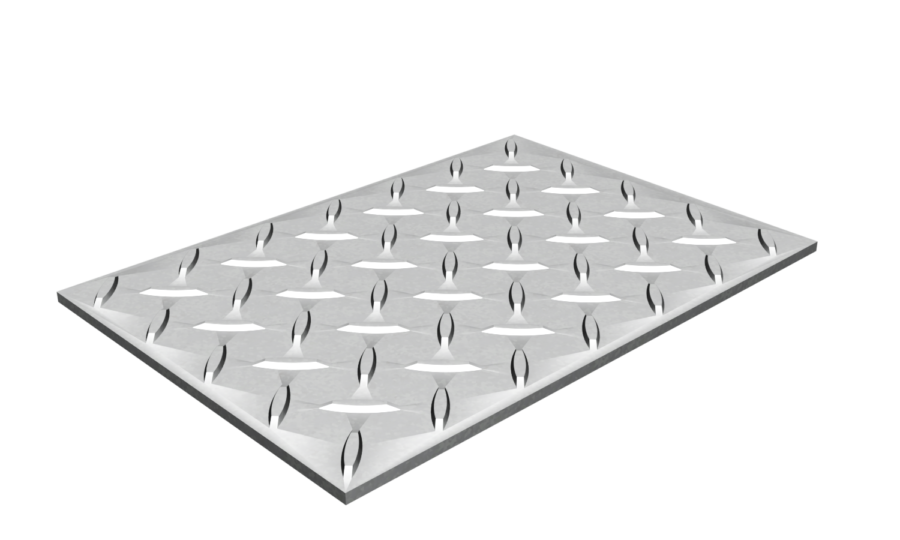

Chequer Plates
MEISER aluminium chequer plates provide a robust flooring solution for walkways, work areas, transition zones and other surfaces requiring enhanced slip resistance.
Your contact persons GratingsThe embossed surface enhances grip while promoting efficient drainage of water and debris.
Depending on the substrate, the plates can be fixed directly to the floor using countersunk screws or adhesive.
| Material | Thickness (mm) | Length (mm) | Width (mm) | Mass (kg/p) |
|---|---|---|---|---|
| Raw aluminum color EN 5754 AlMg3 H114 | 2/3,5 | 2.000 | 1.000 | 12,0 |
| 2/3,5 | 3.000 | 1.500 | 28,5 | |
| 5/6,5 | 2.000 | 1.000 | 30,0 | |
| 5/6,5 | 3.000 | 1.500 | 66,0 |
Key Features
- Slip resistance class R9
- Manufactured from raw aluminium AlMg3 H114
- Improved slip resistance and drainage
- Direct floor installation
- Screw-fixed or bonded installation
- Available in various sheet thicknesses and formats
