Profile Planking

Stepclair N

Stepclair N features a highly slip-resistant surface together with excellent drainage performance.

Your contact persons

Typical applications include industrial service platforms, walkways, stair treads and scaffold planks.

Here you'll find the right contact person for Gratings

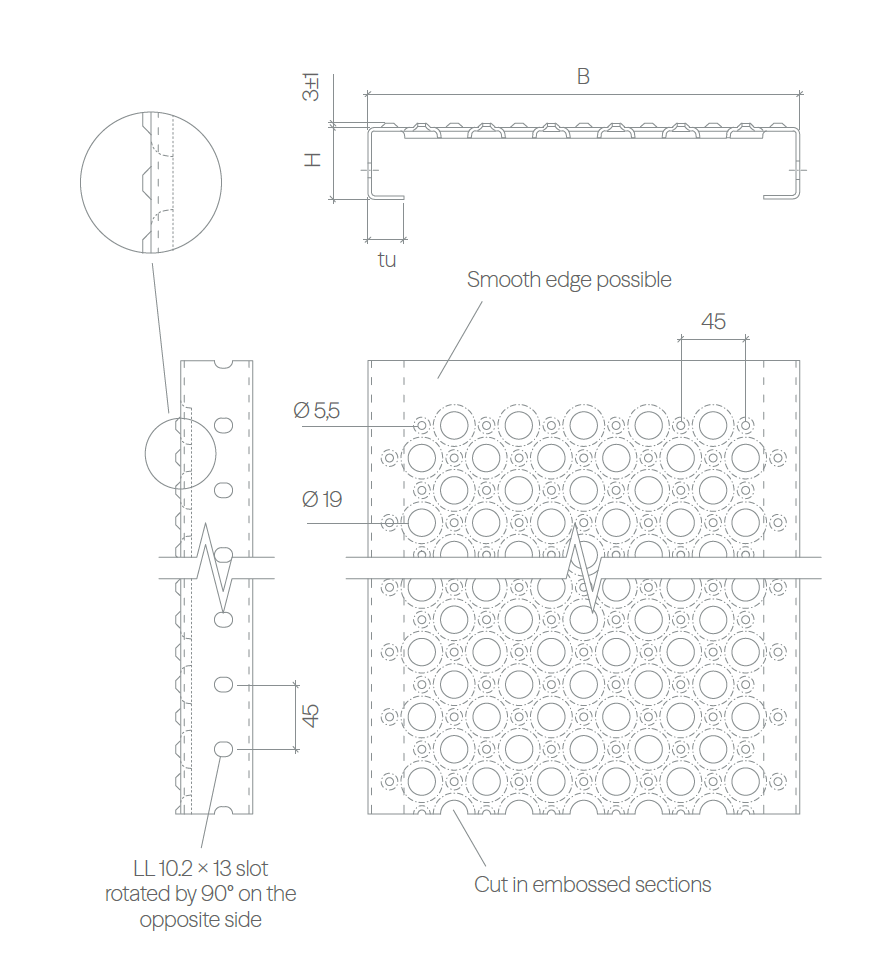

Dimensions

Material	Sheet thickness	Rating RH
Raw steel / hot-dip galvanized [DD11]	2,0 / 2,5 / 3,0	R13
Sendzimir galvanized steel [DX51]	2,0 / 2,5 / 3,0	R13
Aluminum [AIMg3]	2,5 / 3,0	R13
Stainless steel [1.4301]	2,0	R12

Preferred widths	182 / 240 / 298 / 330 / 356 variable
Preferred heights	40 / 50 / 75 / 100 other heights on request
Lengths	up to max. 6,030 mm
Length divider	45

Matching accessories

Attachments for Stepclair N

MEISER: BPR Universal clamp — MEISER - BPR Universal clamp

BPR Universal clamp

Cast iron clamp for mounting from below, available in different versions.

MEISER: BPR Cast metal washer with countersunk hole — MEISER - BPR Cast metal washer with countersunk hole

BPR Cast metal washer with countersunk hole

Upper fixing part for Formstep N and Formstep 06, all Stepclair and Airstep molds.

MEISER: BPR Plastic grommet with countersunk hole — MEISER - BPR Plastic grommet with countersunk hole

BPR Plastic grommet with countersunk hole

Mounting top for all Stepclair and Airstep shapes.

MEISER: BPR Fast fixing — MEISER - BPR Fast fixing

BPR Fast fixing

Clamp connection with countersunk head screw M8.

MEISER: BPR Flange — MEISER - BPR Flange

BPR Flange

Clamp connection with cage nut and countersunk head screw M8.
