Press-Welded Gratings with Smooth Round Bars

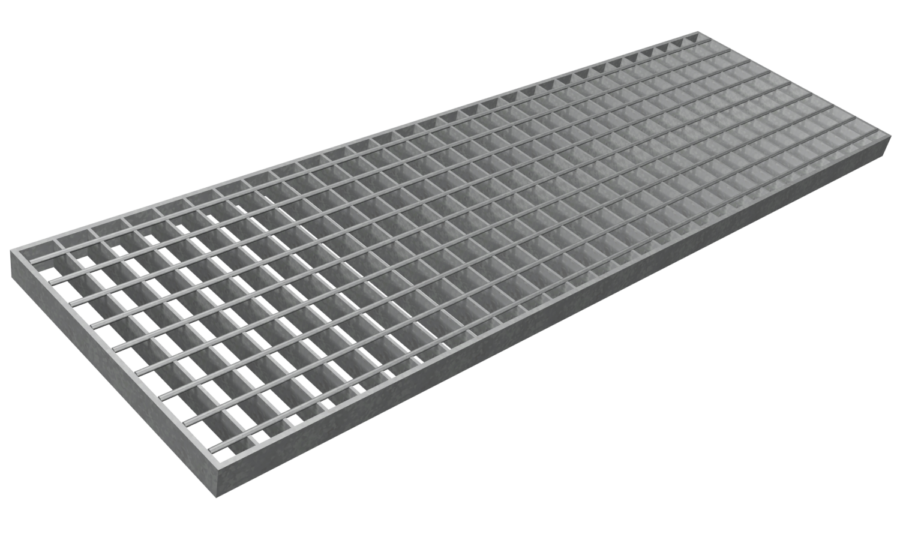

While standard press-welded gratings are manufactured with twisted square cross bars to provide enhanced slip resistance, smooth round bars can be used where architectural appearance takes priority.

Your contact persons

Available for all standard mesh sizes, this version offers a cleaner, more refined appearance and is therefore particularly well suited to visible architectural applications.

The proven strength of the press-welded construction remains unchanged, as every intersection is permanently resistance-welded. Materials, surface finishes, edging profiles and dimensions can all be customised to meet the structural and aesthetic requirements of each project.

Here you'll find the right contact person for Gratings

Common mesh divisions

Bearing bar	Cross bar
15,08	-	-	-	38,1	50,8	76,2	101,6
17,15	-	-	-	38,1	50,8	76,2	101,6
20,77	-	24,0	-	38,1	50,8	76,2	101,6
23,69	-	24,0	-	38,1	50,8	76,2	101,6
25,00	-	-	-	-	-	76,2	101,6
30,15	-	-	-	38,1	50,8	76,2	101,6
34,30	19,25	24,0	-	38,1	50,8	76,2	101,6
41,45	-	24,0	-	38,1	50,8	76,2	101,6
45,23	-	-	-	38,1	50,8	76,2	101,6
51,45	-	-	-	38,1	50,8	76,2	101,6
60,30	-	24,0	-	38,1	50,8	76,2	101,6
68,60	-	24,0	-	38,1	50,8	76,2	101,6

Standard bearing bar profiles

Bearing bar 2 mm	Bearing bar 3 mm	Bearing bar 4 mm	Bearing bar 5 mm
25/2	25/3	25/4	25/5
30/2	30/3	30/4	30/5
35/2	35/3	35/4	35/5
40/2	40/3	40/4	40/5
45/2	45/3	45/4	45/5
-	50/3	50/4	50/5
-	60/3	60/4	60/5
-	70/3	70/4	70/5
-	-	80/4	80/5

Matching accessories

Attachments for Press-Welded Gratings with Smooth Round Bars

MEISER: Safety clamp A — MEISER - Safety clamp A

Safety clamp A

Consisting of upper safety part, lower clamp part, hexagon bolt and square nut.

MEISER: Double clamp B — MEISER - Double clamp B

Double clamp B

Consists of 2 upper bracket parts, lower clamp part, 2 hexagon bolts and 2 square nuts.

MEISER: Welded-in holed fixing plates — MEISER - Welded-in holed fixing plates

Welded-in holed fixing plates

Consist of welded-in perforated plates, the design and position of the perforated plates depend on the load on the grating.

MEISER: Grating Heald bolt fastener — MEISER - Grating Heald bolt fastener

Grating Heald bolt fastener

Consisting of bolt and plate.

MEISER: Grating butt joint — MEISER - Grating butt joint

Grating butt joint

Consisting of upper part and lower part with thread and hexagon socket screw.

MEISER: Clamp B — MEISER - Clamp B

Clamp B

Consisting of upper part of bracket, lower part of clamp, hexagonal bolts M8x60 and square nut M8.

MEISER: Clamp B 10 — MEISER - Clamp B 10

Clamp B 10

Consisting of upper part of bracket, hexagon socket screw, lower part of bracket and nut.

MEISER: Clamp S — MEISER - Clamp S

Clamp S

Consists of flat-head screw, clamp base and square nut.

MEISER: Safety clamp D — MEISER - Safety clamp D

Safety clamp D

Consisting of upper safety part, lower clamp part, hexagon bolt and square nut.

MEISER: Hilti clamp – XMGR — MEISER - Hilti clamp – XMGR

Hilti clamp – XMGR

High resistance to vibrations, easy installation and therefore significantly shorter installation times characterize this mounting.

Our references

MEISER solutions in use

All references at a glance
