Gratings

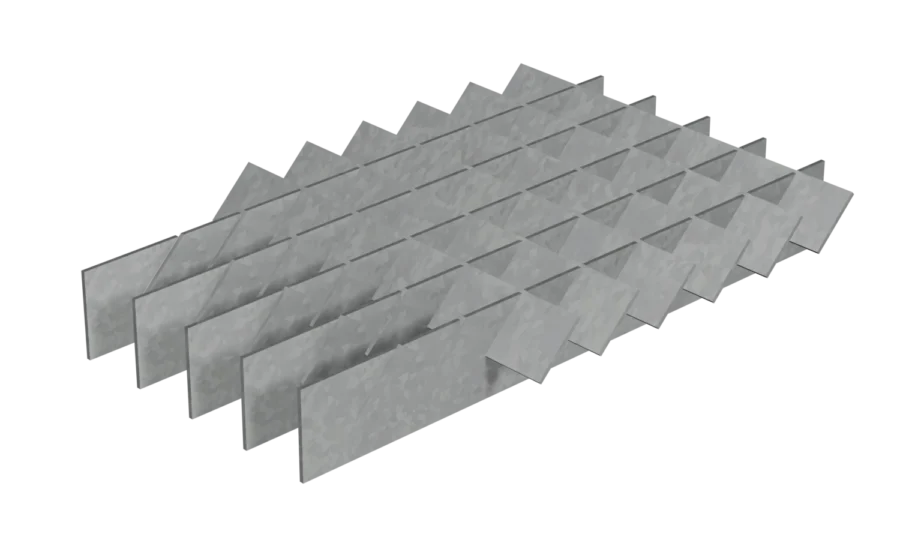

Louvre Gratings
Where reduced visibility or controlled screening is required, louvre gratings provide an effective solution. Their applications extend far beyond walkways, bridges and transition areas.
Your contact persons GratingsLouvre gratings are also widely used as sun-shading elements, façade cladding, ventilation screens and suspended ceiling systems. MEISER manufactures louvre gratings in steel, aluminium and stainless steel.
The louvre bars can be set at angles of 15°, 30° or 45°, allowing different levels of visibility and light transmission. The maximum installation depth is 100 mm. Please note that a 15° louvre angle is only technically feasible with a bearing bar thickness of 3 mm. Our technical specialists will be happy to advise you on the most suitable configuration.
Common mesh divisions
| Bearing bar | Cross bar | ||
|---|---|---|---|
| 33,3 | 22,2 | 33,3 | 66,6 |
| 66,6 | 22,2 | 33,3 | 66,6 |
| 99,9 | 22,2 | 33,3 | 66,6 |
Standard bearing bar profiles
| Bearing bar 2 mm | Bearing bar 3 mm |
|---|---|
| 30/2 | 30/3 |
| 35/2 | 35/3 |
| 40/2 | 40/3 |
| 45/2 | 45/3 |
| 50/2 | 50/3 |
| - | 60/3 |
| - | 70/3 |
| - | 80/3 |
| - | 90/3 |
| - | 100/3 |
Matching accessories
Attachments for Louvre Gratings
Welded-in holed fixing plates
Consist of welded-in perforated plates, the design and position of the perforated plates depend on the load on the grating.
