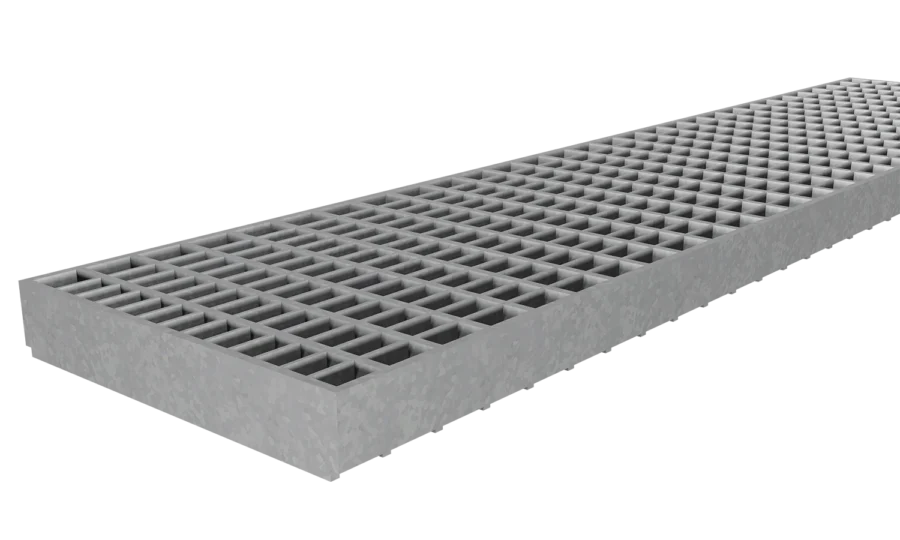

Gutter Gratings
MEISER gutter gratings are manufactured in steel, stainless steel or aluminium to suit the intended application, environmental conditions and load requirements. They are available in sizes up to 300 × 1,500 mm and can be designed for applications ranging from pedestrian traffic to heavy vehicle loads.
Your contact persons GratingsWith a production capacity of approximately 20,000 units per month, we can reliably supply both standard and large-volume projects.
Each gutter grating is individually engineered to suit the required span, loading conditions and intended use. Our in-house structural analysis and testing facilities ensure dependable performance, while early involvement of our Research & Development team enables customised solutions that combine technical performance, cost efficiency and operational safety.
Common mesh spacings for bearing bars from 2 to 3 mm
| Common mesh divisions | ||||||
|---|---|---|---|---|---|---|
| Bearing bar | Cross bar | |||||
| 22,2 | 11,1 | 22,2 | 33,3 | 44,4 | 66,6 | 99,9 |
| 33,3 | 11,1 | 22,2 | 33,3 | 44,4 | 66,6 | 99,9 |
| 44,4 | 11,1 | 22,2 | 33,3 | 44,4 | 66,6 | 99,9 |
| 66,6 | 11,1 | 22,2 | 33,3 | 44,4 | 66,6 | 99,9 |
| 99,9 | 11,1 | 22,2 | 33,3 | 44,4 | 66,6 | 99,9 |
Common mesh spacings for bearing bars from 4 to 5 mm
| Standard bearing bar profiles | |
|---|---|
| Bearing bar 2 mm | Bearing bar 3 mm |
| 20 x 2 | 20 x 3 |
| 25 x 2 | 25 x 3 |
| 30 x 2 | 30 x 3 |
| 35 x 2 | 35 x 3 |
| 40 x 2 | 40 x 3 |
