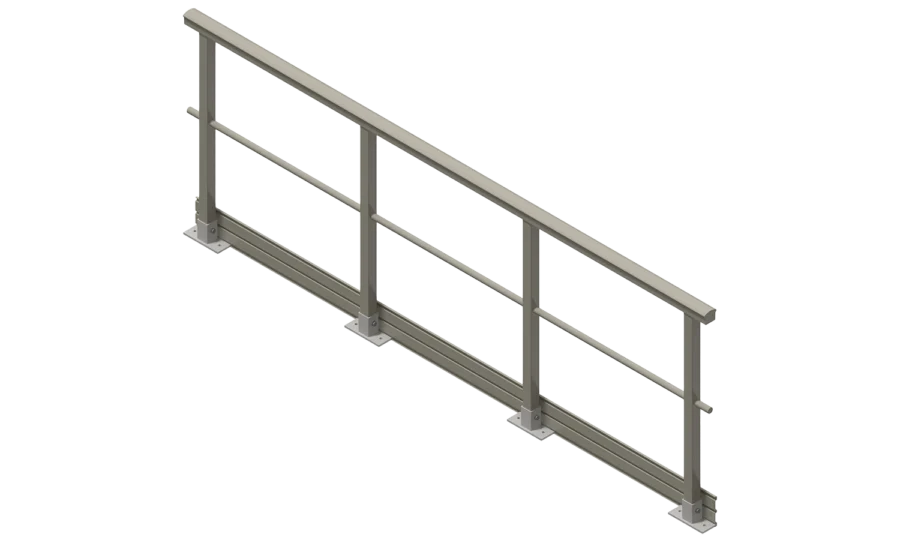

GRP Standard Guardrail

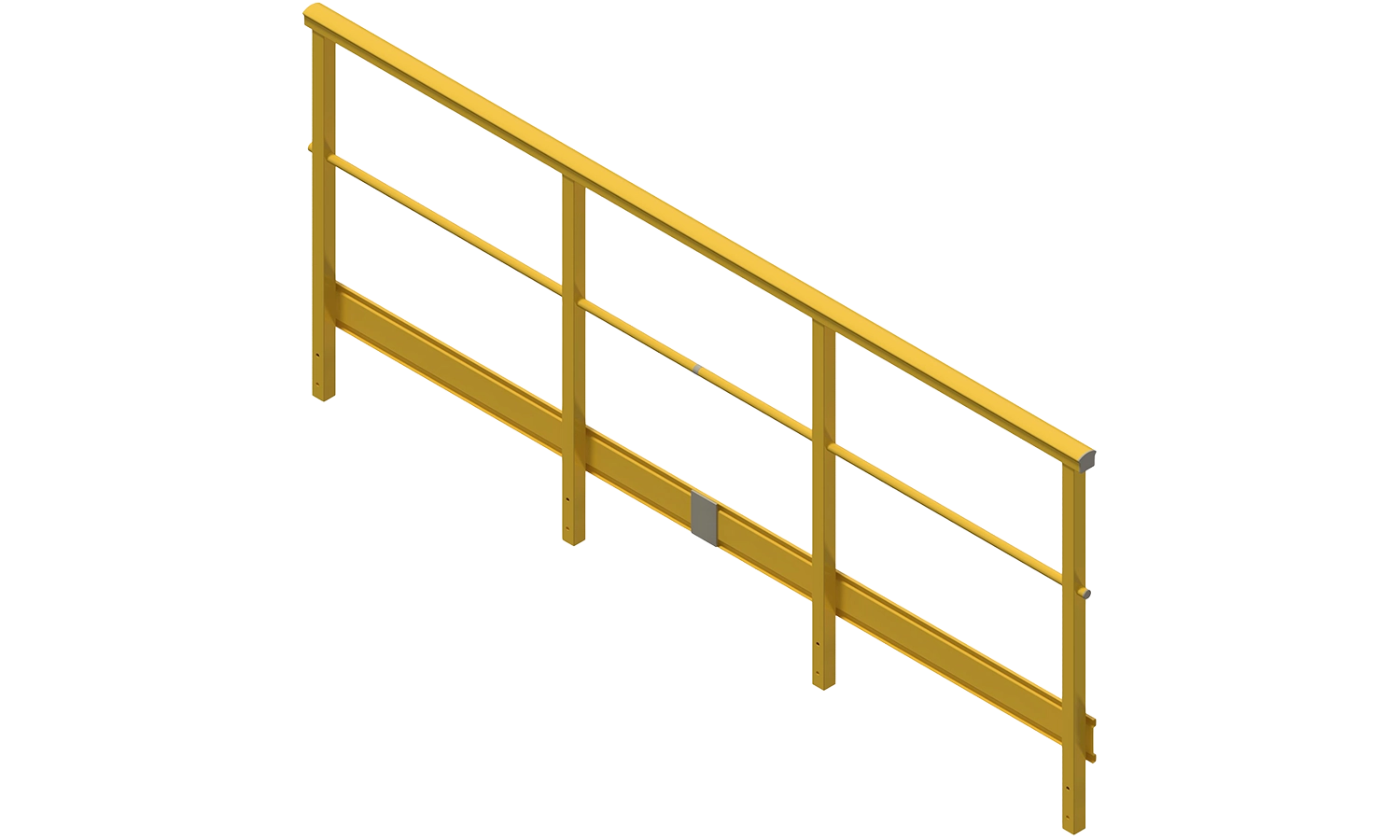

The MEISER GRP Standard Guardrail complies with DIN EN ISO 14122-3 and consists of an ergonomically shaped handrail, single or double knee rail and toe board.
Your contact persons GratingsDepending on structural requirements, post sections of 50 × 50 mm or 60 × 60 mm are available.
The system is supplied complete with all connectors for handrails, knee rails and toe boards. Installation is possible either by side mounting or by using specially designed GRP or steel base shoes.

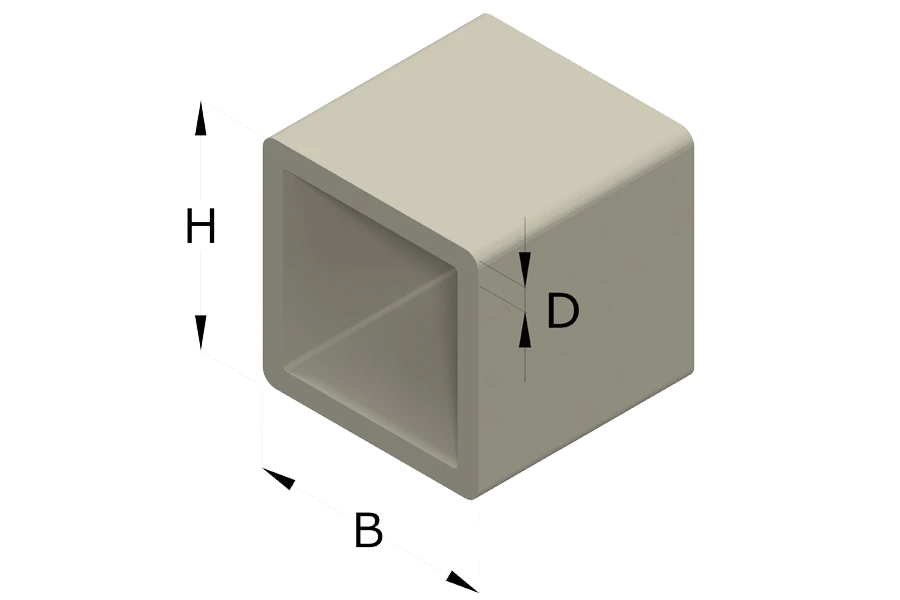

Post (square tube)
| Dimension [H/W x D] | Designation according to EN 13706 | ~ Weight/m |
|---|---|---|
| 50 x 5.0 mm | QR 50x50/5 EN13706-BGV-IFU E23 | 1.62 kg |
| 60 x 4.5 mm | QR60x60/4.5 EN13706-BGV-IFU E23 | 1.88 kg |

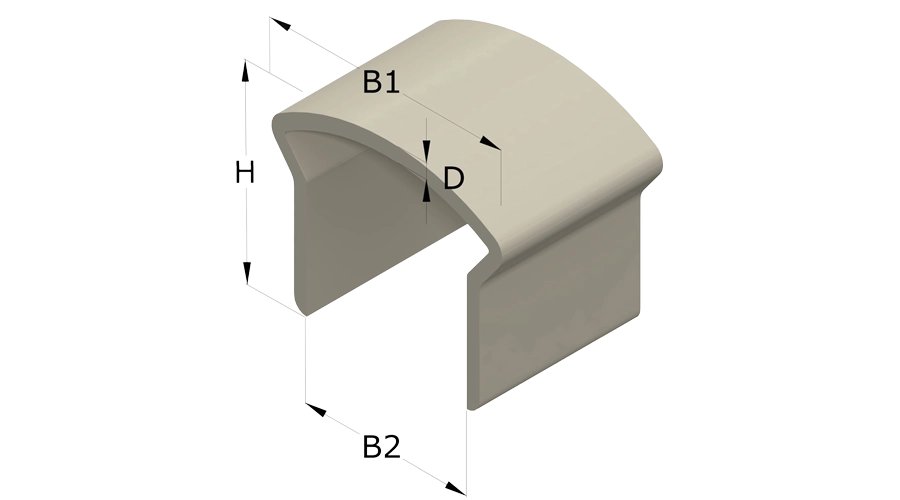

Handrails
| Dimension [B1 X B2 X H X D] | Designation according to EN 13706 | ~ Weight/m |
|---|---|---|
| 70 x 50 x 54 x 4 mm | O 70x50/4 EN 13706-ZGV-IFU E23 | 1.14 kg |
| 80 x 60 x 54 x 4mm | O 80x60/4 EN 13706-ZGV-IFU E23 | 1.19 kg |
Knee strap (round tube)

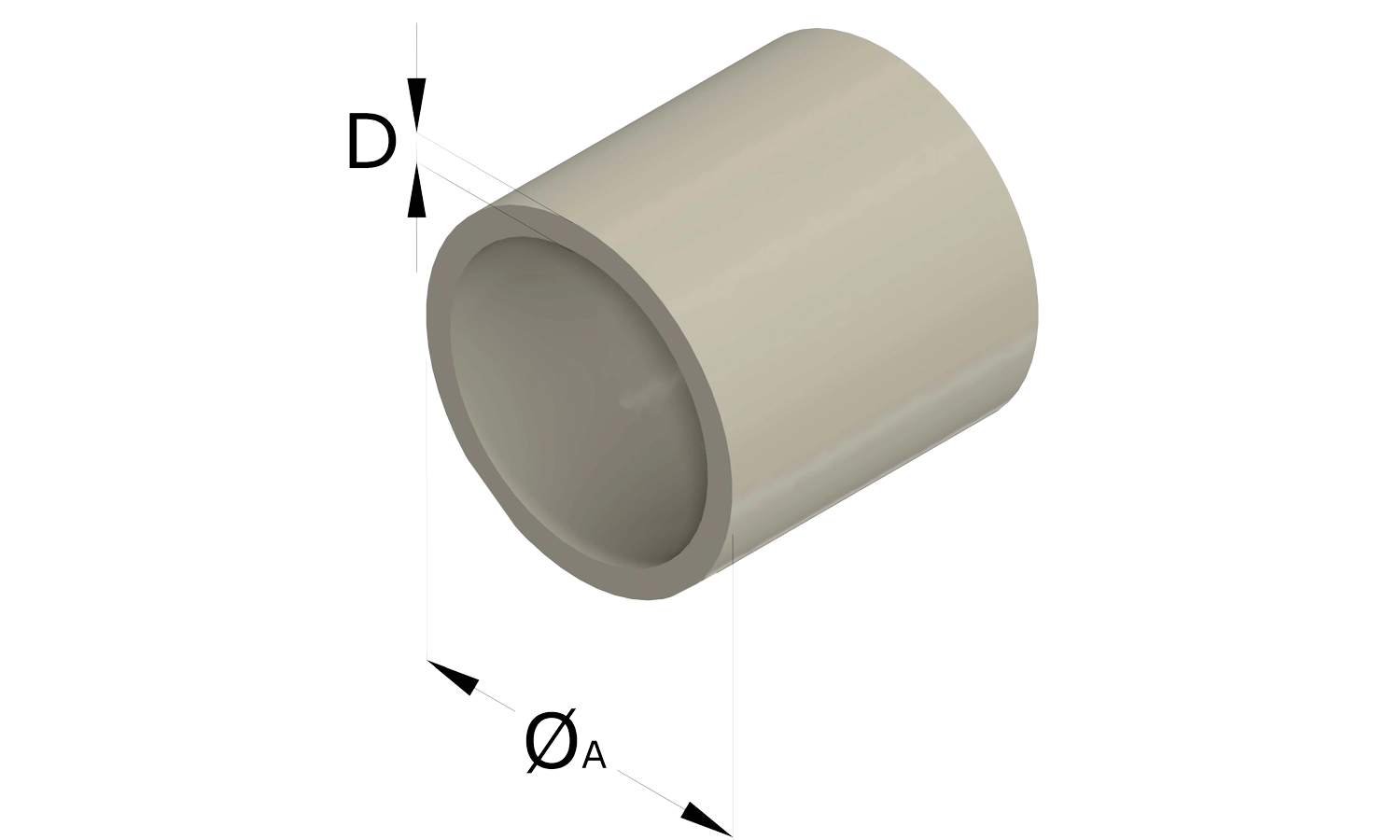

| Dimension [ØA x D] | Designation according to EN 13706 | ~ Weight/m |
|---|---|---|
| 30 x 2.8 mm | R30/2.8 EN 3706.OGV-IFU E17 | 0.48 kg |
| 40 x 4 mm | R40/4 EN13706-OGV-IFU E23 | 0.90 kg |
Baseboard

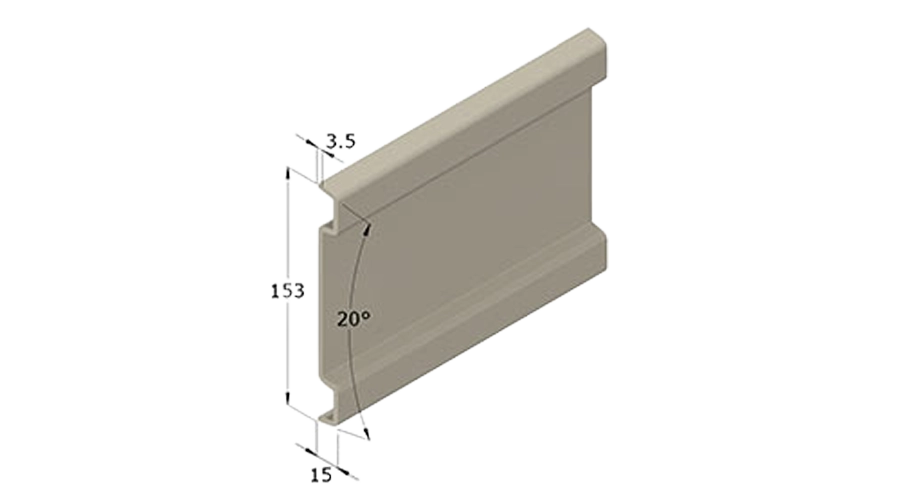

| Dimension | Designation according to EN 13706 | ~ Weight/m |
|---|---|---|
| 153 x 15 x 3.5 mm | Fl 153x15/3.5 EN13706-ZGV-IFU E17 | 1.24 kg |
Detailed views

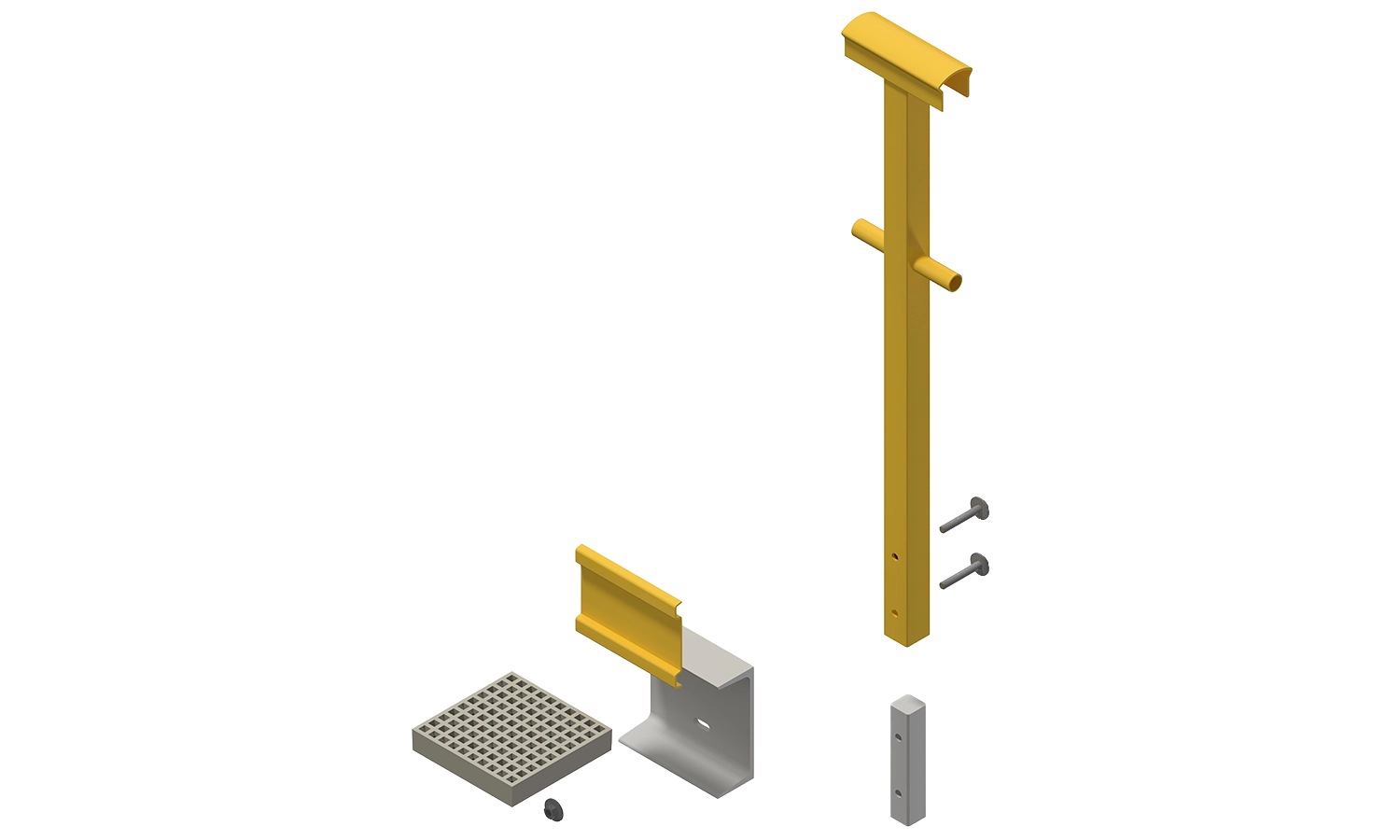

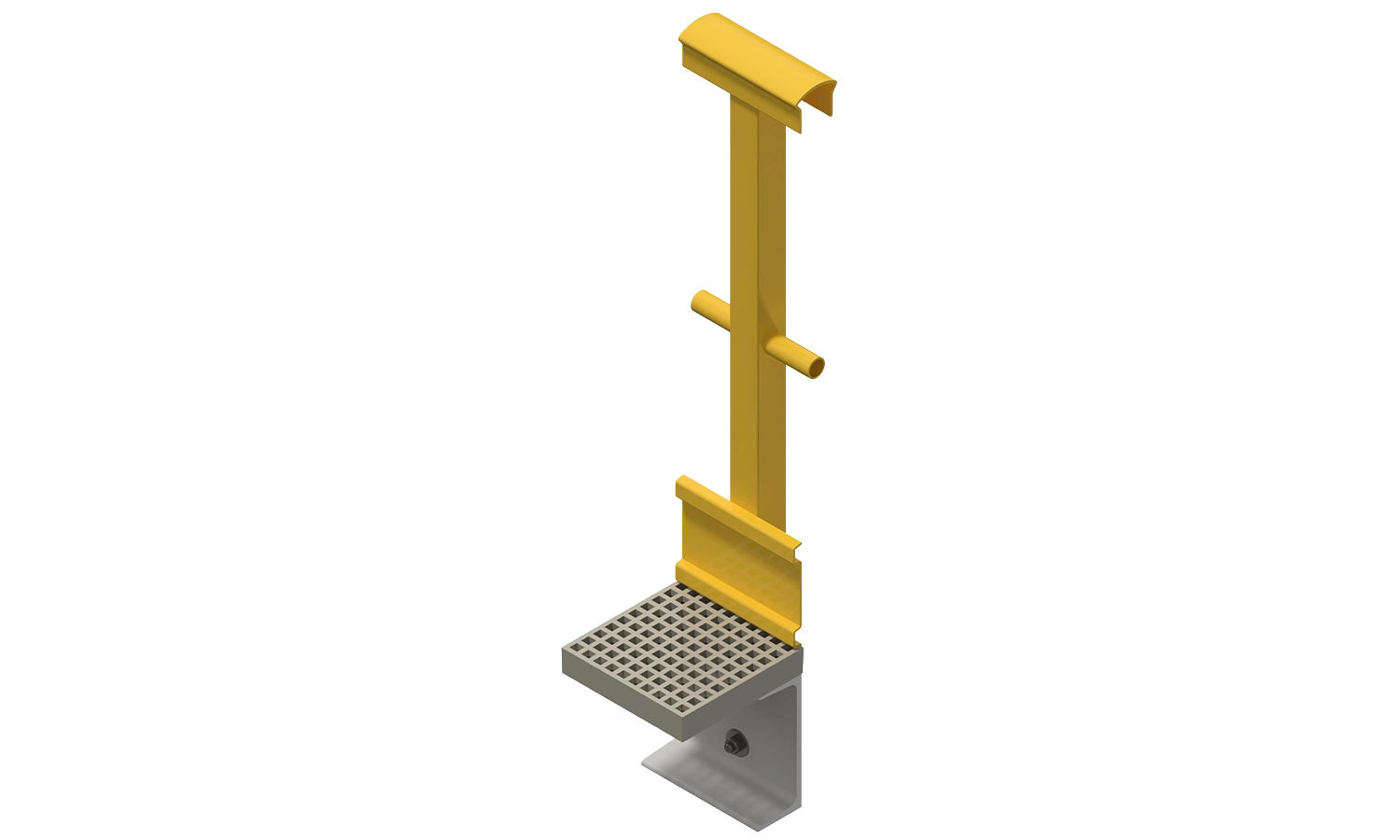

Connection lateral screwed

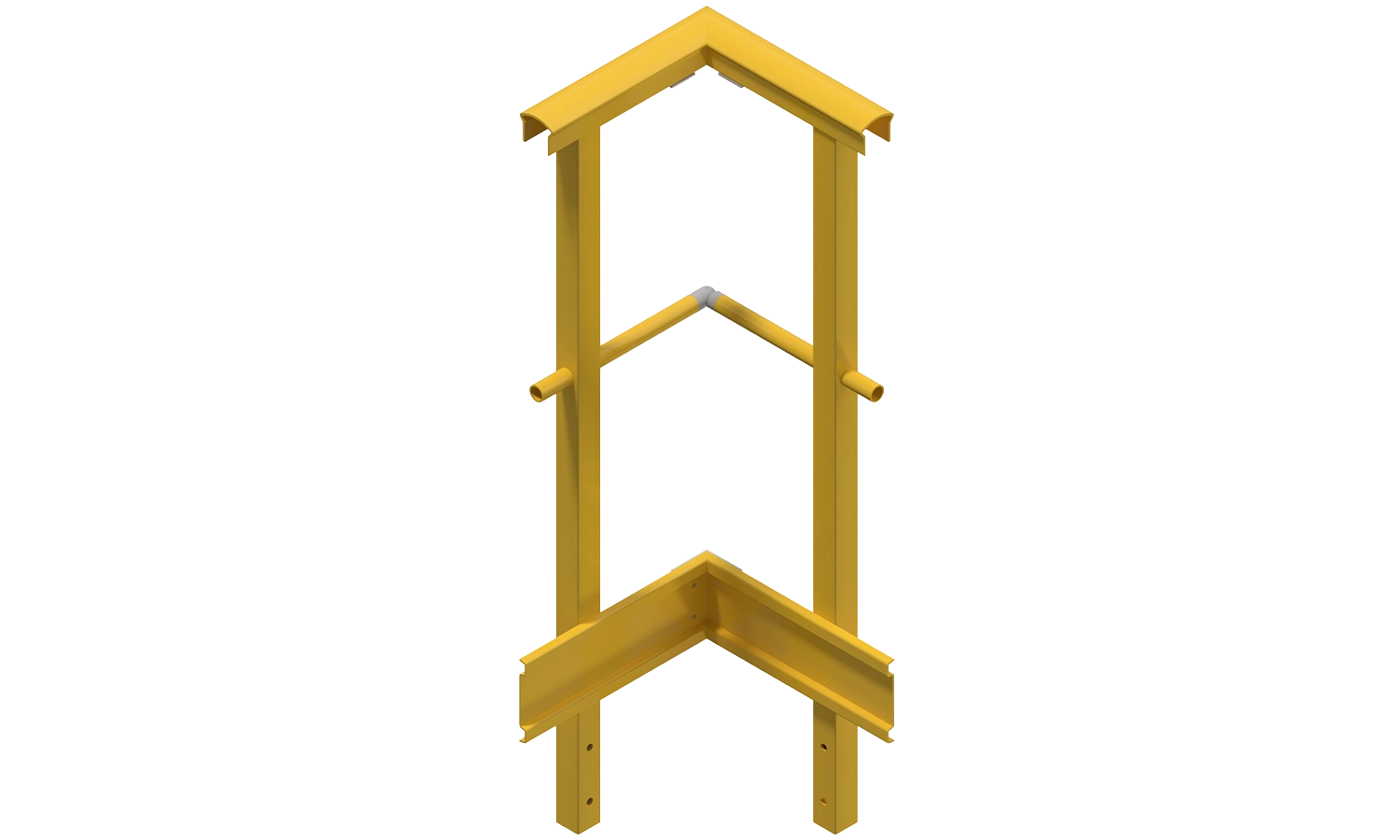

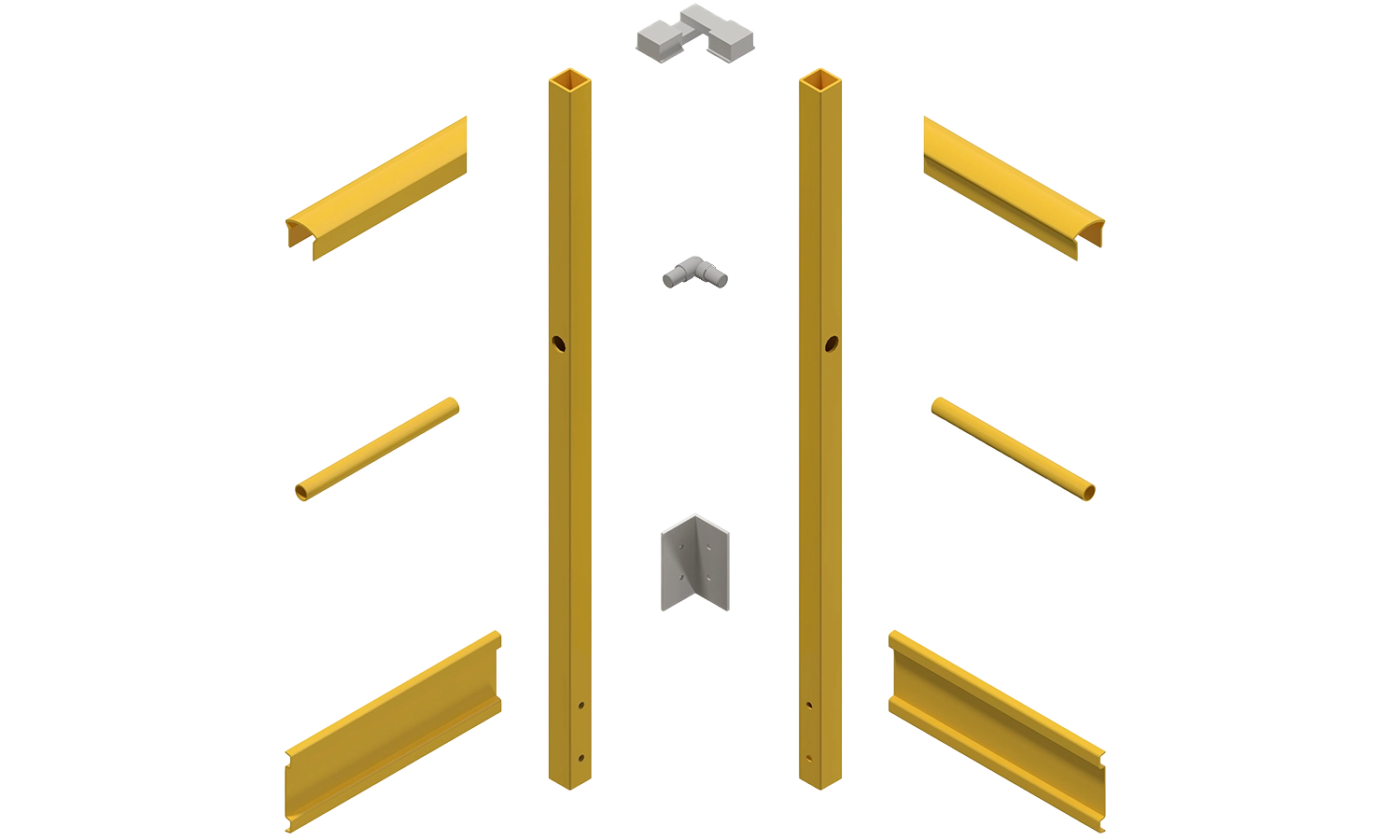

Corner situation

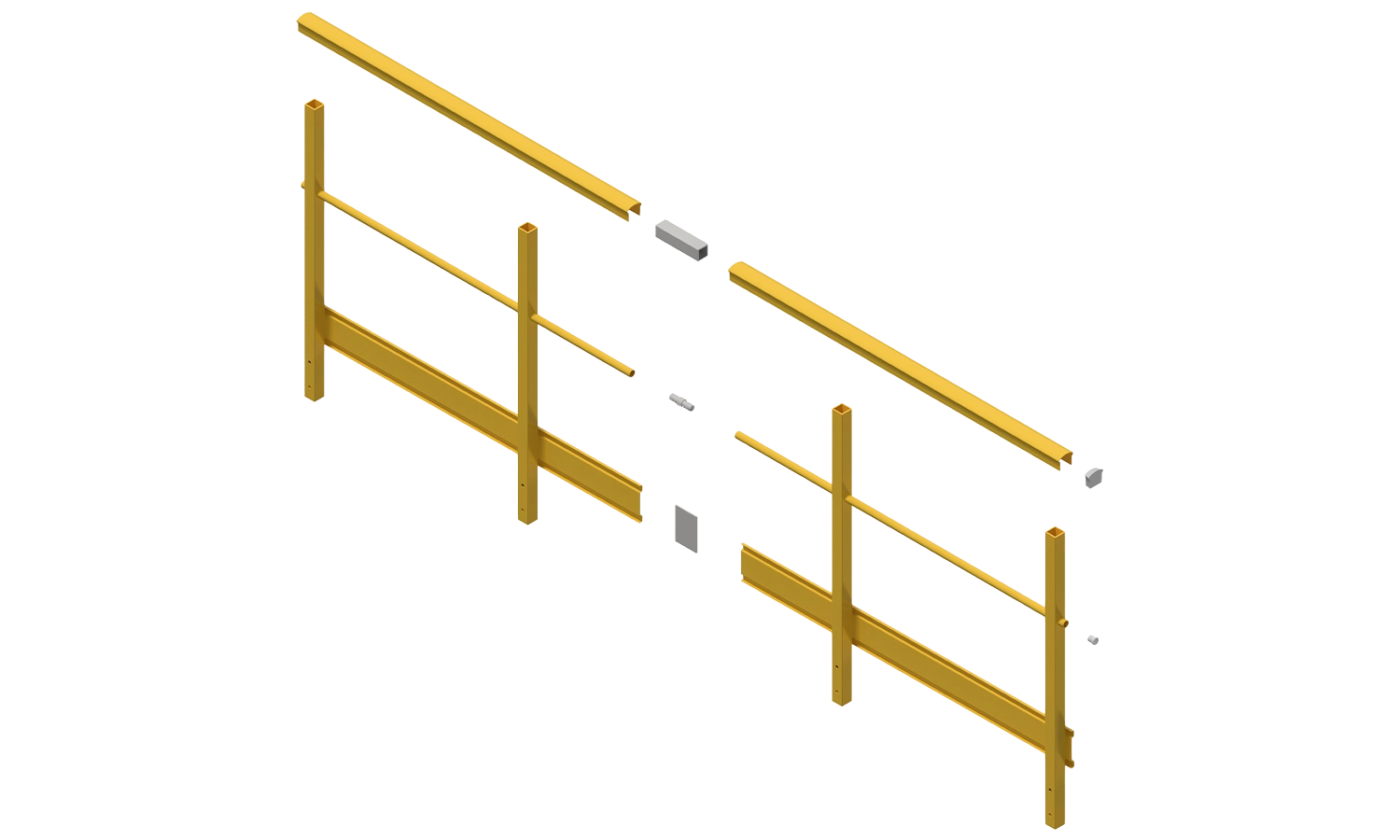

Straight link

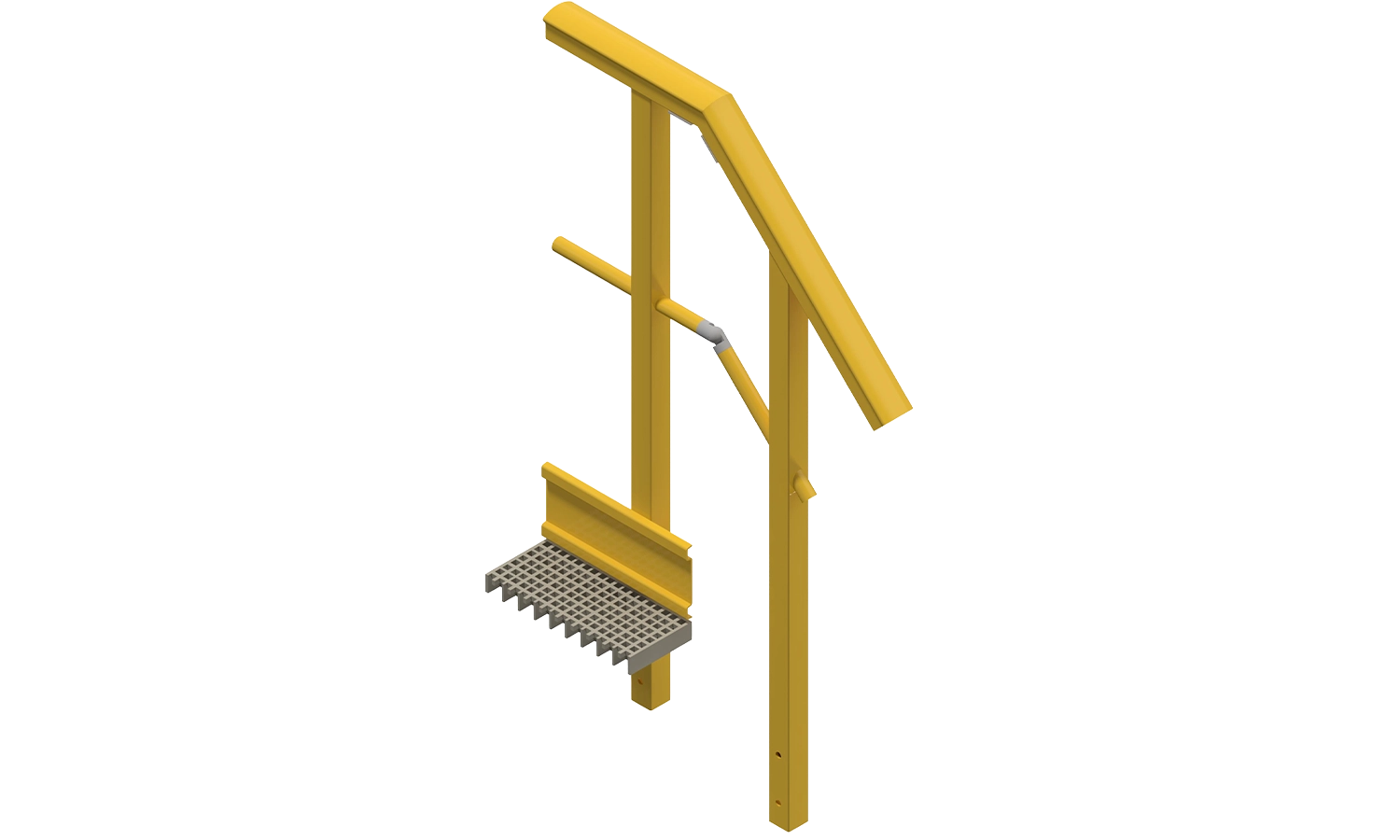

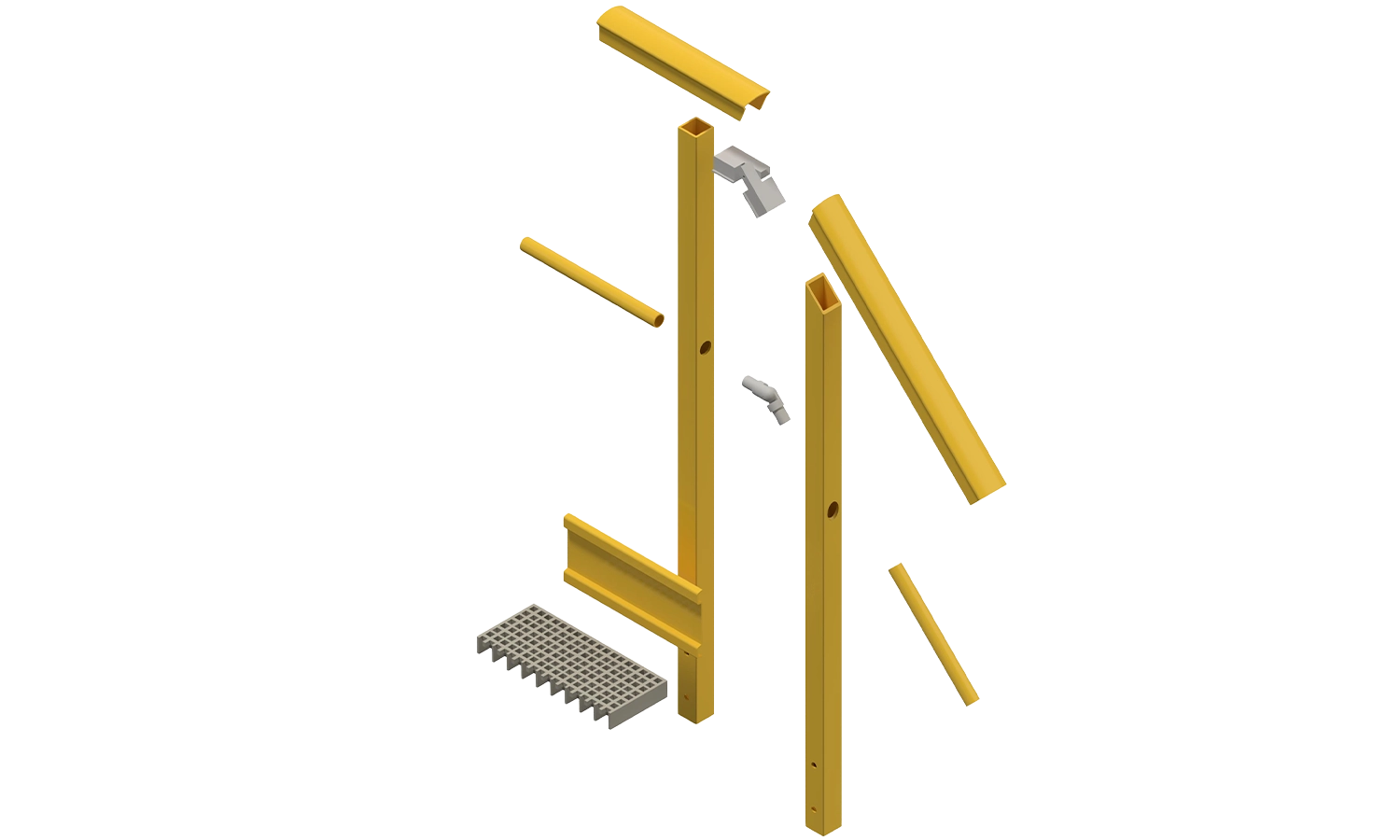

Design at stairs

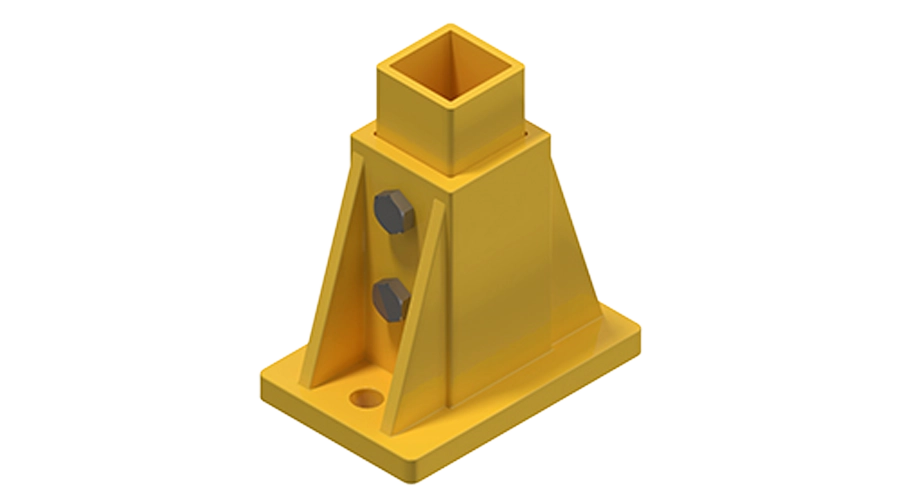

Post foot GRP

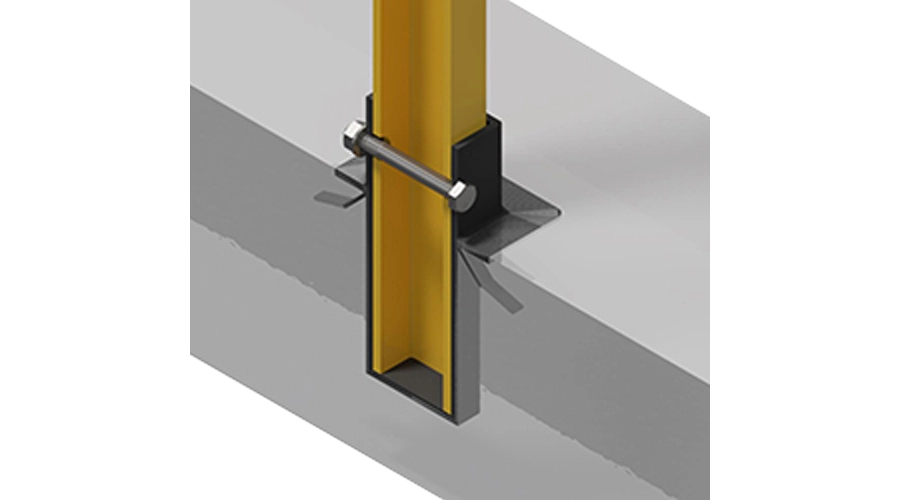

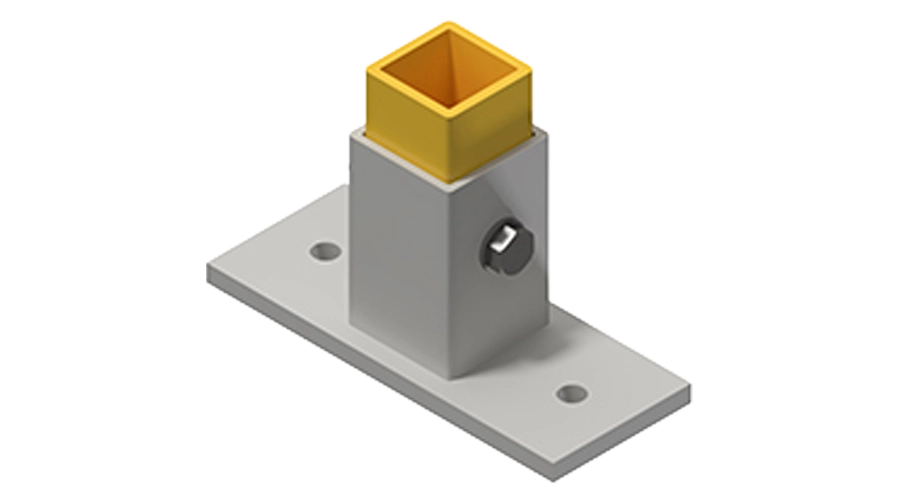

Post foot steel
End-caps
Handrail cap

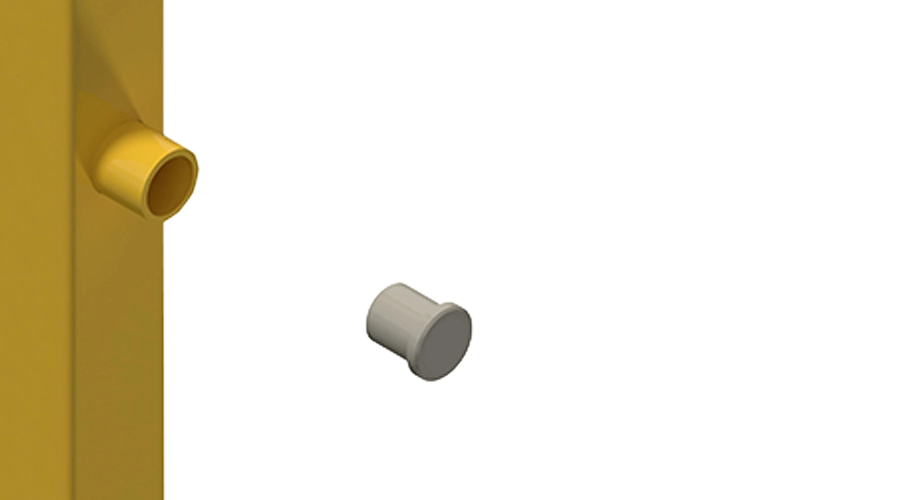

Knee cap
