Gratings

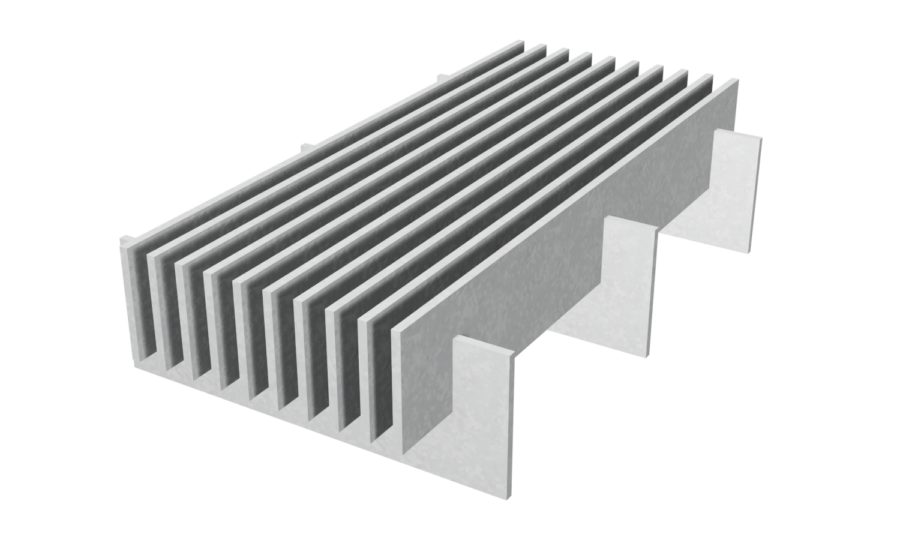

Comb Gratings
MEISER comb gratings are a specialised form of press-locked grating featuring cross bars that project above the bearing bars. This creates a refined, comb-like appearance in which the bearing bars become almost invisible, resulting in a light and elegant architectural design.
Your contact persons GratingsThe spacing and arrangement of the bearing and cross bars can be individually adapted to suit both structural and aesthetic requirements.
Comb gratings are widely used wherever visual appearance is paramount, including interior ventilation covers, heating shafts, premium drainage channels and façade cladding. Their distinctive design also makes them suitable for use as architectural sun-shading elements. Available in a range of materials and surface finishes, comb gratings can be further customised through the use of special bearing bar profiles to accentuate their unique appearance.
Common mesh divisions
| Bearing bar | Cross bar | |||
|---|---|---|---|---|
| 21,00 | 11,1 | 16,7 | 22,2 | 33,3 |
| 22,20 | 11,1 | 16,7 | 22,2 | 33,3 |
| 33,30 | 11,1 | 16,7 | 22,2 | 33,3 |
| 66,60 | 11,1 | 16,7 | 22,2 | 33,3 |
| 99,90 | 11,1 | 16,7 | 22,2 | 33,3 |
Standard bearing bar profiles
| Bearing bar 2 mm | Bearing bar 3 mm |
|---|---|
| 30/2 | 30/3 |
| 35/2 | 35/3 |
| 40/2 | 40/3 |
| 45/2 | 45/3 |
| 50/2 | 50/3 |
Matching accessories
Attachments for Comb Gratings
Hilti clamp – XMGR
High resistance to vibrations, easy installation and therefore significantly shorter installation times characterize this mounting.
Clamp B 10
Consisting of upper part of bracket, hexagon socket screw, lower part of bracket and nut.
Welded-in holed fixing plates
Consist of welded-in perforated plates, the design and position of the perforated plates depend on the load on the grating.
